Century Spring

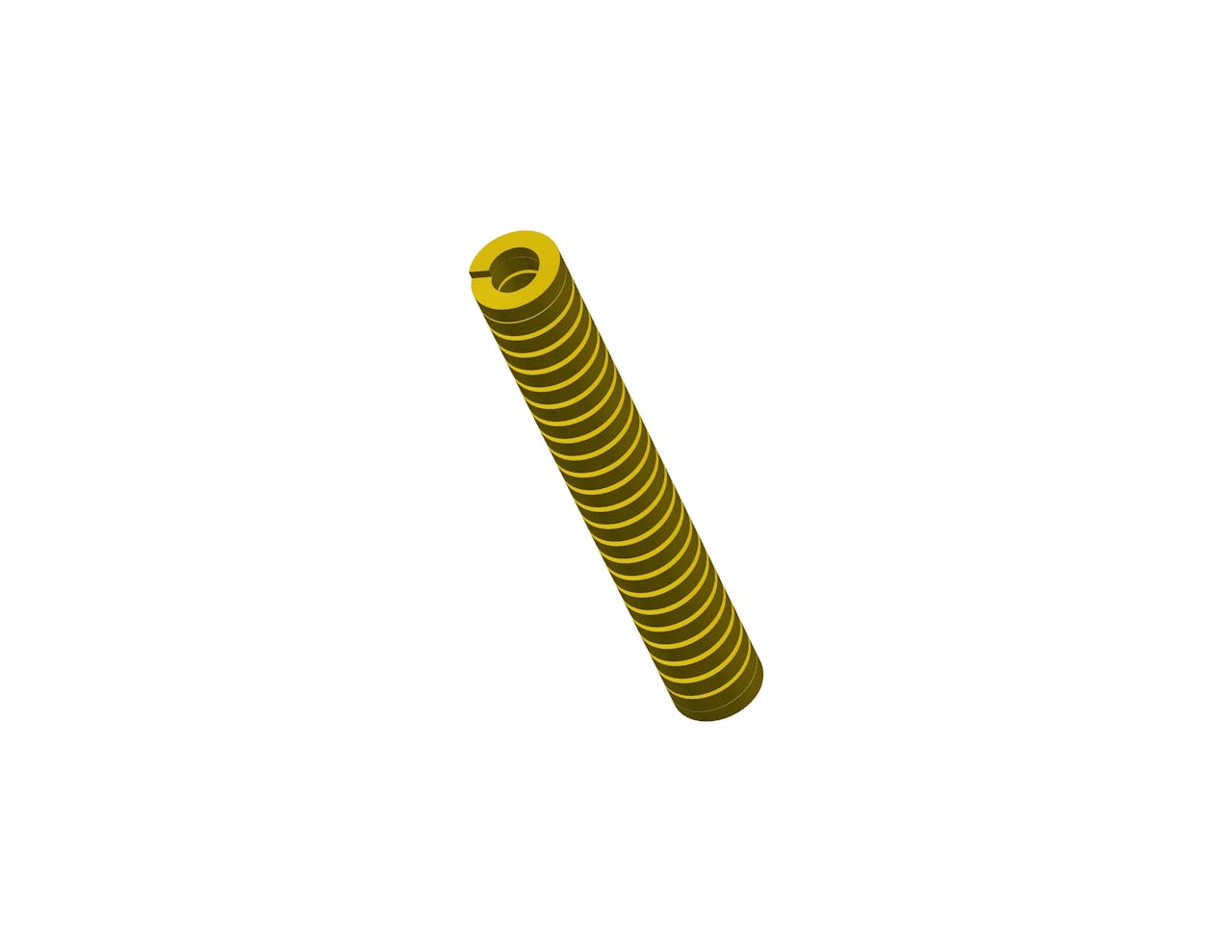

D-9122036CS - 5 Inch Chrome Silicon Die Spring

Inventory Status
Estimated Lead Time

5 Inch Chrome Silicon die spring

Download CAD
Unit System
Specs (in standard)
Label Value
Average Life Deflection Force 251 lb
Brand Century Spring
Deflection For Average Life 0.85 in
Deflection For Long Life 1 in
Display Name D-9122036
Duty Load Extra Heavy
Finish None
Finish Color Yellow
Free Length 5 in
Hole Size 0.75 in
Long Life Deflection Force 295 lb
Material Chrome Silicon
Maximum Deflection 1.25 in
Maximum Deflection Force 369 lb
Measurement Units Standard
Rate 295 lbs/in
Rod Size 0.375 in
SKU D-9122036CS
Wire Diameter 0.16 in x 0.155 in
Specs (in metric)
Label Value
Average Life Deflection Force 113.83 kg
Brand Century Spring
Deflection For Average Life 21.59 mm
Deflection For Long Life 25.4 mm
Display Name D-9122036
Duty Load Extra Heavy
Finish None
Finish Color Yellow
Free Length 127 mm
Hole Size 19.05 mm
Long Life Deflection Force 133.79 kg
Material Chrome Silicon
Maximum Deflection 31.75 mm
Maximum Deflection Force 167.35 kg
Measurement Units Standard
Rate 51.65 N/mm
Rod Size 9.53 mm
SKU D-9122036CS
Wire Diameter 4.06 mm x 3.94 mm
