G-11CS - 0.53" Spring Steel Compression Spring

Inventory:
Estimated Lead Time

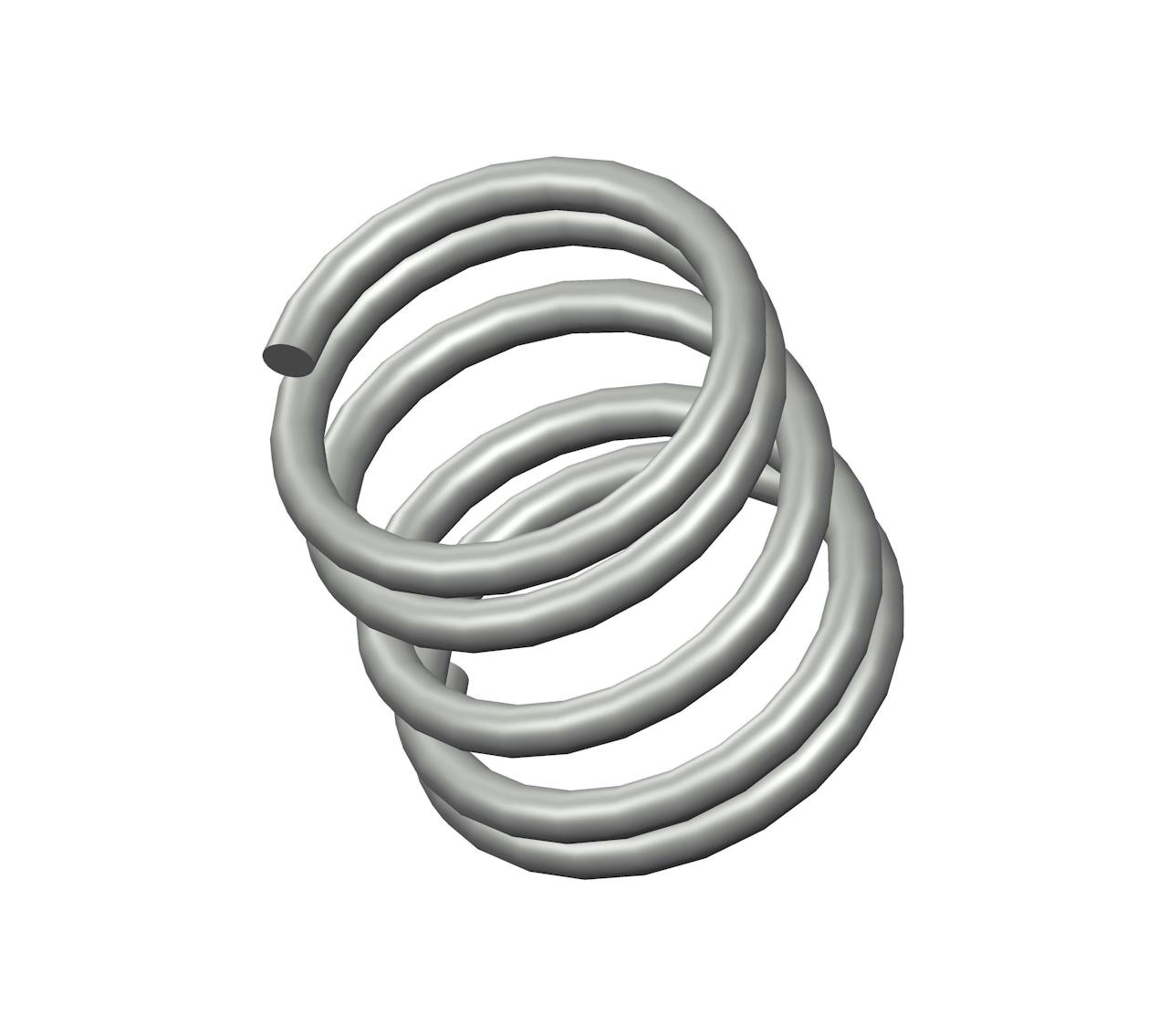

Compression spring manufactured from spring steel with 5 coils and closed ends. This spring features an O.D. of 0.5", and an I.D. of 0.398".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name G-11
Ends Closed
Finish None
Free Length 0.53 in
Inside Diameter 0.398 in
Material Spring Steel
Outside Diameter 0.5 in
Part Type Standard
Rate 36 lbs/in
SKU G-11CS
Solid Length 0.31 in
Suggested Max Deflection 0.23 in
Suggested Max Load 8.1 lbf
Total Coils 5
Wire Diameter 0.051 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name G-11
Ends Closed
Finish None
Free Length 13.46 mm
Inside Diameter 10.11 mm
Material Spring Steel
Outside Diameter 12.7 mm
Part Type Standard
Rate 6.3 N/mm
SKU G-11CS
Solid Length 7.87 mm
Suggested Max Deflection 5.84 mm
Suggested Max Load 36.03 N
Total Coils 5
Wire Diameter 1.3 mm
The compression spring G-11CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality spring steel, the G-11 compression spring design exhibits exceptional tensile strength and resilience.

The G-11 design is manufactured with a free length of 0.53", with an outer diameter of 0.5", an inner diameter of 0.398", and a total of 5 coils, expertly designed to deliver consistent compression characteristics including a rate of 36 lbs/in.

The G-11CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.

In summary, the compression spring G-11 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
