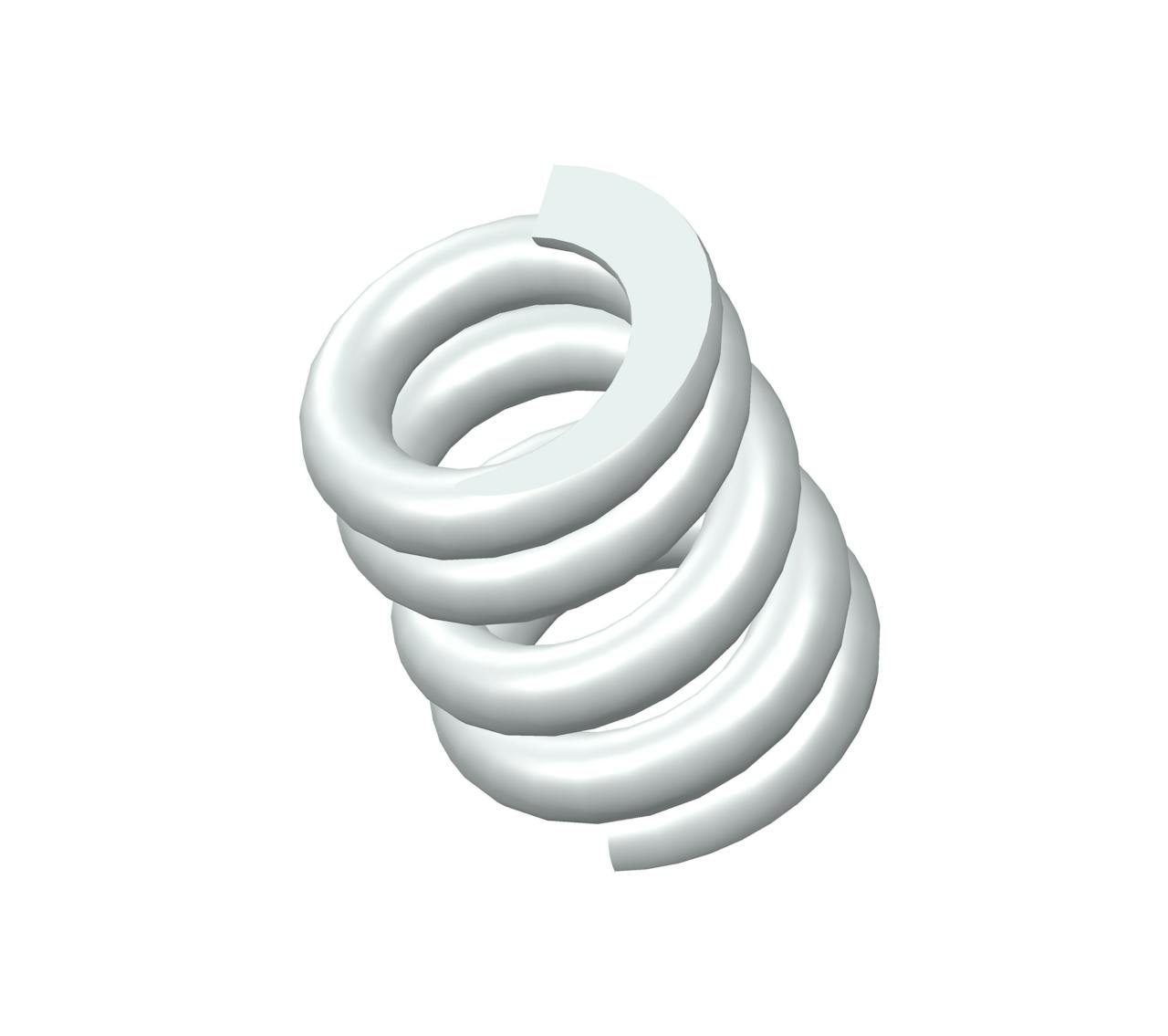

I-98CS - 0.5" 302/304 Stainless Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |
Compression spring manufactured from 302/304 stainless steel with 4.5 coils and closed & ground ends. This spring features an O.D. of 0.406", and an I.D. of 0.242".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | I-98 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 0.5 in |
| Inside Diameter | 0.242 in |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 0.406 in |
| Part Type | Standard |
| Rate | 678 lbs/in |
| SKU | I-98CS |
| Solid Length | 0.37 in |
| Suggested Max Deflection | 0.06 in |
| Suggested Max Load | 40 lbf |
| Total Coils | 4.5 |
| Wire Diameter | 0.082 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | I-98 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 12.7 mm |
| Inside Diameter | 6.15 mm |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 10.31 mm |
| Part Type | Standard |
| Rate | 118.72 N/mm |
| SKU | I-98CS |
| Solid Length | 9.4 mm |
| Suggested Max Deflection | 1.52 mm |
| Suggested Max Load | 177.92 N |
| Total Coils | 4.5 |
| Wire Diameter | 2.08 mm |
The I-98 compression spring is engineered for optimal performance in demanding applications. Constructed from high-quality 302/304 stainless steel and designed with precision and durability in mind, this spring is an essential component for a variety of mechanical systems where reliable force and resilience are paramount.
The I-98CS compression spring is designed with a free length of 0.78" total of 8 coils, and a rate of 1.2 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.
The I-98 spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
The I-98CS compression spring is designed with a free length of 0.78" total of 8 coils, and a rate of 1.2 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.
The I-98 spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
