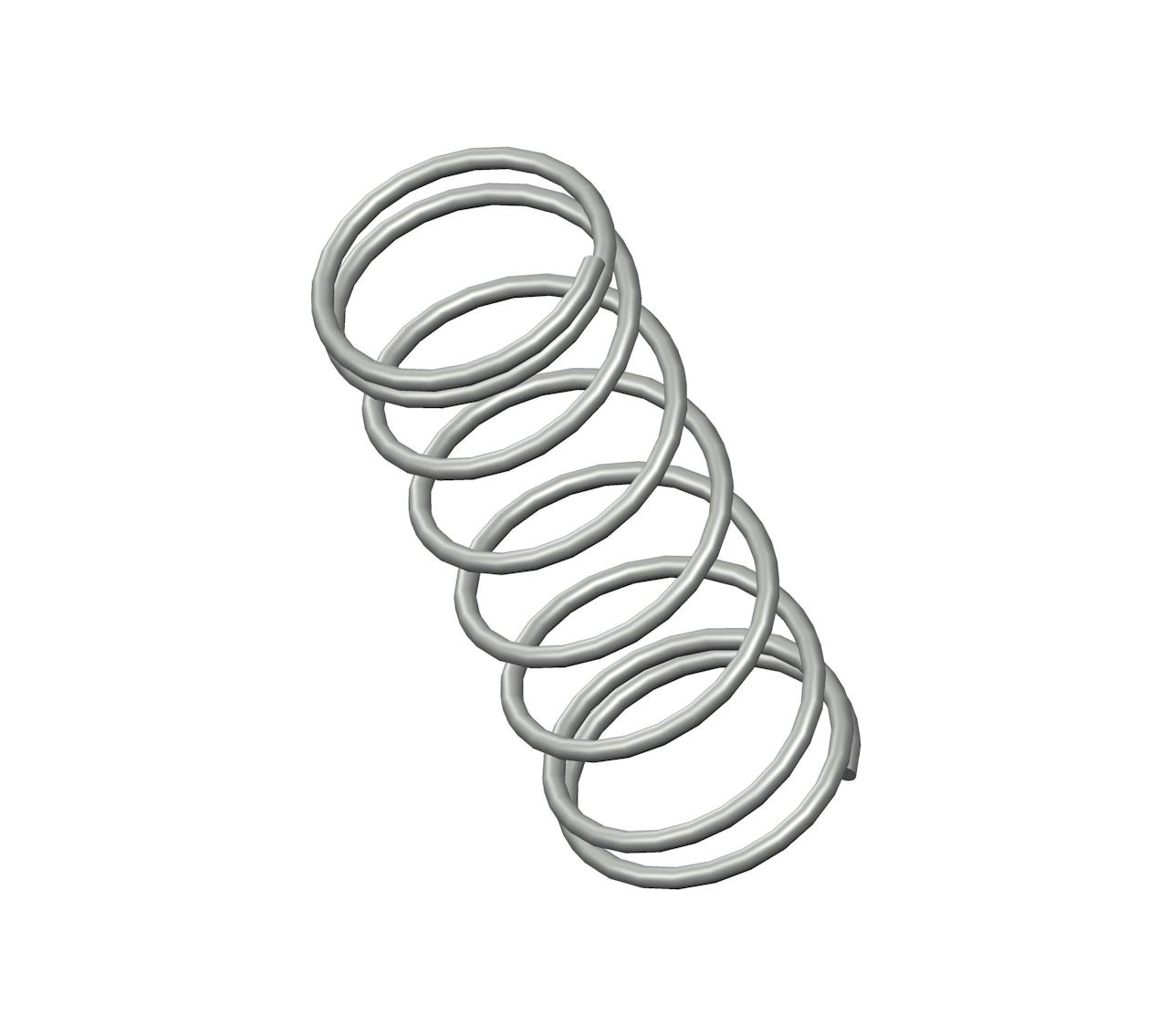

65532SCS - 2.165" 316 Stainless Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |
Compression spring manufactured from 316 stainless steel with 17.254 coils and closed & ground ends. This spring features an O.D. of 0.354", and an I.D. of 0.278".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | 65532S |
| Ends | Closed & Ground |
| Finish | Passivated |
| Free Length | 2.165 in |
| Inside Diameter | 0.278 in |
| Material | 316 Stainless Steel |
| Outside Diameter | 0.354 in |
| Part Type | Metric |
| Rate | 5.415 lbs/in |
| SKU | 65532SCS |
| Solid Length | 0.656 in |
| Suggested Max Deflection | 0.894 in |
| Suggested Max Load | 4.841 lbf |
| Total Coils | 17.254 |
| Wire Diameter | 0.038 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | 65532S |
| Ends | Closed & Ground |
| Finish | Passivated |
| Free Length | 54.99 mm |
| Inside Diameter | 7.06 mm |
| Material | 316 Stainless Steel |
| Outside Diameter | 8.99 mm |
| Part Type | Metric |
| Rate | 0.95 N/mm |
| SKU | 65532SCS |
| Solid Length | 16.66 mm |
| Suggested Max Deflection | 22.71 mm |
| Suggested Max Load | 21.53 N |
| Total Coils | 17.25 |
| Wire Diameter | 0.97 mm |
The compression spring 65532SCS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality 316 stainless steel, the 65532S compression spring design exhibits exceptional tensile strength and resilience.
The 65532S design is manufactured with a free length of 2.165", with an outer diameter of 0.354", an inner diameter of 0.278", and a total of 17.254 coils, expertly designed to deliver consistent compression characteristics including a rate of 5.415 lbs/in.
The 65532SCS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring 65532S design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
The 65532S design is manufactured with a free length of 2.165", with an outer diameter of 0.354", an inner diameter of 0.278", and a total of 17.254 coils, expertly designed to deliver consistent compression characteristics including a rate of 5.415 lbs/in.
The 65532SCS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring 65532S design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
