Century Spring

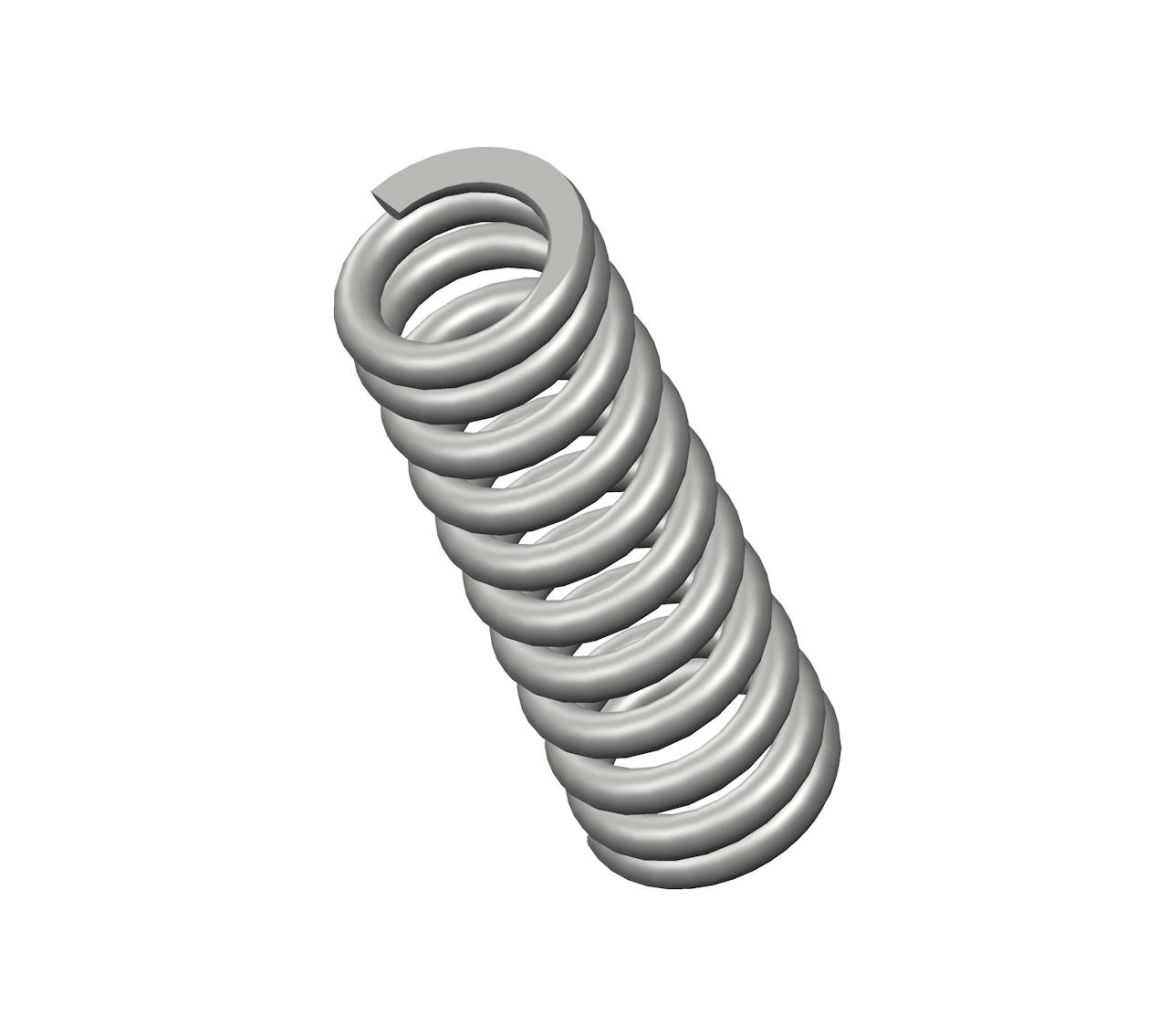

4186CS - 1.75" Spring Steel Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from spring steel with 8 coils and closed ends. This spring features an O.D. of 0.656", and an I.D. of 0.562".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 4186
Ends Closed
Finish Zinc
Free Length 1.75 in
Inside Diameter 0.562 in
Material Spring Steel
Outside Diameter 0.656 in
Part Type Standard
Rate 5.2 lbs/in
SKU 4186CS
Solid Length 0.42 in
Suggested Max Deflection 1.2 in
Suggested Max Load 6.2 lbf
Total Coils 8
Wire Diameter 0.047 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 4186
Ends Closed
Finish Zinc
Free Length 44.45 mm
Inside Diameter 14.27 mm
Material Spring Steel
Outside Diameter 16.66 mm
Part Type Standard
Rate 0.91 N/mm
SKU 4186CS
Solid Length 10.67 mm
Suggested Max Deflection 30.48 mm
Suggested Max Load 27.58 N
Total Coils 8
Wire Diameter 1.19 mm
The 4186CS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.047" diameter spring steel, the 4186 spring design exhibits reliable strength across its 8 active coils, withstanding repeated compression cycles with a maximum load of 6.2 lbf without succumbing to fatigue.

We manufacture the 4186 design to provide a compression spring that is 1.75" long at rest and provides a consistent rate of 5.2 lbs/in along its recommended maximum of 1.2" deflection. For best results, your application should fully accommodate the inner (0.562") and outer (0.656") diameters of this spring and be designed for its closed end configuration.
