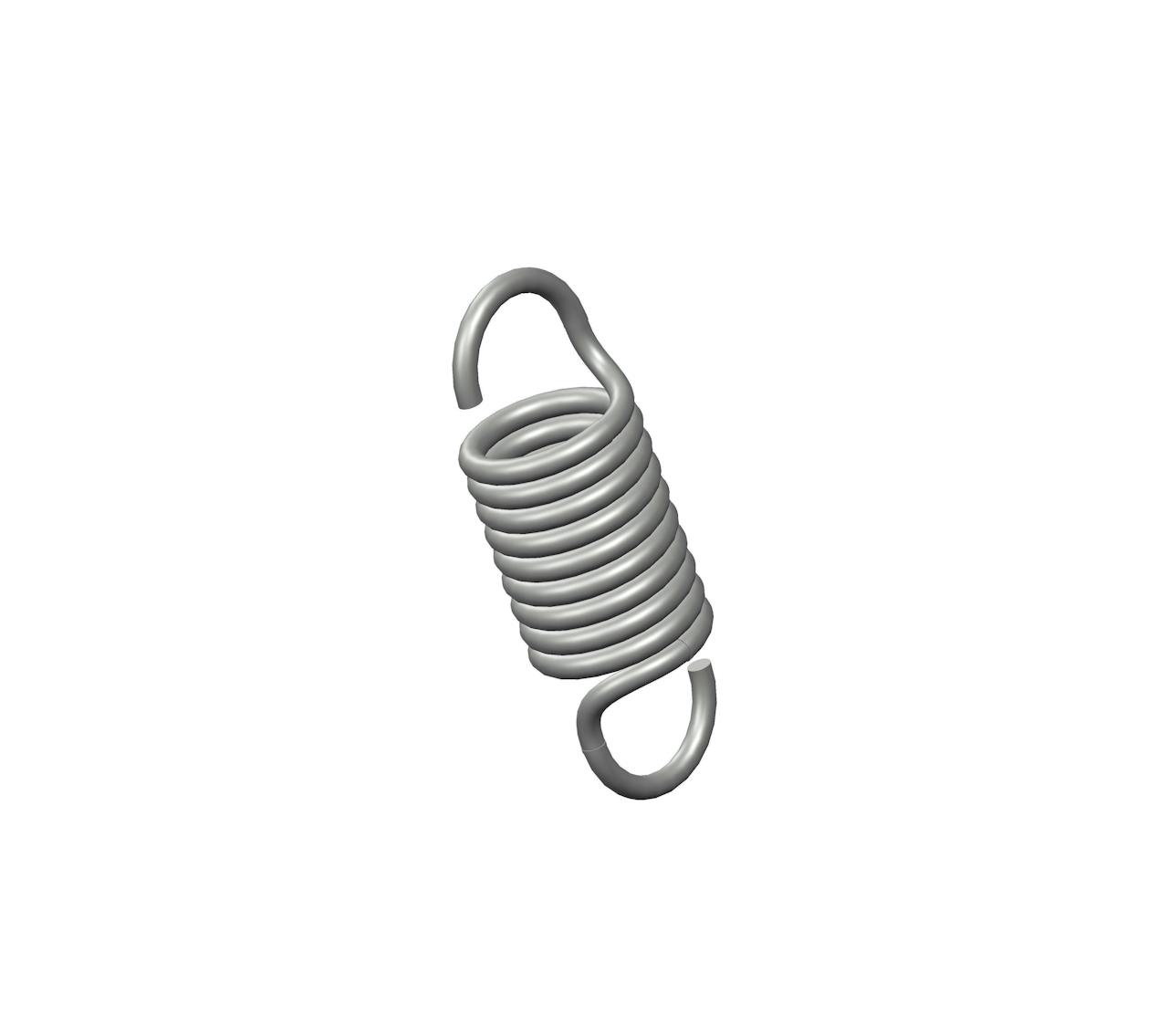

5824CS - 2.41 Inch High Carbon Steel Extension Spring

Inventory:
Estimated Lead Time

Regular extension spring in High Carbon Steel. This spring features an O.D. of 0.75 Inch and an initial tension of 11 Pound.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 5824
Ends Machine Hook
Finish Zinc
Initial Tension 11 lb
Length 2.41 in
Material High Carbon Steel
Outside Diameter 0.75 in
Part Type Standard
Rate 47 lbs/in
SKU 5824CS
Sugg Max Deflection 0.82 in
Sugg Max Load 50 lbf
Wire Diameter 0.105 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 5824
Ends Machine Hook
Finish Zinc
Initial Tension 4.99 kg
Length 61.21 mm
Material High Carbon Steel
Outside Diameter 19.05 mm
Part Type Standard
Rate 8.23 N/mm
SKU 5824CS
Sugg Max Deflection 20.83 mm
Sugg Max Load 222.4 N
Wire Diameter 2.67 mm
