Century Spring

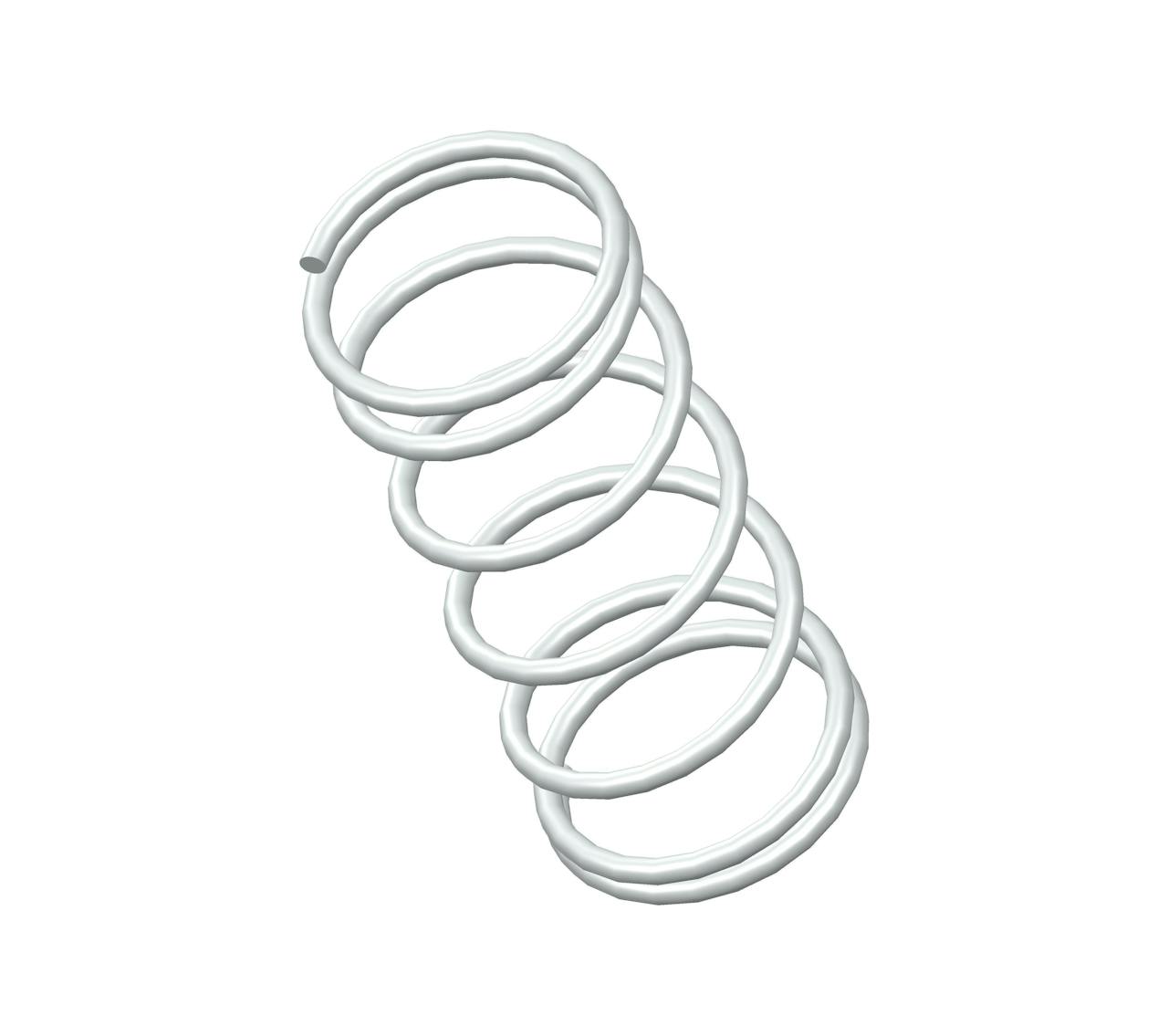

61833SCS - 1.5" 316 Stainless Steel Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from 316 stainless steel with 14.29 coils and closed & ground ends. This spring features an O.D. of 0.3", and an I.D. of 0.23".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 61833S
Ends Closed & Ground
Finish Passivated
Free Length 1.5 in
Inside Diameter 0.23 in
Material 316 Stainless Steel
Outside Diameter 0.3 in
Part Type Standard
Rate 8.2 lbs/in
SKU 61833SCS
Solid Length 0.518 in
Suggested Max Deflection 0.535 in
Suggested Max Load 4.387 lbf
Total Coils 14.29
Wire Diameter 0.035 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 61833S
Ends Closed & Ground
Finish Passivated
Free Length 38.1 mm
Inside Diameter 5.84 mm
Material 316 Stainless Steel
Outside Diameter 7.62 mm
Part Type Standard
Rate 1.44 N/mm
SKU 61833SCS
Solid Length 13.16 mm
Suggested Max Deflection 13.59 mm
Suggested Max Load 19.51 N
Total Coils 14.29
Wire Diameter 0.89 mm
The 61833SCS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.035" diameter 316 stainless steel, the 61833S spring design exhibits reliable strength across its 14.29 active coils, withstanding repeated compression cycles with a maximum load of 4.387 lbf without succumbing to fatigue.

We manufacture the 61833S design to provide a compression spring that is 1.5" long at rest and provides a consistent rate of 8.2 lbs/in along its recommended maximum of 0.535" deflection. For best results, your application should fully accommodate the inner (0.23") and outer (0.3") diameters of this spring and be designed for its closed & ground end configuration.
