Century Spring

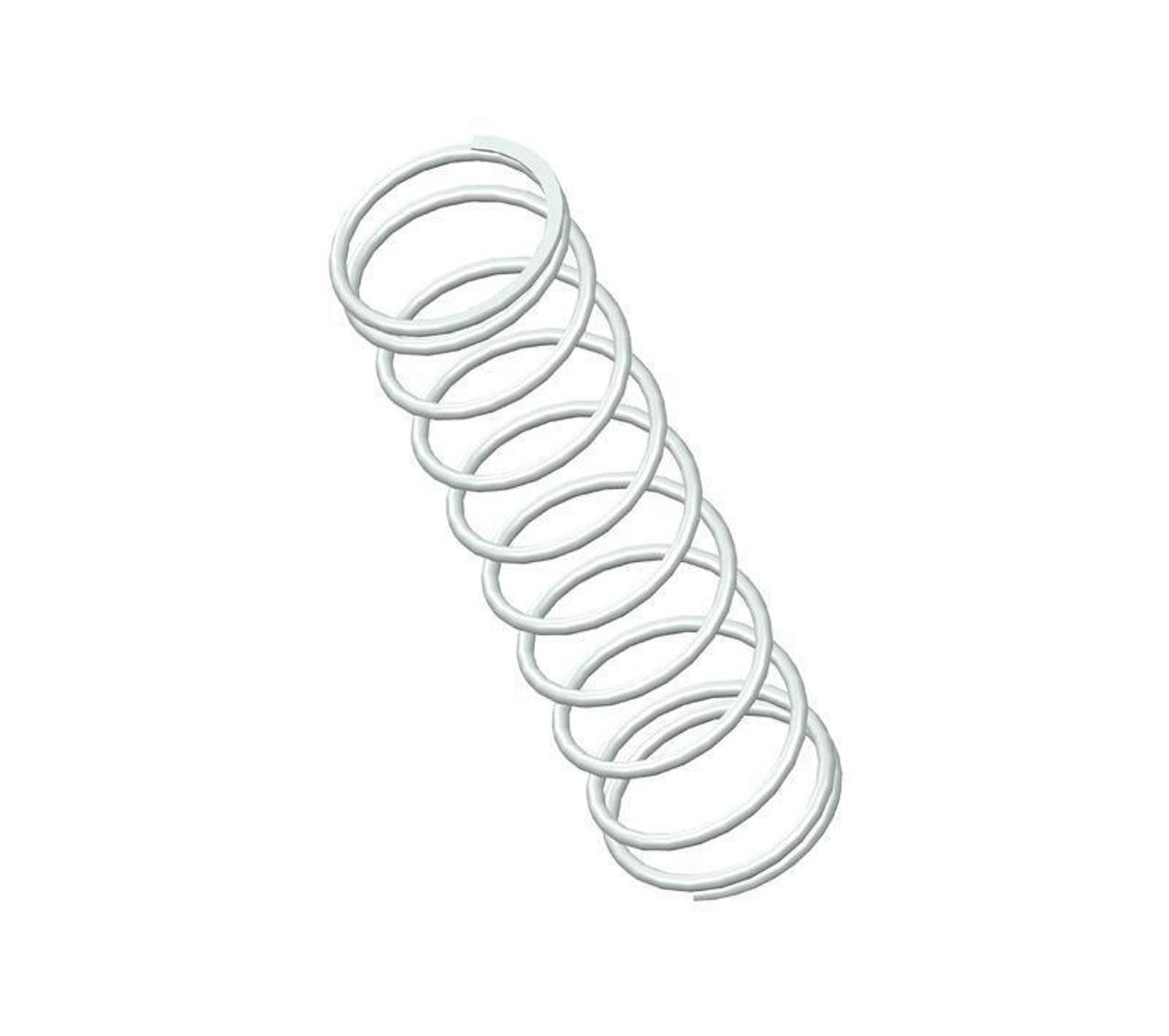

72635SCS - 4.5" 302/304 Stainless Steel Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from 302/304 stainless steel with 10.5 coils and closed & ground ends. This spring features an O.D. of 1.225", and an I.D. of 1.055".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 72635S
Ends Closed & Ground
Finish None
Free Length 4.5 in
Inside Diameter 1.055 in
Material 302/304 Stainless Steel
Outside Diameter 1.225 in
Part Type Standard
Rate 5.1 lbs/in
SKU 72635SCS
Solid Length 0.89 in
Suggested Max Deflection 3.2 in
Suggested Max Load 16 lbf
Total Coils 10.5
Wire Diameter 0.085 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 72635S
Ends Closed & Ground
Finish None
Free Length 114.3 mm
Inside Diameter 26.8 mm
Material 302/304 Stainless Steel
Outside Diameter 31.12 mm
Part Type Standard
Rate 0.89 N/mm
SKU 72635SCS
Solid Length 22.61 mm
Suggested Max Deflection 81.28 mm
Suggested Max Load 71.17 N
Total Coils 10.5
Wire Diameter 2.16 mm
The 72635S compression spring is engineered for optimal performance in demanding applications. Constructed from high-quality 302/304 stainless steel and designed with precision and durability in mind, this spring is an essential component for a variety of mechanical systems where reliable force and resilience are paramount.

The 72635SCS compression spring is designed with a free length of 4.5" total of 10.5 coils, and a rate of 6 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.

The 72635S spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
