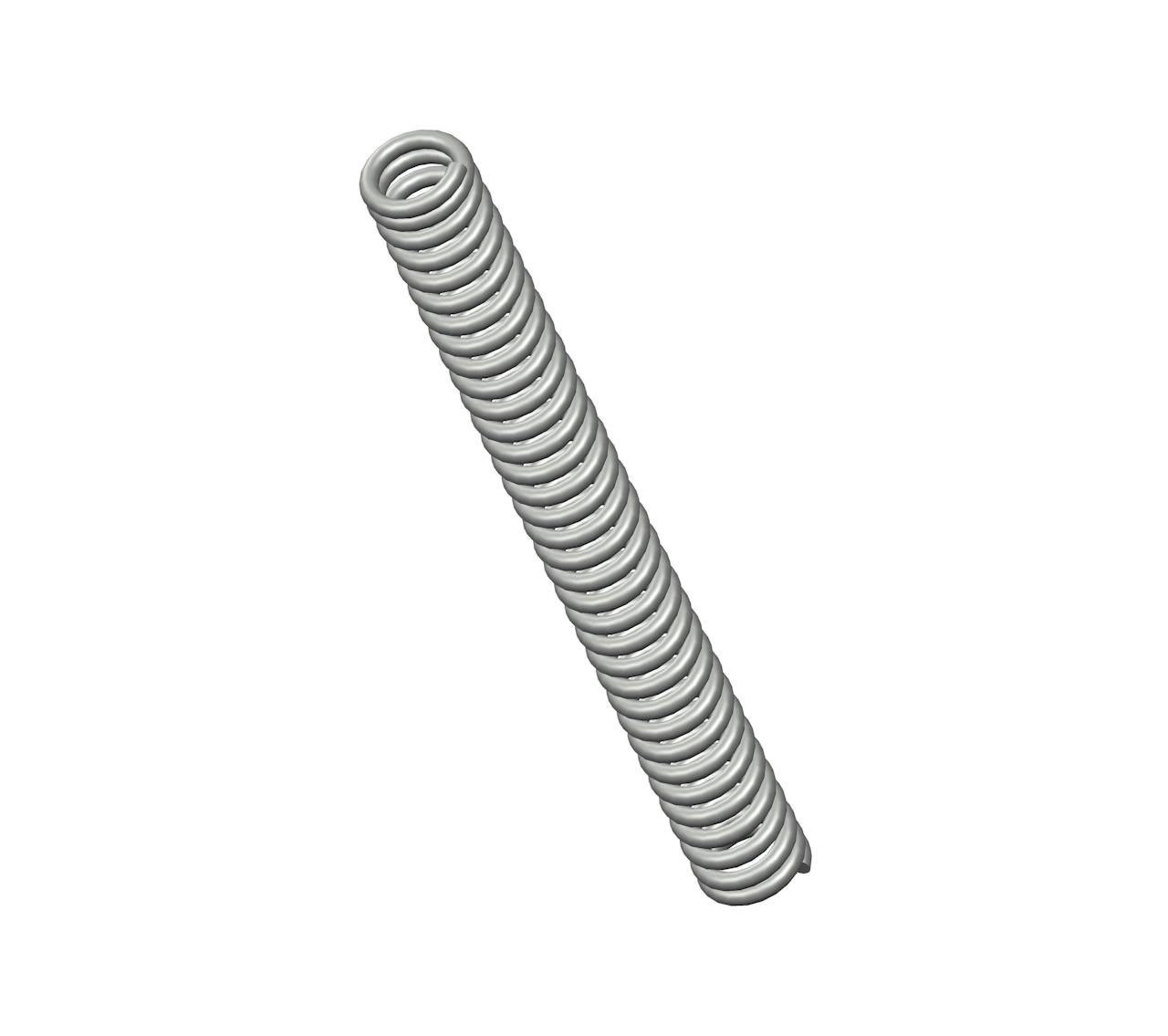

12476CS - 4.25" Spring Steel Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from spring steel with 34 coils and closed ends. This spring features an O.D. of 0.437", and an I.D. of 0.289".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 12476
Ends Closed
Finish Zinc
Free Length 4.25 in
Inside Diameter 0.289 in
Material Spring Steel
Outside Diameter 0.437 in
Part Type Standard
Rate 28 lbs/in
SKU 12476CS
Solid Length 2.59 in
Suggested Max Deflection 1.1 in
Suggested Max Load 30 lbf
Total Coils 34
Wire Diameter 0.074 in
The compression spring 12476CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality spring steel, the 12476 compression spring design exhibits exceptional tensile strength and resilience.

The 12476 design is manufactured with a free length of 4.25", with an outer diameter of 0.437", an inner diameter of 0.289", and a total of 34 coils, expertly designed to deliver consistent compression characteristics including a rate of 28 lbs/in.

The 12476CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.

In summary, the compression spring 12476 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
