I-58CS - 1.63" 302/304 Stainless Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |

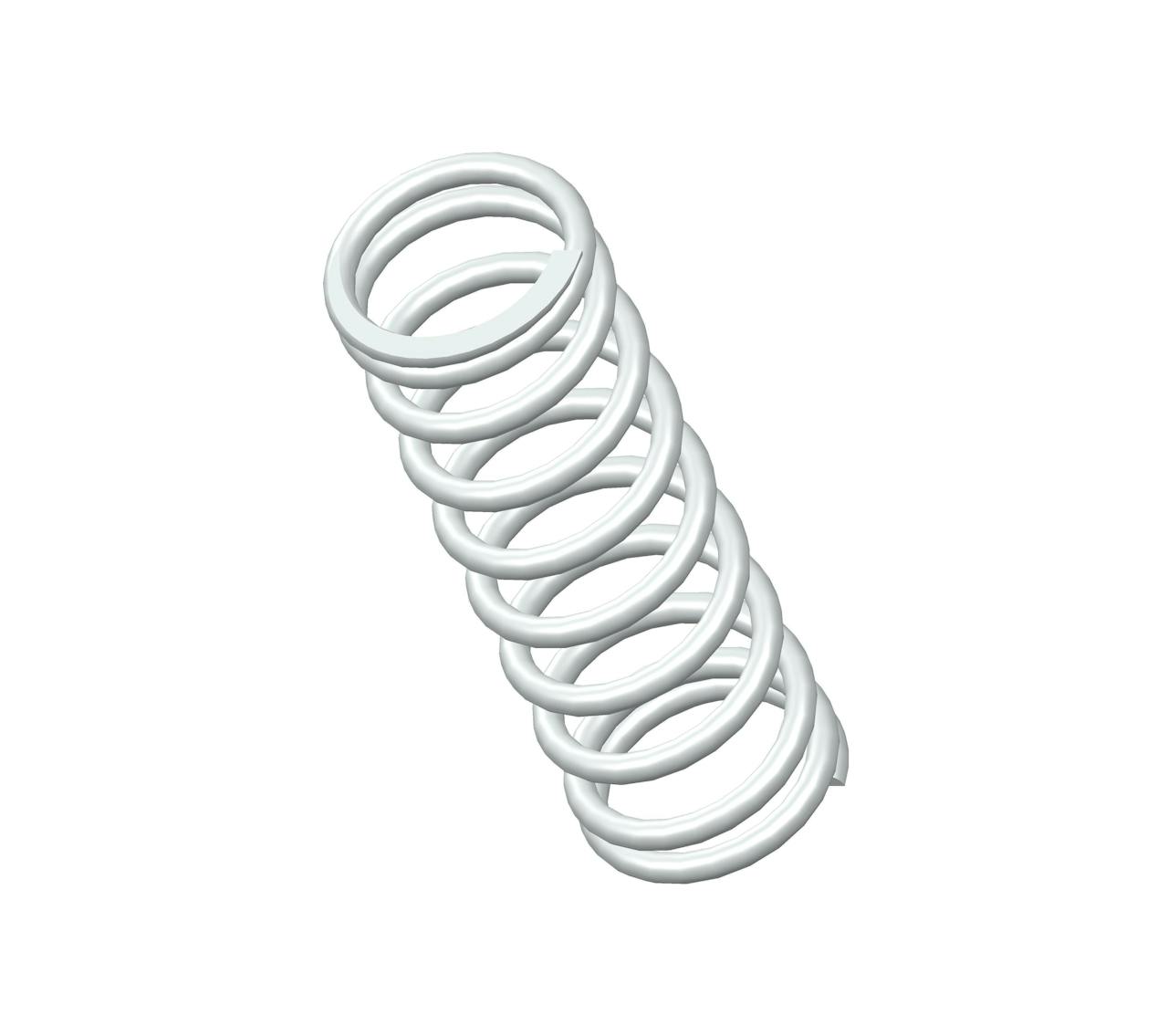

Compression spring manufactured from 302/304 stainless steel with 10 coils and closed & ground ends. This spring features an O.D. of 0.531", and an I.D. of 0.411".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | I-58 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 1.63 in |
| Inside Diameter | 0.411 in |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 0.531 in |
| Part Type | Standard |
| Rate | 19 lbs/in |
| SKU | I-58CS |
| Solid Length | 0.6 in |
| Suggested Max Deflection | 0.7 in |
| Suggested Max Load | 14 lbf |
| Total Coils | 10 |
| Wire Diameter | 0.06 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | I-58 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 41.4 mm |
| Inside Diameter | 10.44 mm |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 13.49 mm |
| Part Type | Standard |
| Rate | 3.33 N/mm |
| SKU | I-58CS |
| Solid Length | 15.24 mm |
| Suggested Max Deflection | 17.78 mm |
| Suggested Max Load | 62.27 N |
| Total Coils | 10 |
| Wire Diameter | 1.52 mm |
The compression spring I-58CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality 302/304 stainless steel, the I-58 compression spring design exhibits exceptional tensile strength and resilience.
The I-58 design is manufactured with a free length of 1.63", with an outer diameter of 0.531", an inner diameter of 0.411", and a total of 10 coils, expertly designed to deliver consistent compression characteristics including a rate of 19 lbs/in.
The I-58CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring I-58 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
