Century Spring

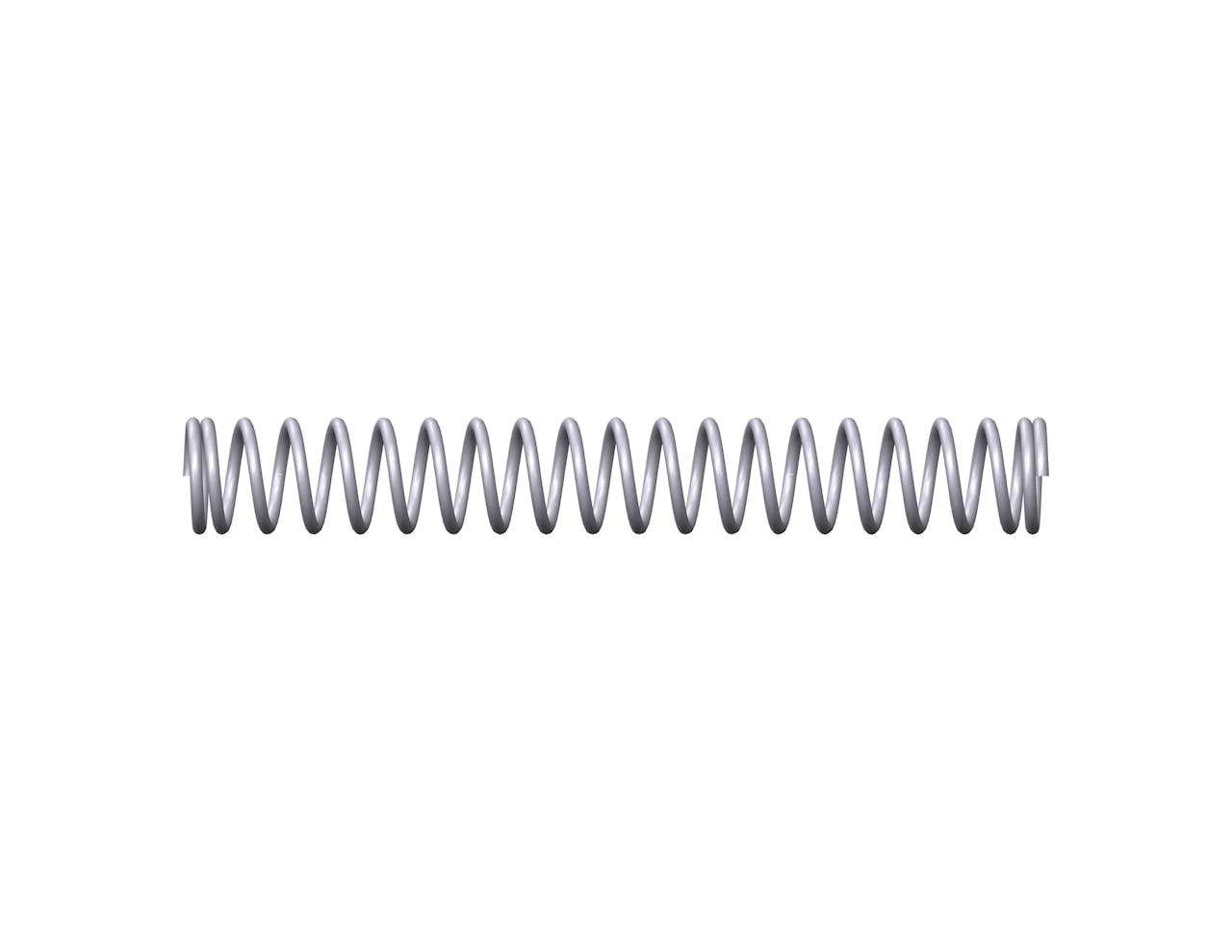

75033CS - 0.524" Music Wire Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from music wire with 20.5 coils and closed ends. This spring features an O.D. of 0.071", and an I.D. of 0.055".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 75033
Ends Closed
Finish None
Free Length 0.524 in
Inside Diameter 0.055 in
Material Music Wire
Outside Diameter 0.071 in
Part Type Metric
Rate 1.273 lbs/in
SKU 75033CS
Solid Length 0.169 in
Suggested Max Deflection 0.355 in
Suggested Max Load 0.452 lbf
Total Coils 20.5
Wire Diameter 0.008 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 75033
Ends Closed
Finish None
Free Length 13.31 mm
Inside Diameter 1.4 mm
Material Music Wire
Outside Diameter 1.8 mm
Part Type Metric
Rate 0.22 N/mm
SKU 75033CS
Solid Length 4.29 mm
Suggested Max Deflection 9.02 mm
Suggested Max Load 2.01 N
Total Coils 20.5
Wire Diameter 0.2 mm
The 75033CS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.008" diameter music wire, the 75033 spring design exhibits reliable strength across its 20.5 active coils, withstanding repeated compression cycles with a maximum load of 0.452 lbf without succumbing to fatigue.

We manufacture the 75033 design to provide a compression spring that is 0.524" long at rest and provides a consistent rate of 1.273 lbs/in along its recommended maximum of 0.355" deflection. For best results, your application should fully accommodate the inner (0.055") and outer (0.071") diameters of this spring and be designed for its closed end configuration.
