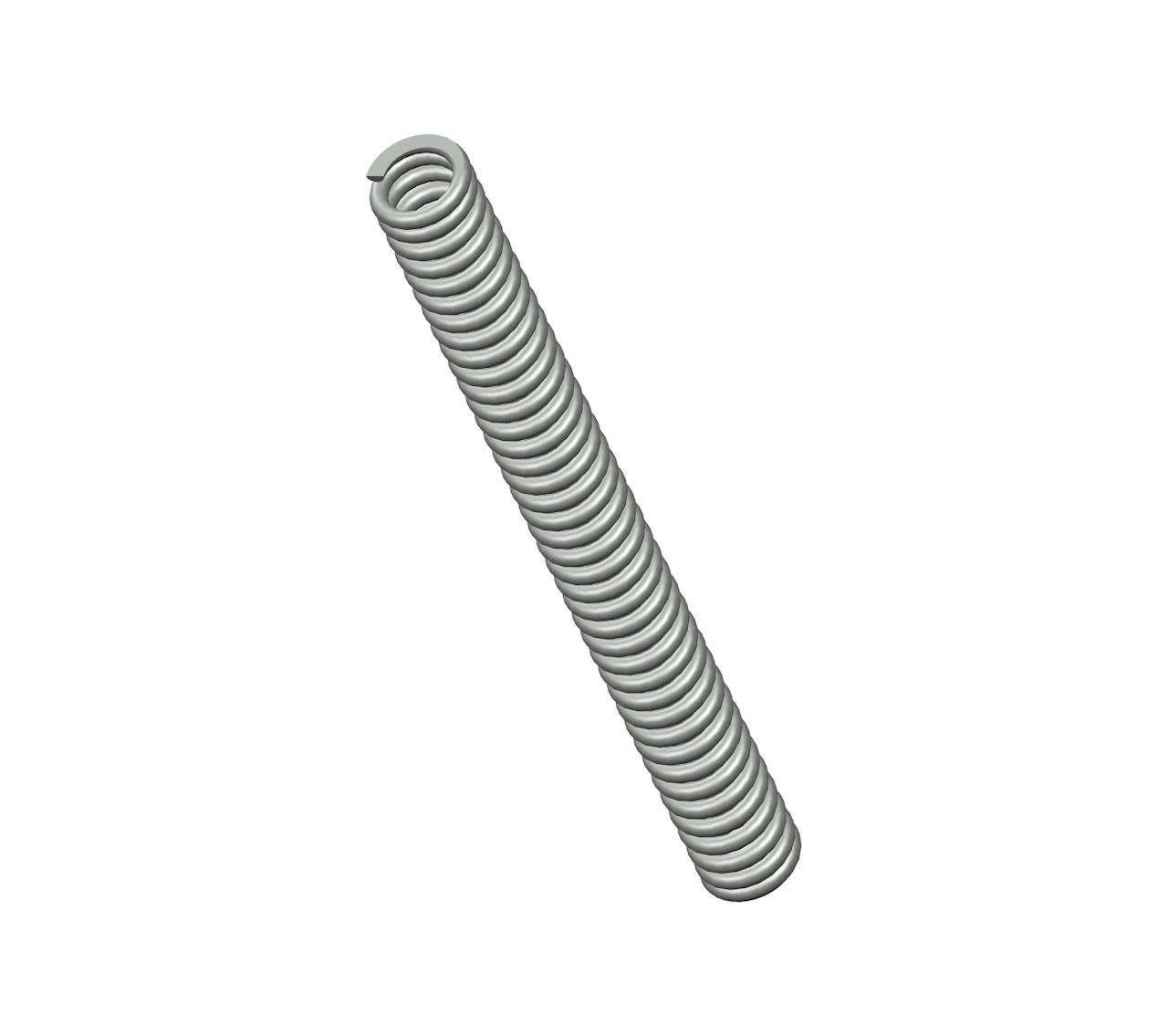

12210CS - 3.75" Spring Steel Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from spring steel with 39 coils and closed & ground ends. This spring features an O.D. of 0.375", and an I.D. of 0.245".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 12210
Ends Closed & Ground
Finish None
Free Length 3.75 in
Inside Diameter 0.245 in
Material Spring Steel
Outside Diameter 0.375 in
Part Type Standard
Rate 23 lbs/in
SKU 12210CS
Solid Length 2.54 in
Suggested Max Deflection 1.1 in
Suggested Max Load 25 lbf
Total Coils 39
Wire Diameter 0.065 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 12210
Ends Closed & Ground
Finish None
Free Length 95.25 mm
Inside Diameter 6.22 mm
Material Spring Steel
Outside Diameter 9.53 mm
Part Type Standard
Rate 4.03 N/mm
SKU 12210CS
Solid Length 64.52 mm
Suggested Max Deflection 27.94 mm
Suggested Max Load 111.2 N
Total Coils 39
Wire Diameter 1.65 mm
The 12210CS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.065" diameter spring steel, the 12210 spring design exhibits reliable strength across its 39 active coils, withstanding repeated compression cycles with a maximum load of 25 lbf without succumbing to fatigue.

We manufacture the 12210 design to provide a compression spring that is 3.75" long at rest and provides a consistent rate of 23 lbs/in along its recommended maximum of 1.1" deflection. For best results, your application should fully accommodate the inner (0.245") and outer (0.375") diameters of this spring and be designed for its closed & ground end configuration.
