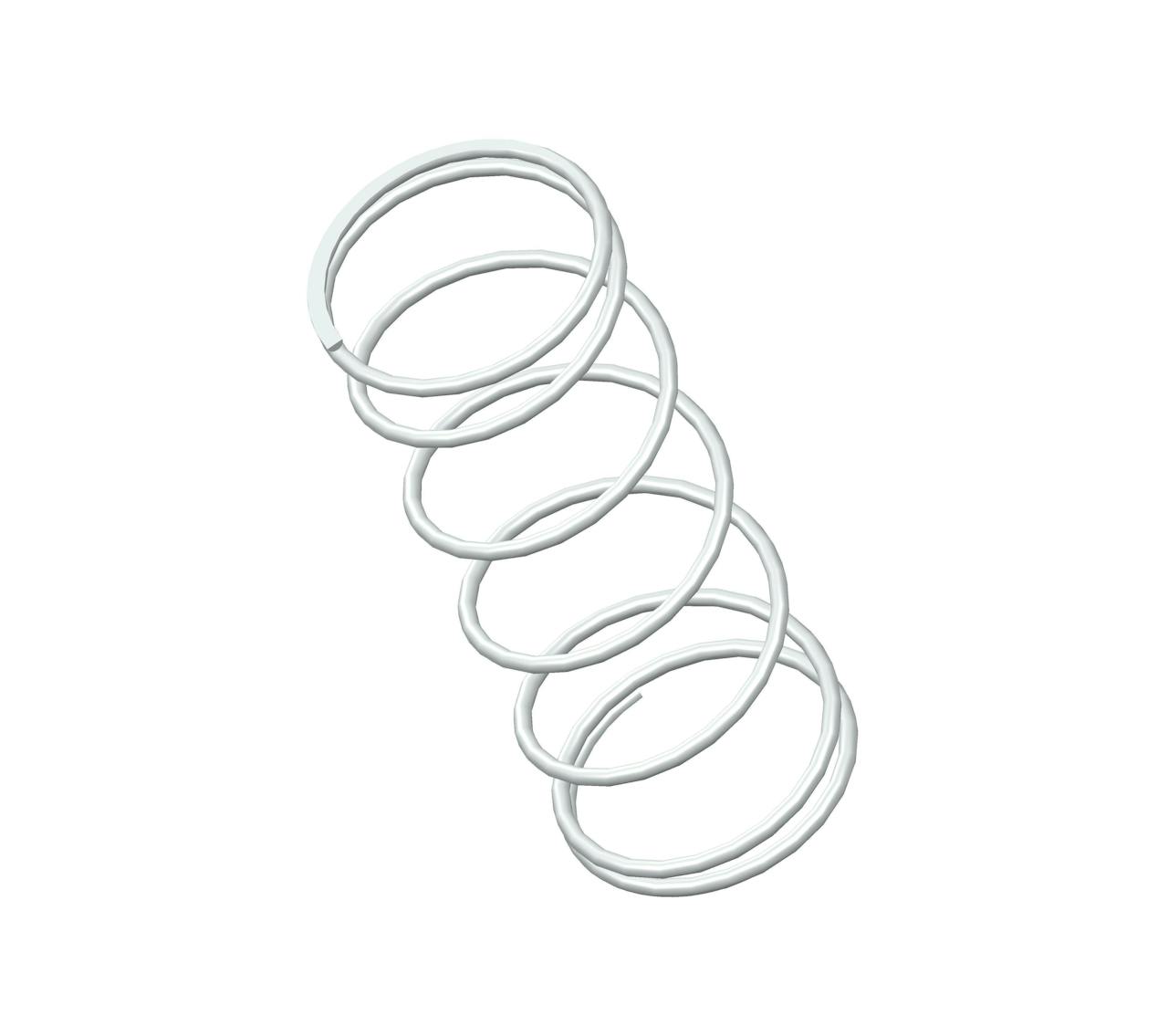

S-1625CS - 3.25" 302/304 Stainless Steel Compression Spring

Inventory:
Estimated Lead Time

Compression spring manufactured from 302/304 stainless steel with 7.25 coils and closed ends. This spring features an O.D. of 1.25", and an I.D. of 1.106".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name S-1625
Ends Closed
Finish None
Free Length 3.25 in
Inside Diameter 1.106 in
Material 302/304 Stainless Steel
Outside Diameter 1.25 in
Part Type Standard
Rate 3.9 lbs/in
SKU S-1625CS
Solid Length 0.59 in
Suggested Max Deflection 2.5 in
Suggested Max Load 9.7 lbf
Total Coils 7.25
Wire Diameter 0.072 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name S-1625
Ends Closed
Finish None
Free Length 82.55 mm
Inside Diameter 28.09 mm
Material 302/304 Stainless Steel
Outside Diameter 31.75 mm
Part Type Standard
Rate 0.68 N/mm
SKU S-1625CS
Solid Length 14.99 mm
Suggested Max Deflection 63.5 mm
Suggested Max Load 43.15 N
Total Coils 7.25
Wire Diameter 1.83 mm
The S-1625 compression spring is engineered for optimal performance in demanding applications. Constructed from high-quality 302/304 stainless steel and designed with precision and durability in mind, this spring is an essential component for a variety of mechanical systems where reliable force and resilience are paramount.

The S-1625CS compression spring is designed with a free length of 1.22" total of 6 coils, and a rate of 3 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.

The S-1625 spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
