Century Spring

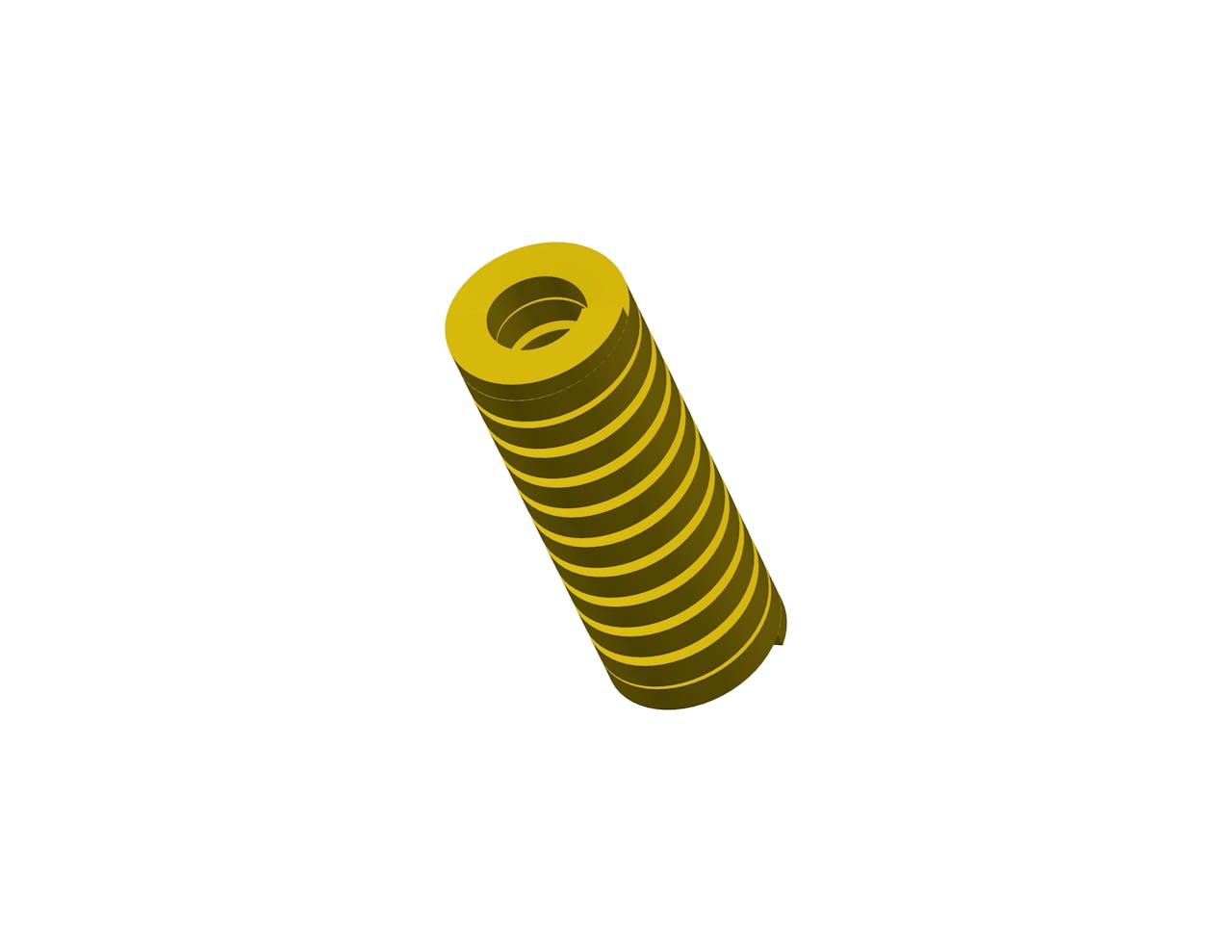

D-9322236CS - 5.5 Inch Chrome Silicon Die Spring

Inventory Status
Estimated Lead Time

5.5 Inch Chrome Silicon die spring

Download CAD
Unit System
Specs (in standard)
Label Value
Average Life Deflection Force 1509 lb
Brand Century Spring
Deflection For Average Life 0.94 in
Deflection For Long Life 1.1 in
Display Name D-9322236
Duty Load Extra Heavy
Finish None
Finish Color Yellow
Free Length 5.5 in
Hole Size 2 in
Long Life Deflection Force 1775 lb
Material Chrome Silicon
Maximum Deflection 1.38 in
Maximum Deflection Force 2219 lb
Measurement Units Standard
Rate 1610 lbs/in
Rod Size 1 in
SKU D-9322236CS
Wire Diameter 0.452 in x 0.349 in
Specs (in metric)
Label Value
Average Life Deflection Force 684.35 kg
Brand Century Spring
Deflection For Average Life 23.88 mm
Deflection For Long Life 27.94 mm
Display Name D-9322236
Duty Load Extra Heavy
Finish None
Finish Color Yellow
Free Length 139.7 mm
Hole Size 50.8 mm
Long Life Deflection Force 804.99 kg
Material Chrome Silicon
Maximum Deflection 35.05 mm
Maximum Deflection Force 1006.35 kg
Measurement Units Standard
Rate 281.91 N/mm
Rod Size 25.4 mm
SKU D-9322236CS
Wire Diameter 11.48 mm x 8.86 mm
