Century Spring

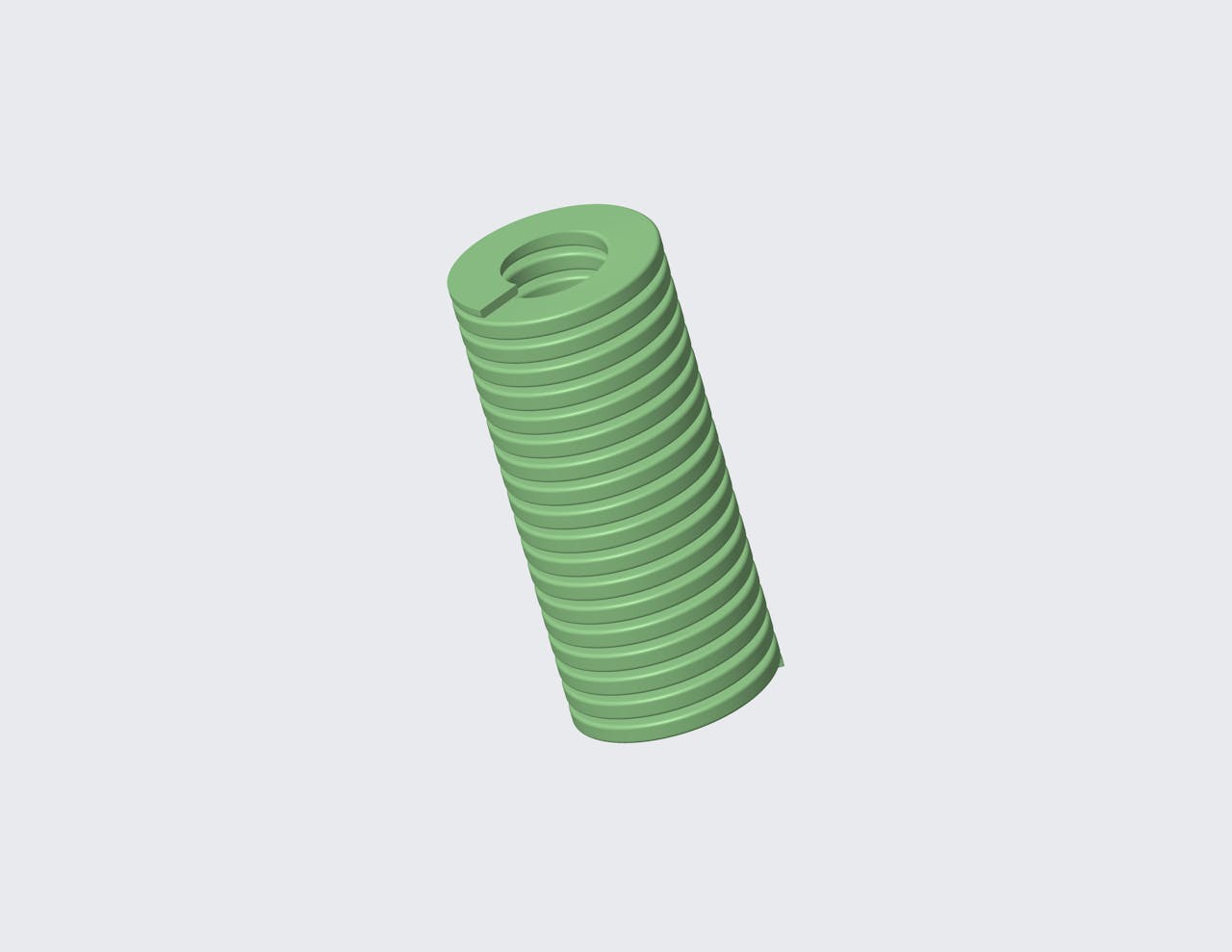

D-306716CS - 102 Millimeter Extra Heavy Duty Metric Die Spring

Inventory Status
Estimated Lead Time

Metric die spring with Powder Coat finish meant for Extra Heavy duty. This spring is 102 Millimeter long and has a 273.8 Newtons per Millimeter spring rate.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Deflection 1 0.6811 in
Deflection 2 0.8031 in
Deflection 3 1.0039 in
Display Name D-306716
Duty Load Extra Heavy
Finish Powder Coat
Finish Color Yellow
Free Length 4.0157 in
Hole Size 1.5748 in
Load 1 1067.446 lbf
Load 2 1255.6205 lbf
Load 3 1569.6942 lbf
Load At Max Deflection 1926.7086 lbf
Material Chrome Silicon
Max Deflection 1.2323 in
Measurement Units Metric
Rate 1563.6779 lbs/in
Rod Size 0.7874 in
SKU D-306716CS
Specs (in metric)
Label Value
Brand Century Spring
Deflection 1 17.3 mm
Deflection 2 20.4 mm
Deflection 3 25.5 mm
Display Name D-306716
Duty Load Extra Heavy
Finish Powder Coat
Finish Color Yellow
Free Length 102 mm
Hole Size 40 mm
Load 1 4748 N
Load 2 5585 N
Load 3 6982 N
Load At Max Deflection 8570 N
Material Chrome Silicon
Max Deflection 31.3 mm
Measurement Units Metric
Rate 273.8 N/mm
Rod Size 20 mm
SKU D-306716CS
