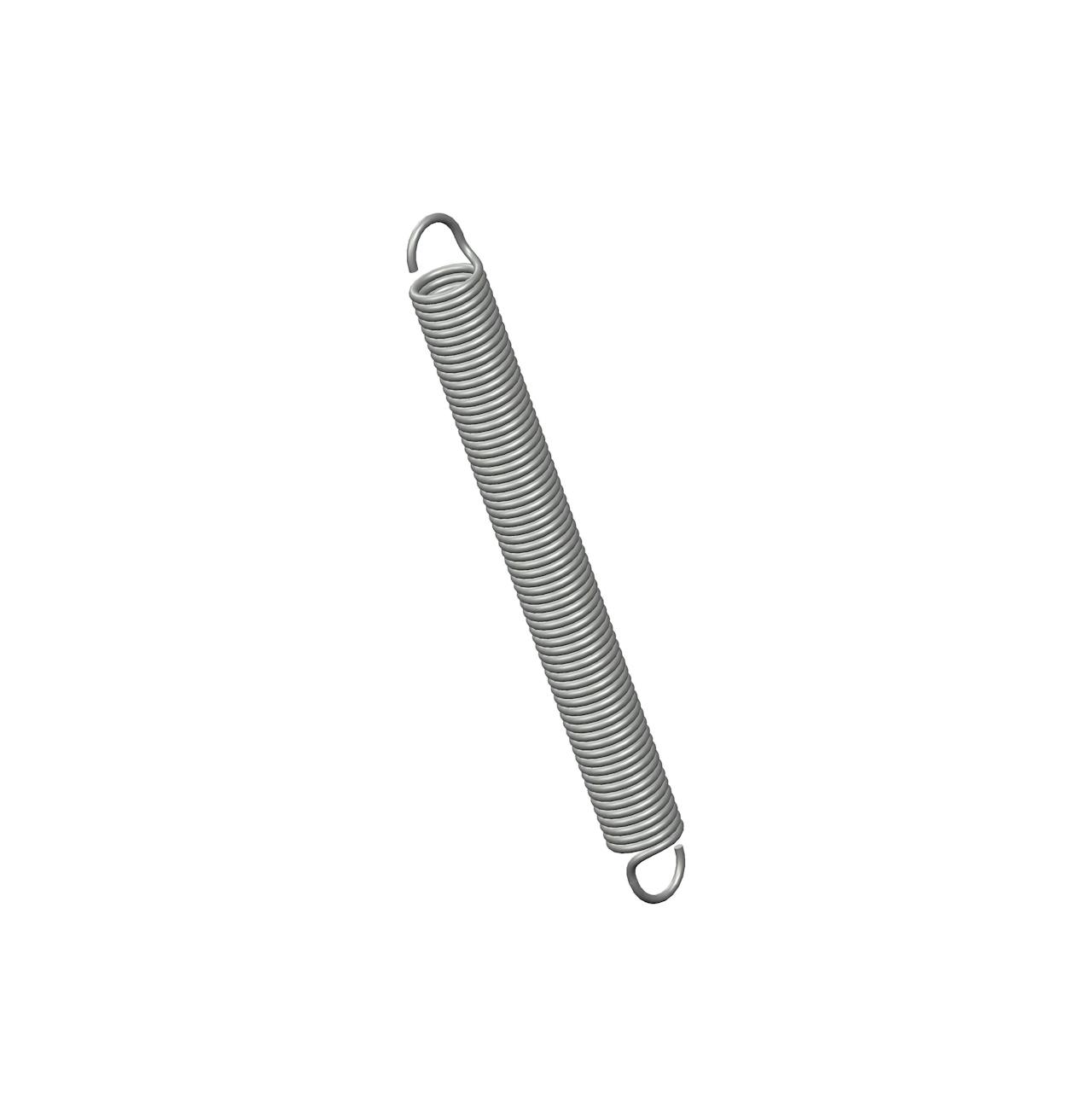

ZZ2-67CS - 2.5 Inch Music Wire Extension Spring

Inventory:
Estimated Lead Time

Regular extension spring in Music Wire. This spring features an O.D. of 0.25 Inch and an initial tension of 0.8 Pound.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name ZZ2-67
Ends Machine Hook
Finish Zinc
Initial Tension 0.8 lb
Length 2.5 in
Material Music Wire
Outside Diameter 0.25 in
Part Type Standard
Rate 1.9 lbs/in
SKU ZZ2-67CS
Sugg Max Deflection 2.7 in
Sugg Max Load 6 lbf
Wire Diameter 0.031 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name ZZ2-67
Ends Machine Hook
Finish Zinc
Initial Tension 0.36 kg
Length 63.5 mm
Material Music Wire
Outside Diameter 6.35 mm
Part Type Standard
Rate 0.33 N/mm
SKU ZZ2-67CS
Sugg Max Deflection 68.58 mm
Sugg Max Load 26.69 N
Wire Diameter 0.79 mm
