Century Spring

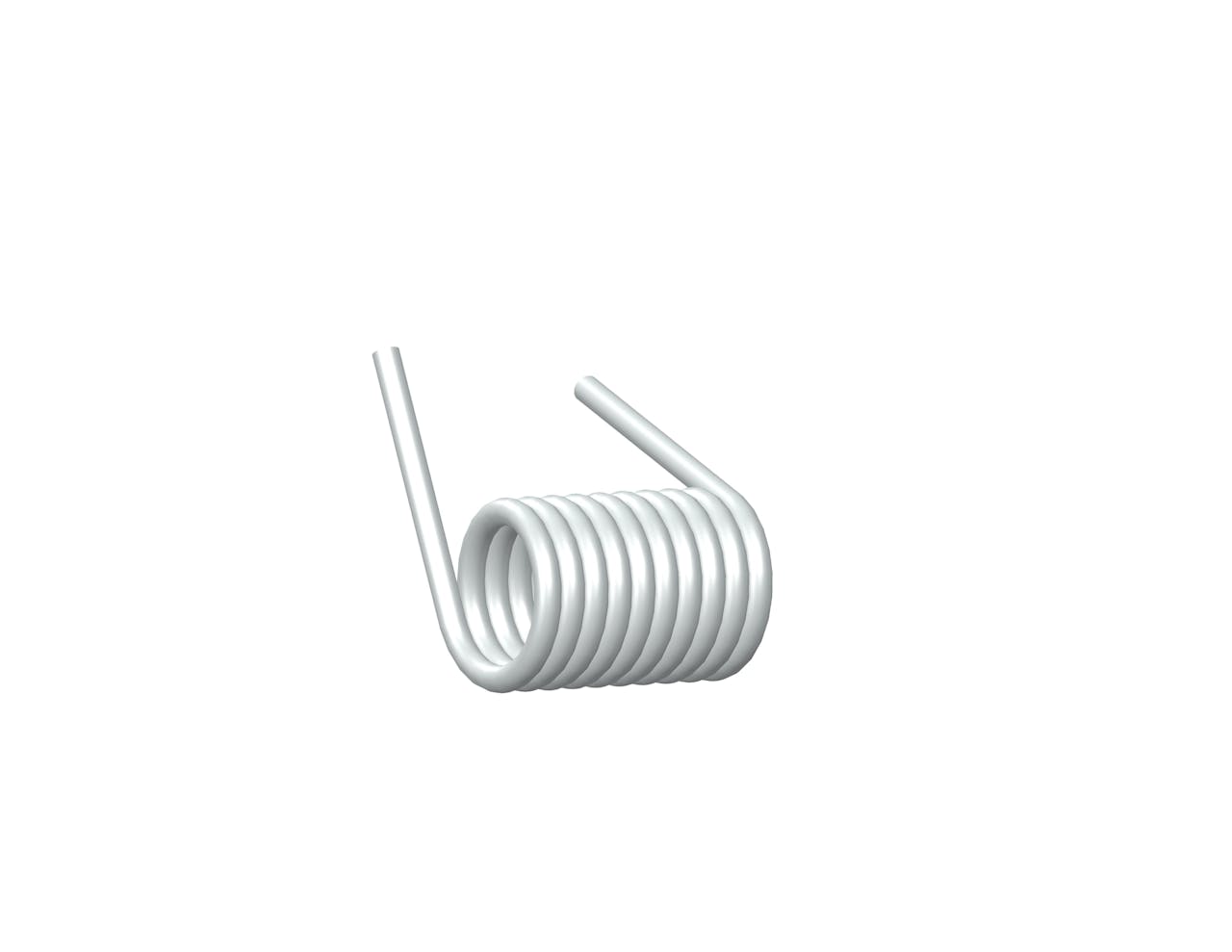

TO-1057CS - 315 Degree, 0.0098 Inch-Pounds per Degree Rate 302/304 Stainless Steel Torsion Spring

Inventory Status
Estimated Lead Time

Torsion spring in 302/304 Stainless Steel with 9.625 total coils and 0.46 Inch legs. This spring features an O.D. of 0.304 Inch, an I.D. of 0.218 Inch, and a spring rate of 0.0098 Inch-Pounds per Degree.

Download CAD
Unit System
Specs (in standard)
Label Value
Angle Between Legs 315 deg
Body Length 0.5 in
Brand Century Spring
Display Name TO-1057
Finish None
Inside Diameter 0.218 in
Leg Length 0.46 in
Mandrel Diameter 0.18 in
Material 302/304 Stainless Steel
Max Deflection (deg) (suggested) 143
Max Torque (suggested) 1.4 lbs/in
Measurement Units Standard
Outside Diameter 0.304 in
Rate 0.0098 lbf-in/deg
SKU TO-1057CS
Total Coils 9.625
Wind Direction Left
Wire Diameter 0.043 in
Specs (in metric)
Label Value
Angle Between Legs 315 deg
Body Length 12.7 mm
Brand Century Spring
Display Name TO-1057
Finish None
Inside Diameter 5.54 mm
Leg Length 11.68 mm
Mandrel Diameter 4.57 mm
Material 302/304 Stainless Steel
Max Deflection (deg) (suggested) 143
Max Torque (suggested) 0.25 N-mm
Measurement Units Standard
Outside Diameter 7.72 mm
Rate 1.11 N-mm/deg
SKU TO-1057CS
Total Coils 9.63
Wind Direction Left
Wire Diameter 1.09 mm
