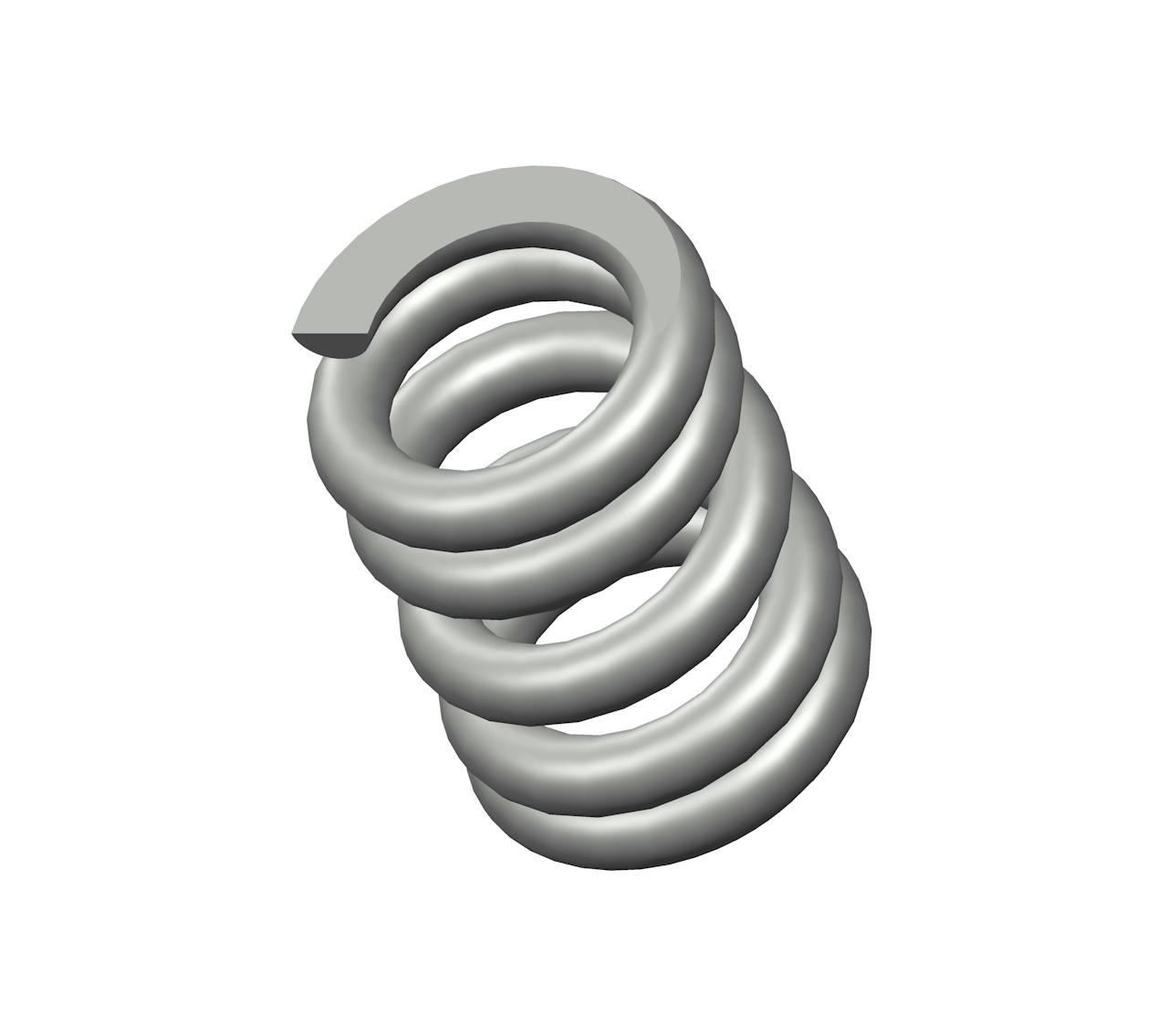

WW-46CS - 0.38" Spring Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |
Compression spring manufactured from spring steel with 5 coils and closed & ground ends. This spring features an O.D. of 0.281", and an I.D. of 0.175".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | WW-46 |
| Ends | Closed & Ground |
| Finish | Zinc |
| Free Length | 0.38 in |
| Inside Diameter | 0.175 in |
| Material | Spring Steel |
| Outside Diameter | 0.281 in |
| Part Type | Standard |
| Rate | 319 lbs/in |
| SKU | WW-46CS |
| Solid Length | 0.27 in |
| Suggested Max Deflection | 0.06 in |
| Suggested Max Load | 18 lbf |
| Total Coils | 5 |
| Wire Diameter | 0.053 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | WW-46 |
| Ends | Closed & Ground |
| Finish | Zinc |
| Free Length | 9.65 mm |
| Inside Diameter | 4.45 mm |
| Material | Spring Steel |
| Outside Diameter | 7.14 mm |
| Part Type | Standard |
| Rate | 55.86 N/mm |
| SKU | WW-46CS |
| Solid Length | 6.86 mm |
| Suggested Max Deflection | 1.52 mm |
| Suggested Max Load | 80.06 N |
| Total Coils | 5 |
| Wire Diameter | 1.35 mm |
The compression spring WW-46CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality spring steel, the WW-46 compression spring design exhibits exceptional tensile strength and resilience.
The WW-46 design is manufactured with a free length of 0.38", with an outer diameter of 0.281", an inner diameter of 0.175", and a total of 5 coils, expertly designed to deliver consistent compression characteristics including a rate of 319 lbs/in.
The WW-46CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring WW-46 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
The WW-46 design is manufactured with a free length of 0.38", with an outer diameter of 0.281", an inner diameter of 0.175", and a total of 5 coils, expertly designed to deliver consistent compression characteristics including a rate of 319 lbs/in.
The WW-46CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring WW-46 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
