TO-1019CS - 90 Degree, 0.0142 Inch-Pounds per Degree Rate 302/304 Stainless Steel Torsion Spring

Inventory Status
Estimated Lead Time

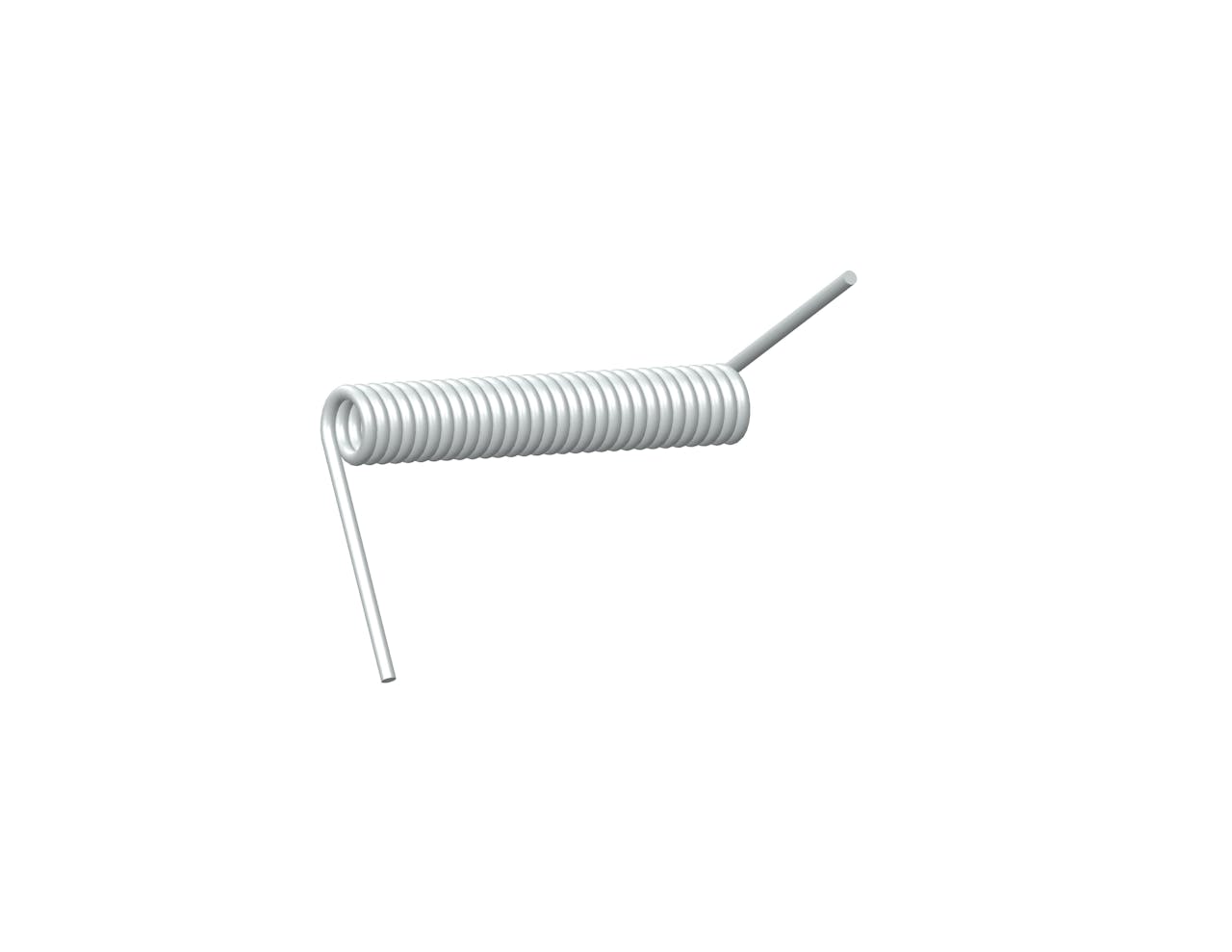

Torsion spring in 302/304 Stainless Steel with 30.25 total coils and 1.1 Inch legs. This spring features an O.D. of 0.346 Inch, an I.D. of 0.218 Inch, and a spring rate of 0.0142 Inch-Pounds per Degree.

Download CAD
Unit System

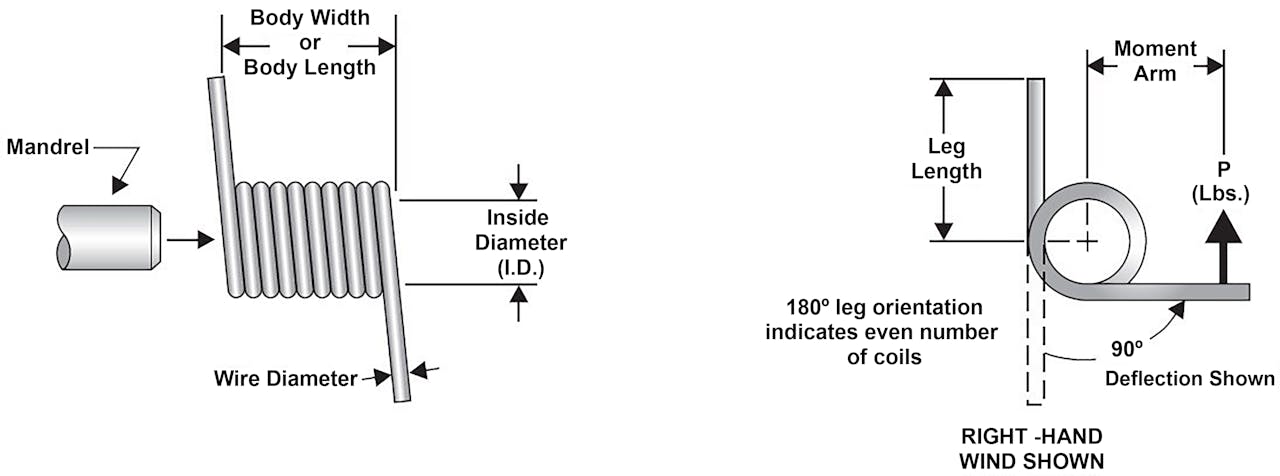

Specs (in standard)
Label Value
Angle Between Legs 90 deg
Body Length 2.2 in
Brand Century Spring
Display Name TO-1019
Finish None
Inside Diameter 0.218 in
Leg Length 1.1 in
Mandrel Diameter 0.18 in
Material 302/304 Stainless Steel
Max Deflection (deg) (suggested) 291
Max Torque (suggested) 4.1 lbs/in
Measurement Units Standard
Outside Diameter 0.346 in
Rate 0.0142 lbf-in/deg
SKU TO-1019CS
Total Coils 30.25
Wind Direction Right
Wire Diameter 0.064 in
Specs (in metric)
Label Value
Angle Between Legs 90 deg
Body Length 55.88 mm
Brand Century Spring
Display Name TO-1019
Finish None
Inside Diameter 5.54 mm
Leg Length 27.94 mm
Mandrel Diameter 4.57 mm
Material 302/304 Stainless Steel
Max Deflection (deg) (suggested) 291
Max Torque (suggested) 0.72 N-mm
Measurement Units Standard
Outside Diameter 8.79 mm
Rate 1.6 N-mm/deg
SKU TO-1019CS
Total Coils 30.25
Wind Direction Right
Wire Diameter 1.63 mm
