Century Spring

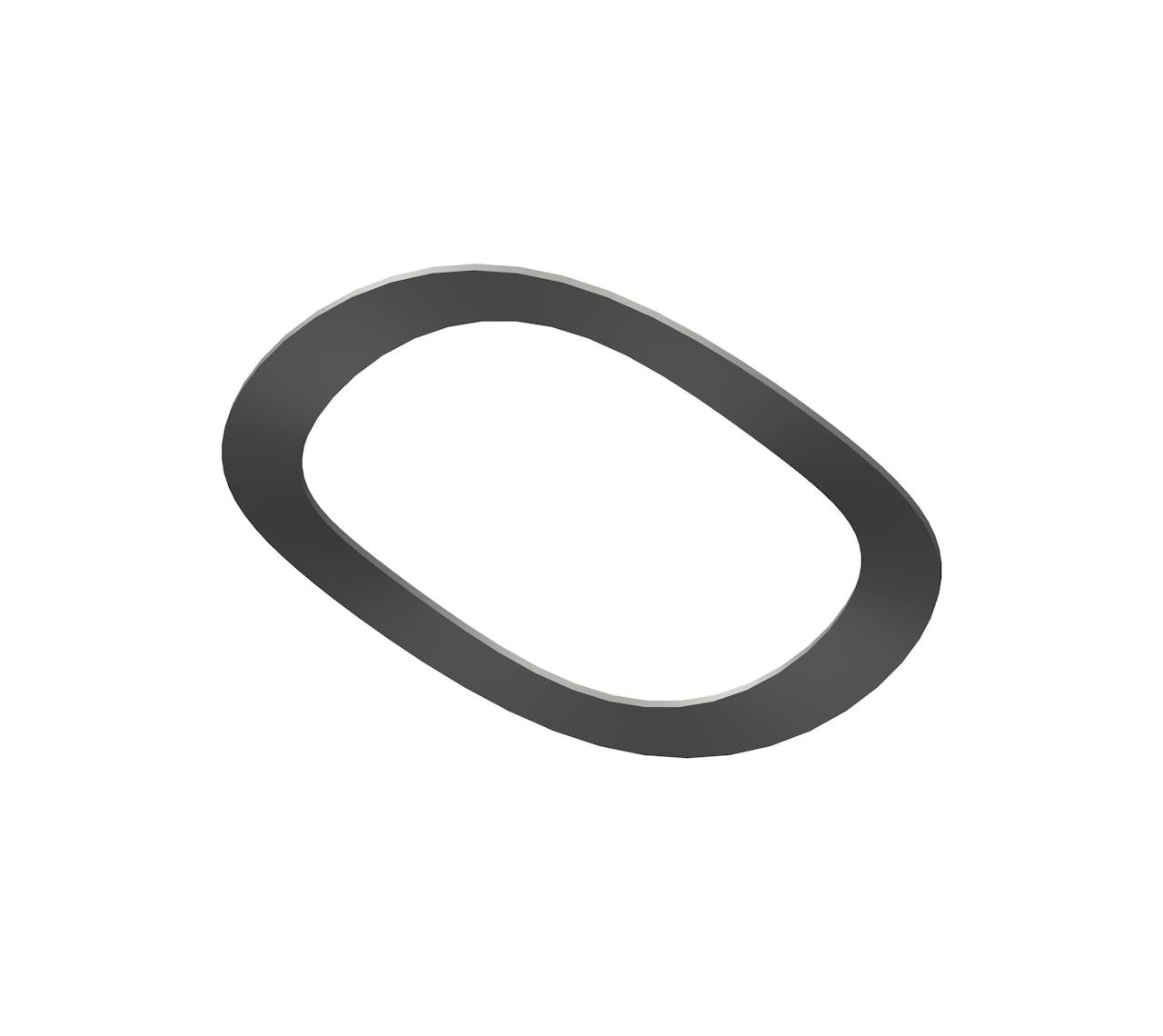

WAV-25005CS - 0.901 Inch ID 1.159 Inch OD Wave Disc Spring

Inventory Status
Estimated Lead Time

Wave disc spring manufactured from Spring Steel with an inside diameter of 0.901 Inch and an outside diameter of 1.159 Inch.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Calculated Load at Approximate Deflection 12 lb
Display Name WAV-25005
Finish None
Inside Diameter 0.901 in
Material Spring Steel
Maximum Deflection at 100% Height 0.04 in
Measurement Units Standard
Number of Waves 3
Outside Diameter 1.159 in
Outside Height 0.08 in
SKU WAV-25005CS
T 0.013 in
Specs (in metric)
Label Value
Brand Century Spring
Calculated Load at Approximate Deflection 5.44 kg
Display Name WAV-25005
Finish None
Inside Diameter 22.89 mm
Material Spring Steel
Maximum Deflection at 100% Height 1.02 mm
Measurement Units Standard
Number of Waves 3
Outside Diameter 29.44 mm
Outside Height 2.03 mm
SKU WAV-25005CS
T 0.33 mm
