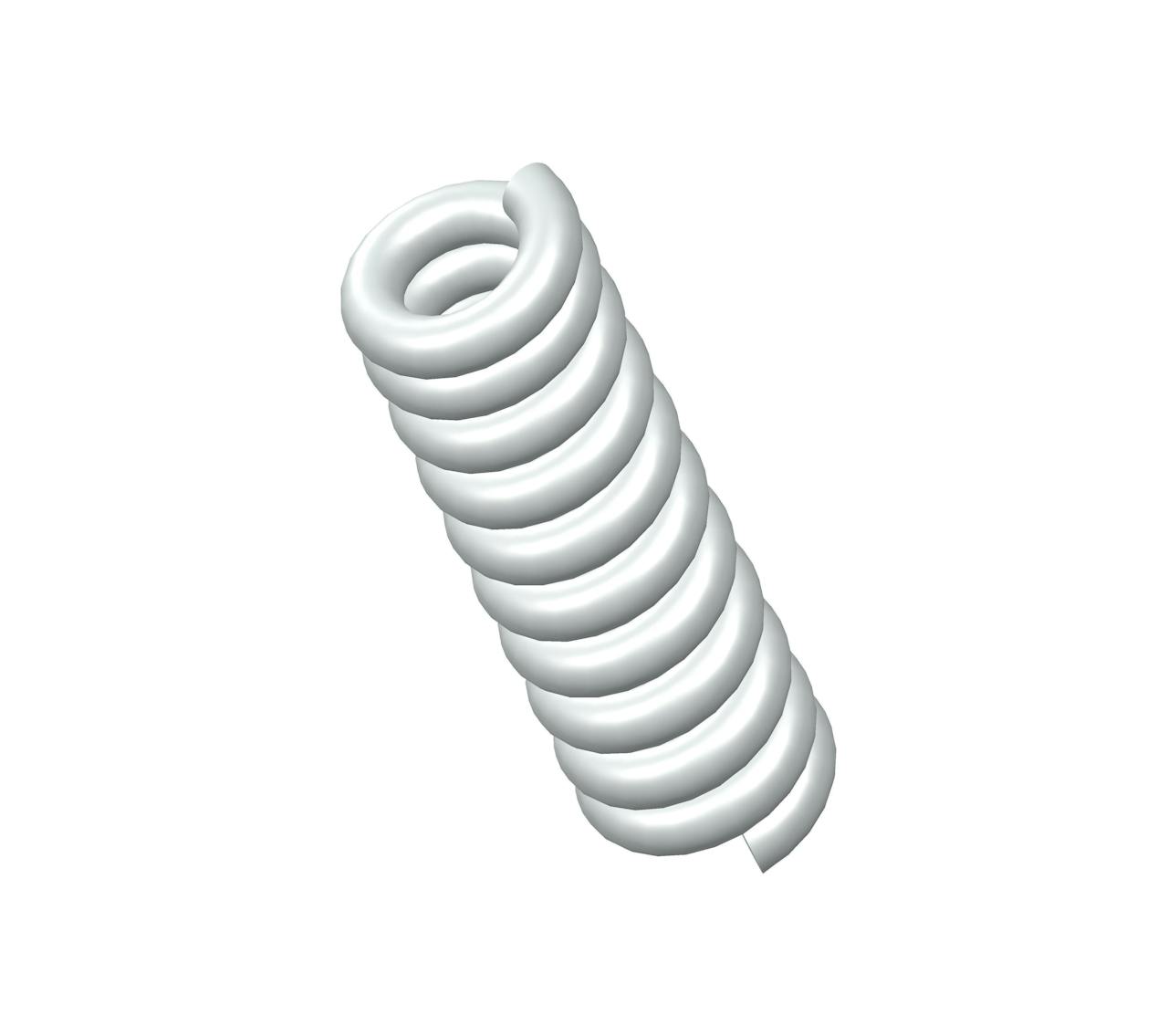

S-37CS - 1.03" 302/304 Stainless Steel Compression Spring
|
Inventory:
|
|
| Estimated Lead Time | |
|---|---|
Compression spring manufactured from 302/304 stainless steel with 10.3 coils and closed ends. This spring features an O.D. of 0.296", and an I.D. of 0.152".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | S-37 |
| Ends | Closed |
| Finish | None |
| Free Length | 1.03 in |
| Inside Diameter | 0.152 in |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 0.296 in |
| Part Type | Standard |
| Rate | 365 lbs/in |
| SKU | S-37CS |
| Solid Length | 0.81 in |
| Suggested Max Deflection | 0.1 in |
| Suggested Max Load | 36 lbf |
| Total Coils | 10.3 |
| Wire Diameter | 0.072 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | S-37 |
| Ends | Closed |
| Finish | None |
| Free Length | 26.16 mm |
| Inside Diameter | 3.86 mm |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 7.52 mm |
| Part Type | Standard |
| Rate | 63.91 N/mm |
| SKU | S-37CS |
| Solid Length | 20.57 mm |
| Suggested Max Deflection | 2.54 mm |
| Suggested Max Load | 160.13 N |
| Total Coils | 10.3 |
| Wire Diameter | 1.83 mm |
The compression spring S-37CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality 302/304 stainless steel, the S-37 compression spring design exhibits exceptional tensile strength and resilience.
The S-37 design is manufactured with a free length of 1.03", with an outer diameter of 0.296", an inner diameter of 0.152", and a total of 10.3 coils, expertly designed to deliver consistent compression characteristics including a rate of 365 lbs/in.
The S-37CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring S-37 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
The S-37 design is manufactured with a free length of 1.03", with an outer diameter of 0.296", an inner diameter of 0.152", and a total of 10.3 coils, expertly designed to deliver consistent compression characteristics including a rate of 365 lbs/in.
The S-37CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring S-37 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
