Century Spring

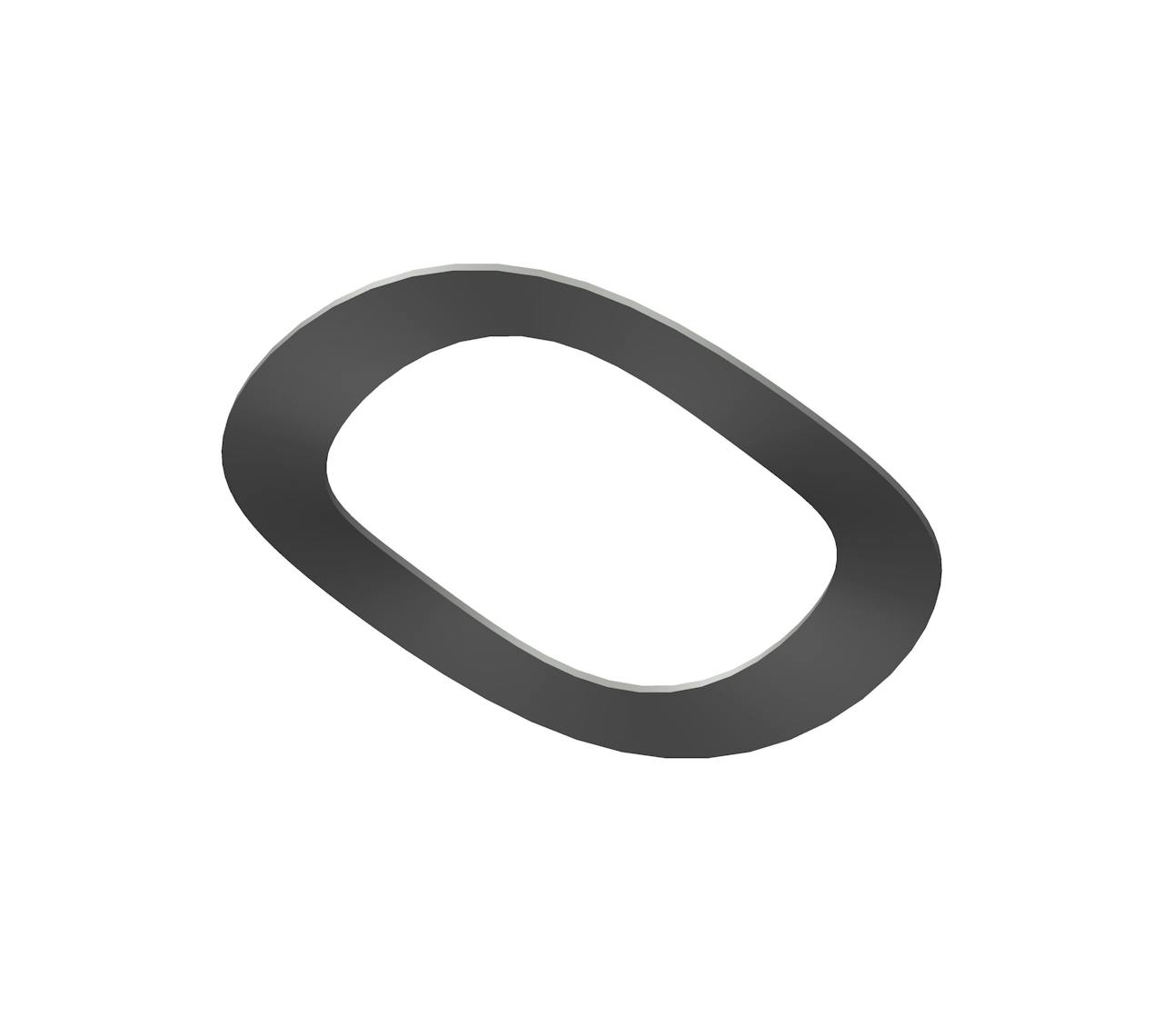

WAV-24933CS - 0.609 Inch ID 0.859 Inch OD Wave Disc Spring

Inventory Status
Estimated Lead Time

Wave disc spring manufactured from Spring Steel with an inside diameter of 0.609 Inch and an outside diameter of 0.859 Inch.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Calculated Load at Approximate Deflection 10.8 lb
Display Name WAV-24933
Finish None
Inside Diameter 0.609 in
Material Spring Steel
Maximum Deflection at 100% Height 0.036 in
Measurement Units Standard
Number of Waves 3
Outside Diameter 0.859 in
Outside Height 0.062 in
SKU WAV-24933CS
T 0.01 in
Specs (in metric)
Label Value
Brand Century Spring
Calculated Load at Approximate Deflection 4.9 kg
Display Name WAV-24933
Finish None
Inside Diameter 15.47 mm
Material Spring Steel
Maximum Deflection at 100% Height 0.91 mm
Measurement Units Standard
Number of Waves 3
Outside Diameter 21.82 mm
Outside Height 1.57 mm
SKU WAV-24933CS
T 0.25 mm
