Century Spring

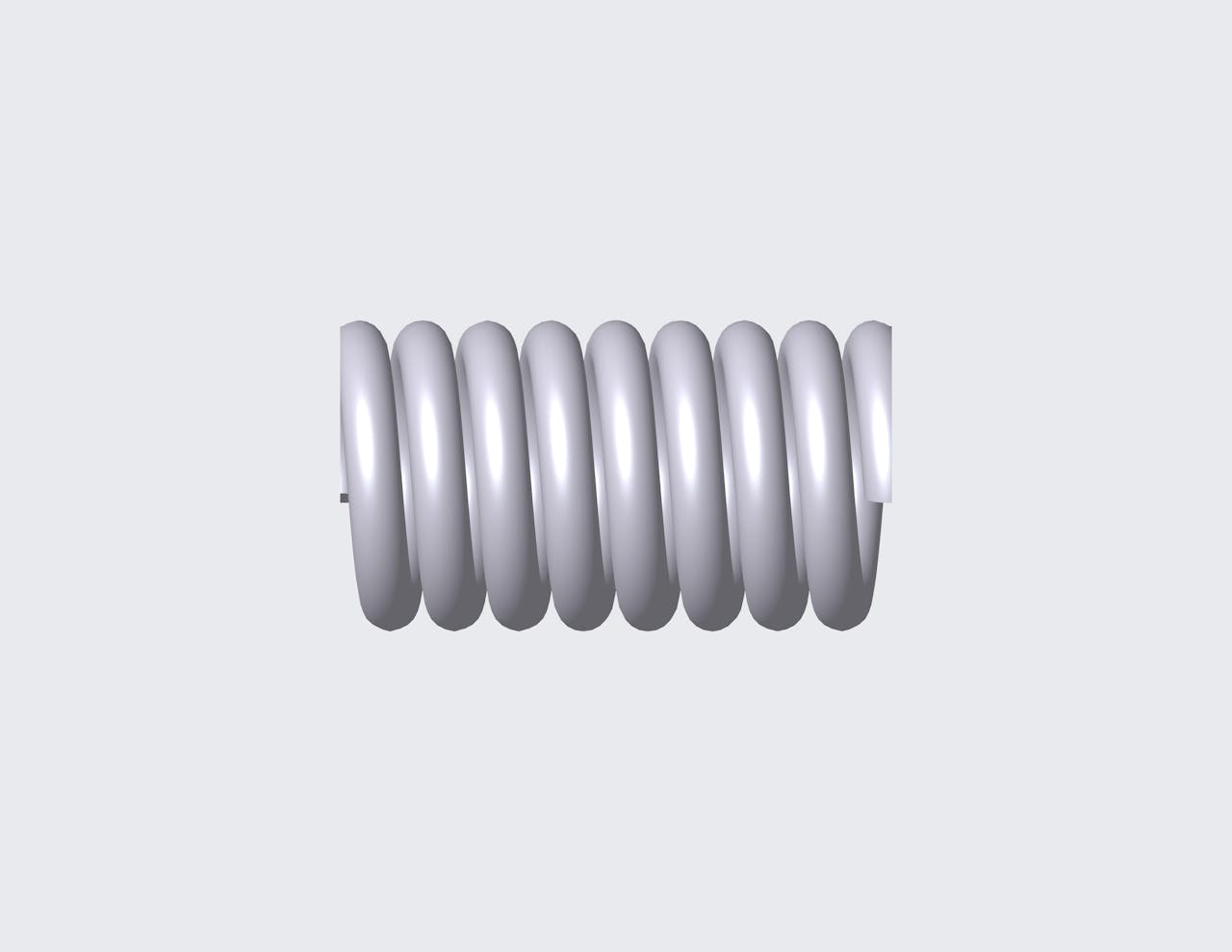

50766SCS - 1.772" 316 Stainless Steel Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from 316 stainless steel with 7.7 coils and closed & ground ends. This spring features an O.D. of 1", and an I.D. of 0.646".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 50766S
Ends Closed & Ground
Finish None
Free Length 1.772 in
Inside Diameter 0.646 in
Material 316 Stainless Steel
Outside Diameter 1 in
Rate 387.807 lbs/in
SKU 50766SCS
Solid Length 1.364 in
Suggested Max Deflection 0.304 in
Suggested Max Load 117.786 lbf
Total Coils 7.7
Wire Diameter 0.177 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 50766S
Ends Closed & Ground
Finish None
Free Length 45.01 mm
Inside Diameter 16.41 mm
Material 316 Stainless Steel
Outside Diameter 25.4 mm
Rate 67.91 N/mm
SKU 50766SCS
Solid Length 34.65 mm
Suggested Max Deflection 7.72 mm
Suggested Max Load 523.91 N
Total Coils 7.7
Wire Diameter 4.5 mm
The compression spring 50766SCS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality 316 stainless steel, the 50766S compression spring design exhibits exceptional tensile strength and resilience.

The 50766S design is manufactured with a free length of 1.772", with an outer diameter of 1", an inner diameter of 0.646", and a total of 7.7 coils, expertly designed to deliver consistent compression characteristics including a rate of 387.807 lbs/in.

The 50766SCS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.

In summary, the compression spring 50766S design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
