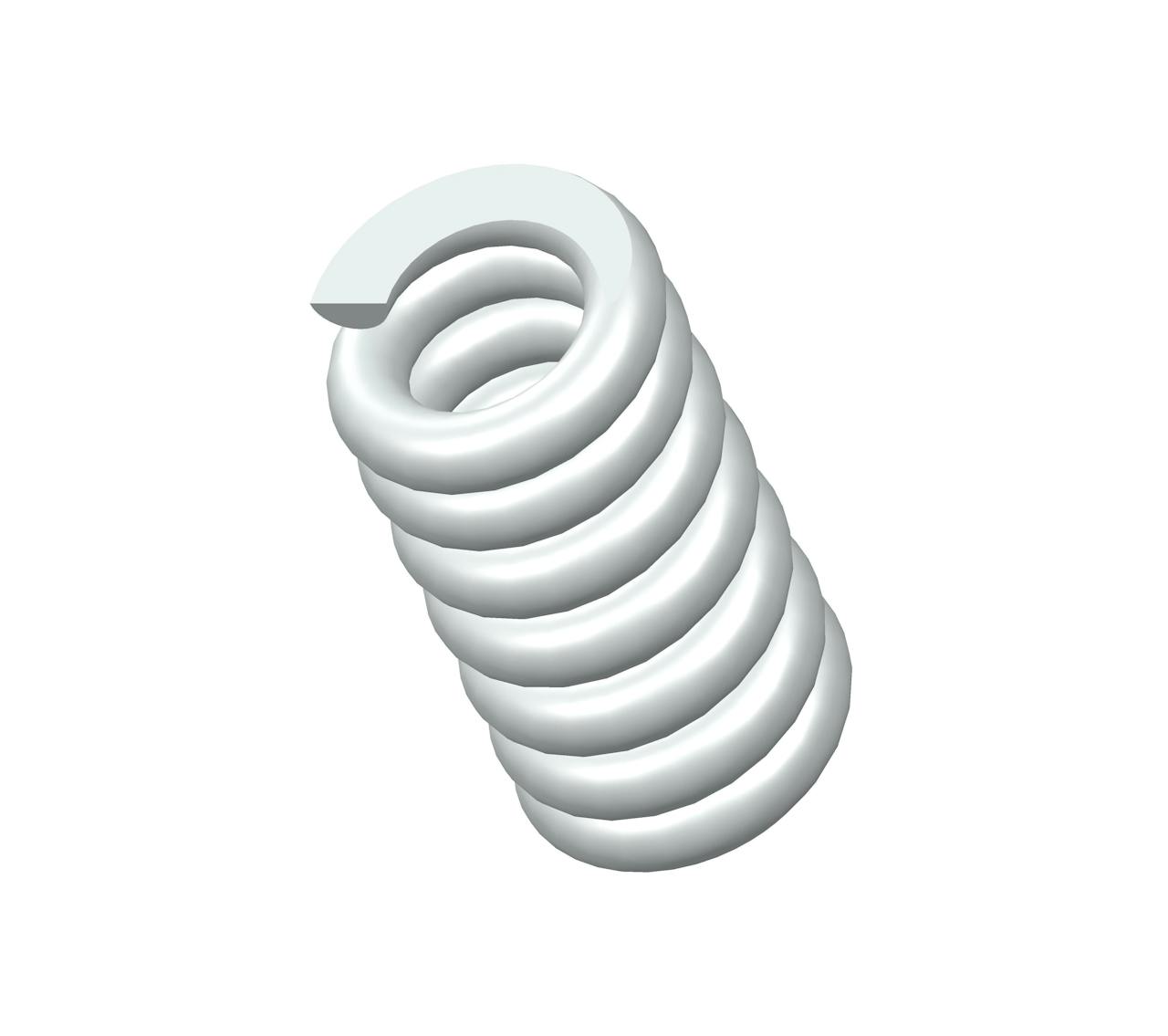

W-14CS - 0.5" 302/304 Stainless Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |
Compression spring manufactured from 302/304 stainless steel with 7 coils and closed & ground ends. This spring features an O.D. of 0.266", and an I.D. of 0.146".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | W-14 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 0.5 in |
| Inside Diameter | 0.146 in |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 0.266 in |
| Part Type | Standard |
| Rate | 376 lbs/in |
| SKU | W-14CS |
| Solid Length | 0.42 in |
| Suggested Max Deflection | 0.07 in |
| Suggested Max Load | 25 lbf |
| Total Coils | 7 |
| Wire Diameter | 0.06 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | W-14 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 12.7 mm |
| Inside Diameter | 3.71 mm |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 6.76 mm |
| Part Type | Standard |
| Rate | 65.84 N/mm |
| SKU | W-14CS |
| Solid Length | 10.67 mm |
| Suggested Max Deflection | 1.78 mm |
| Suggested Max Load | 111.2 N |
| Total Coils | 7 |
| Wire Diameter | 1.52 mm |
The compression spring W-14CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality 302/304 stainless steel, the W-14 compression spring design exhibits exceptional tensile strength and resilience.
The W-14 design is manufactured with a free length of 0.5", with an outer diameter of 0.266", an inner diameter of 0.146", and a total of 7 coils, expertly designed to deliver consistent compression characteristics including a rate of 376 lbs/in.
The W-14CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring W-14 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
The W-14 design is manufactured with a free length of 0.5", with an outer diameter of 0.266", an inner diameter of 0.146", and a total of 7 coils, expertly designed to deliver consistent compression characteristics including a rate of 376 lbs/in.
The W-14CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring W-14 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
