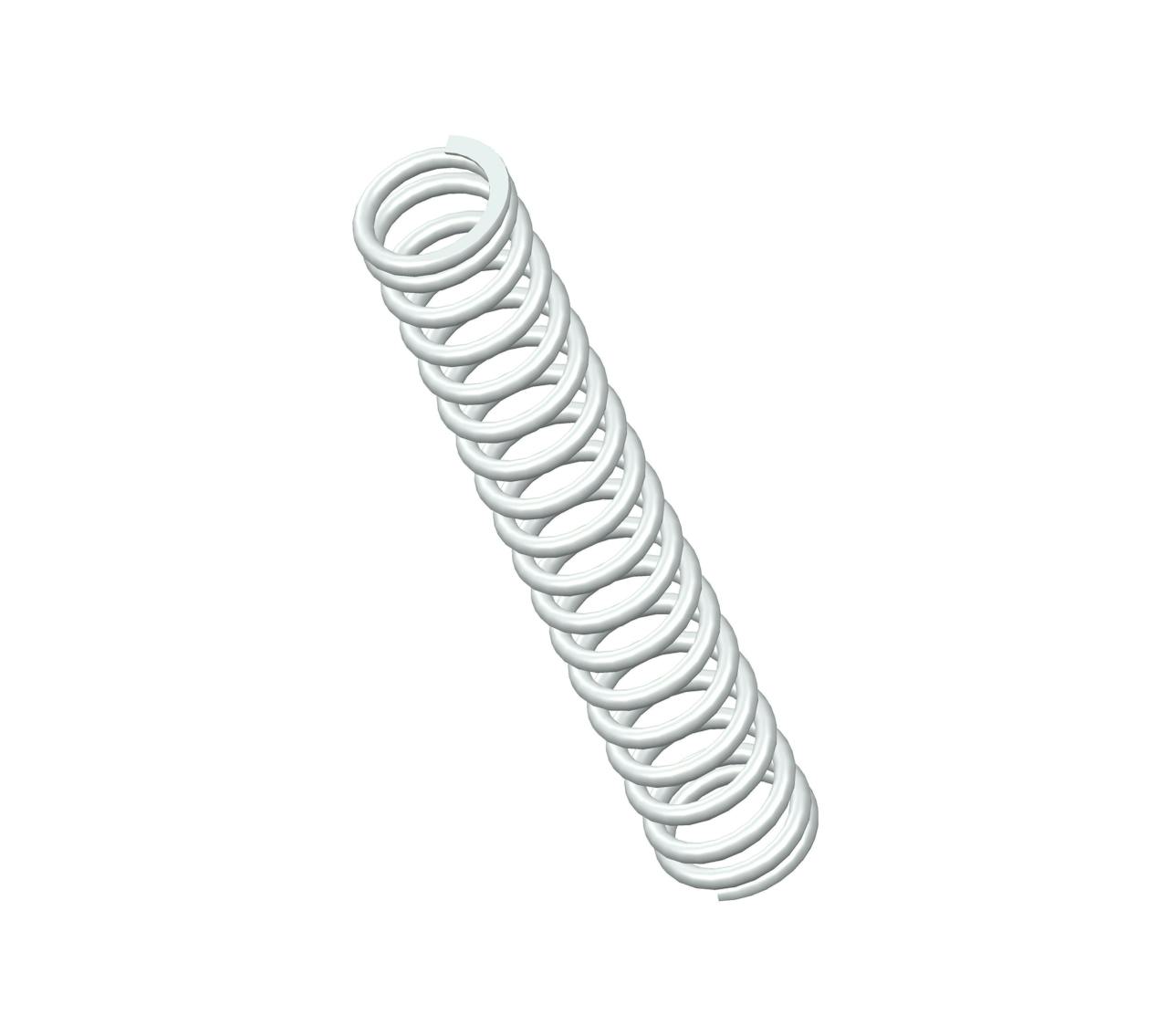

A11-15CS - 0.75" 302/304 Stainless Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |
Compression spring manufactured from 302/304 stainless steel with 18.5 coils and closed & ground ends. This spring features an O.D. of 0.125", and an I.D. of 0.093".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | A11-15 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 0.75 in |
| Inside Diameter | 0.093 in |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 0.125 in |
| Part Type | Standard |
| Rate | 3.9 lbs/in |
| SKU | A11-15CS |
| Solid Length | 0.3 in |
| Suggested Max Deflection | 0.32 in |
| Suggested Max Load | 1.3 lbf |
| Total Coils | 18.5 |
| Wire Diameter | 0.016 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | A11-15 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 19.05 mm |
| Inside Diameter | 2.36 mm |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 3.18 mm |
| Part Type | Standard |
| Rate | 0.68 N/mm |
| SKU | A11-15CS |
| Solid Length | 7.62 mm |
| Suggested Max Deflection | 8.13 mm |
| Suggested Max Load | 5.78 N |
| Total Coils | 18.5 |
| Wire Diameter | 0.41 mm |
The compression spring A11-15CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality 302/304 stainless steel, the A11-15 compression spring design exhibits exceptional tensile strength and resilience.
The A11-15 design is manufactured with a free length of 0.75", with an outer diameter of 0.125", an inner diameter of 0.093", and a total of 18.5 coils, expertly designed to deliver consistent compression characteristics including a rate of 3.9 lbs/in.
The A11-15CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring A11-15 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
The A11-15 design is manufactured with a free length of 0.75", with an outer diameter of 0.125", an inner diameter of 0.093", and a total of 18.5 coils, expertly designed to deliver consistent compression characteristics including a rate of 3.9 lbs/in.
The A11-15CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring A11-15 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
