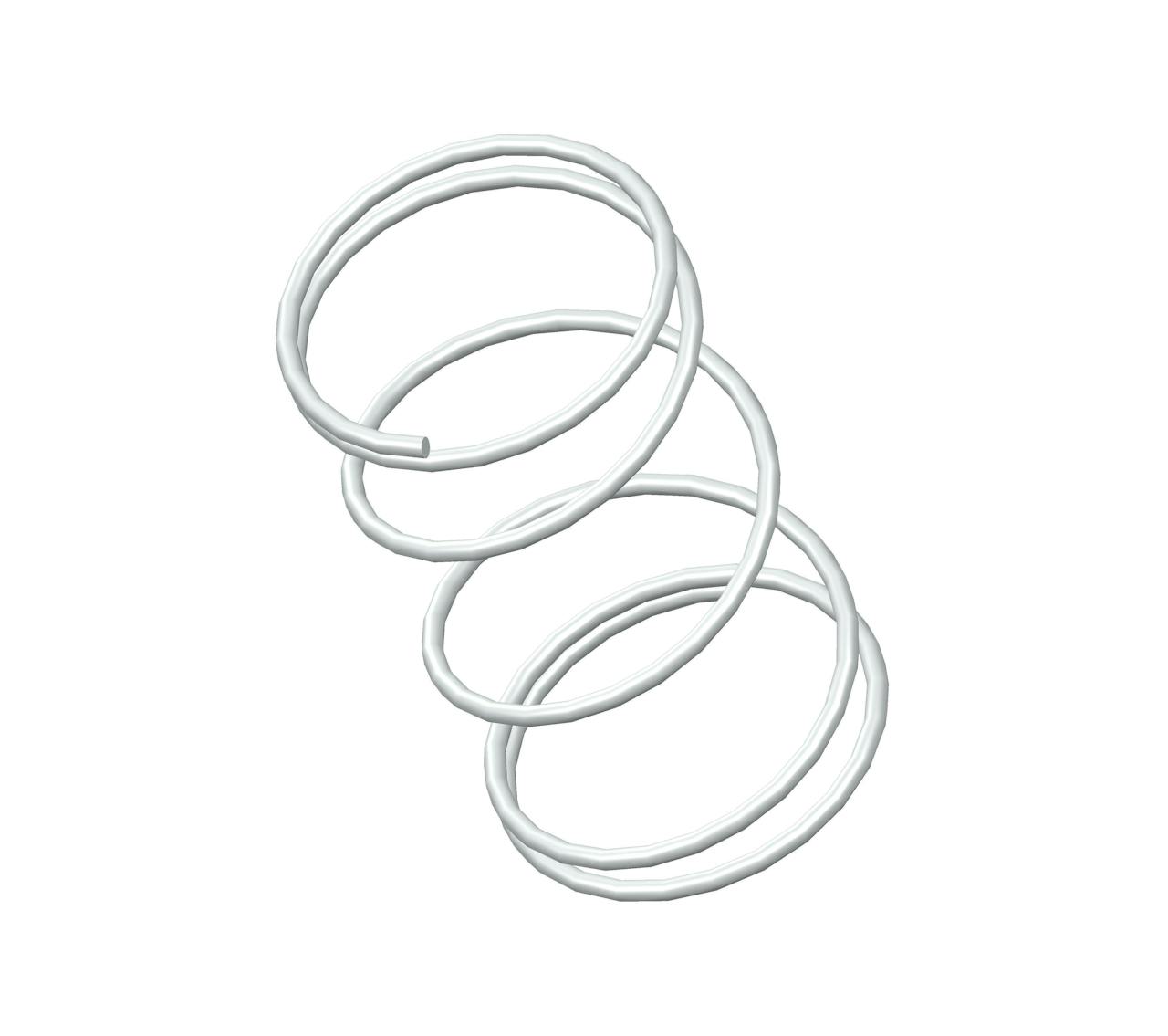

U-4CS - 0.75" 302/304 Stainless Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |
Compression spring manufactured from 302/304 stainless steel with 5.5 coils and closed ends. This spring features an O.D. of 0.42", and an I.D. of 0.376".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | U-4 |
| Ends | Closed |
| Finish | None |
| Free Length | 0.75 in |
| Inside Diameter | 0.376 in |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 0.42 in |
| Part Type | Standard |
| Rate | 1.3 lbs/in |
| SKU | U-4CS |
| Solid Length | 0.14 in |
| Suggested Max Deflection | 0.61 in |
| Suggested Max Load | 0.8 lbf |
| Total Coils | 5.5 |
| Wire Diameter | 0.022 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | U-4 |
| Ends | Closed |
| Finish | None |
| Free Length | 19.05 mm |
| Inside Diameter | 9.55 mm |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 10.67 mm |
| Part Type | Standard |
| Rate | 0.23 N/mm |
| SKU | U-4CS |
| Solid Length | 3.56 mm |
| Suggested Max Deflection | 15.49 mm |
| Suggested Max Load | 3.56 N |
| Total Coils | 5.5 |
| Wire Diameter | 0.56 mm |
The compression spring U-4CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality 302/304 stainless steel, the U-4 compression spring design exhibits exceptional tensile strength and resilience.
The U-4 design is manufactured with a free length of 0.75", with an outer diameter of 0.42", an inner diameter of 0.376", and a total of 5.5 coils, expertly designed to deliver consistent compression characteristics including a rate of 1.3 lbs/in.
The U-4CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring U-4 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
The U-4 design is manufactured with a free length of 0.75", with an outer diameter of 0.42", an inner diameter of 0.376", and a total of 5.5 coils, expertly designed to deliver consistent compression characteristics including a rate of 1.3 lbs/in.
The U-4CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring U-4 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
