Century Spring

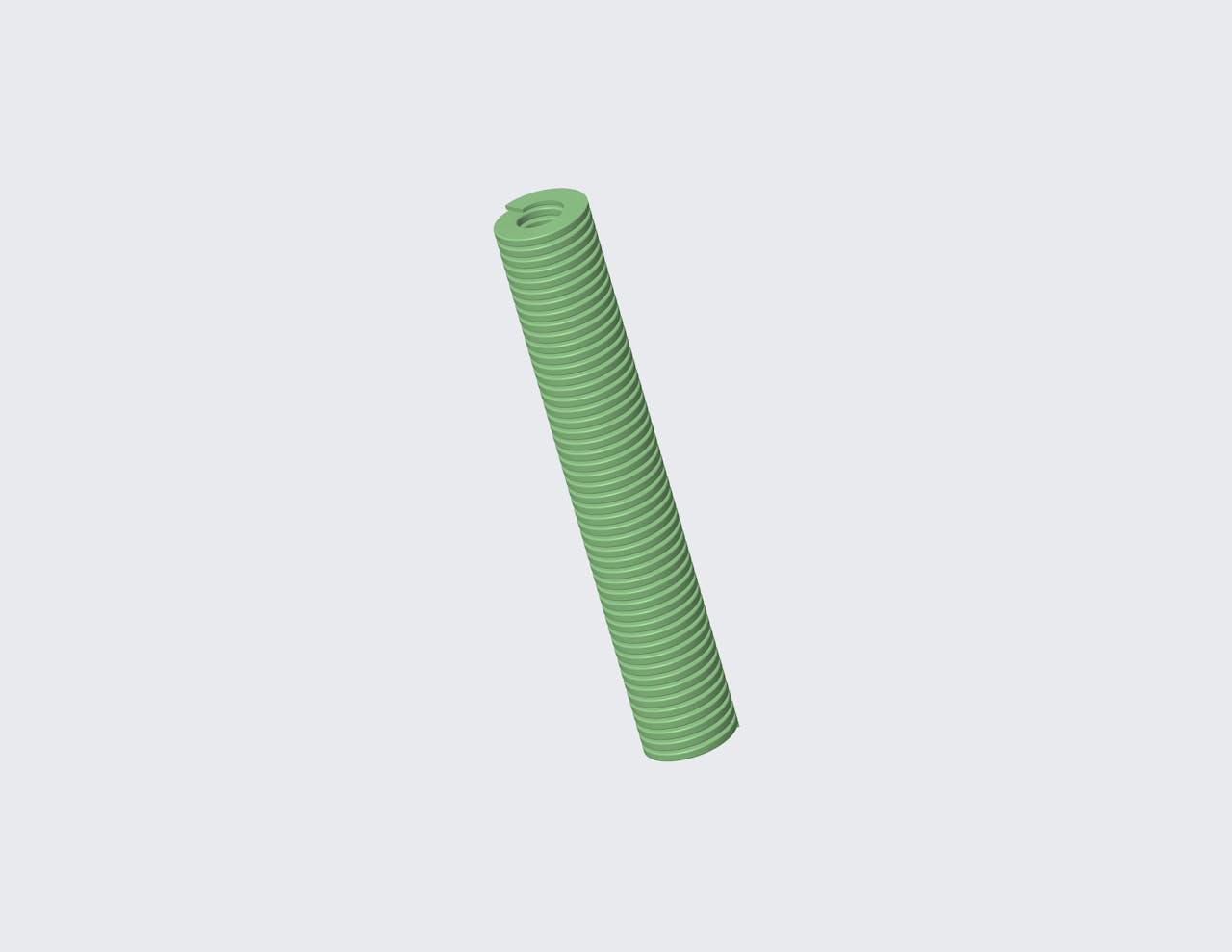

D-305422CS - 140 Millimeter Heavy Duty Metric Die Spring

Inventory Status
Estimated Lead Time

Metric die spring with Powder Coat finish meant for Heavy duty. This spring is 140 Millimeter long and has a 33.9 Newtons per Millimeter spring rate.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Deflection 1 1.1024 in
Deflection 2 1.378 in
Deflection 3 1.6535 in
Display Name D-305422
Duty Load Heavy
Finish Powder Coat
Finish Color Red
Free Length 5.5118 in
Hole Size 0.7874 in
Load 1 211.7806 lbf
Load 2 264.6133 lbf
Load 3 317.6709 lbf
Load At Max Deflection 350.2698 lbf
Material Chrome Silicon
Max Deflection 1.811 in
Measurement Units Metric
Rate 193.6037 lbs/in
Rod Size 0.3937 in
SKU D-305422CS
Specs (in metric)
Label Value
Brand Century Spring
Deflection 1 28 mm
Deflection 2 35 mm
Deflection 3 42 mm
Display Name D-305422
Duty Load Heavy
Finish Powder Coat
Finish Color Red
Free Length 140 mm
Hole Size 20 mm
Load 1 942 N
Load 2 1177 N
Load 3 1413 N
Load At Max Deflection 1558 N
Material Chrome Silicon
Max Deflection 46 mm
Measurement Units Metric
Rate 33.9 N/mm
Rod Size 10 mm
SKU D-305422CS
