TO-5211LCS - 225 Degree, 0.0793 Inch-Pounds per Degree Rate Music Wire Torsion Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |

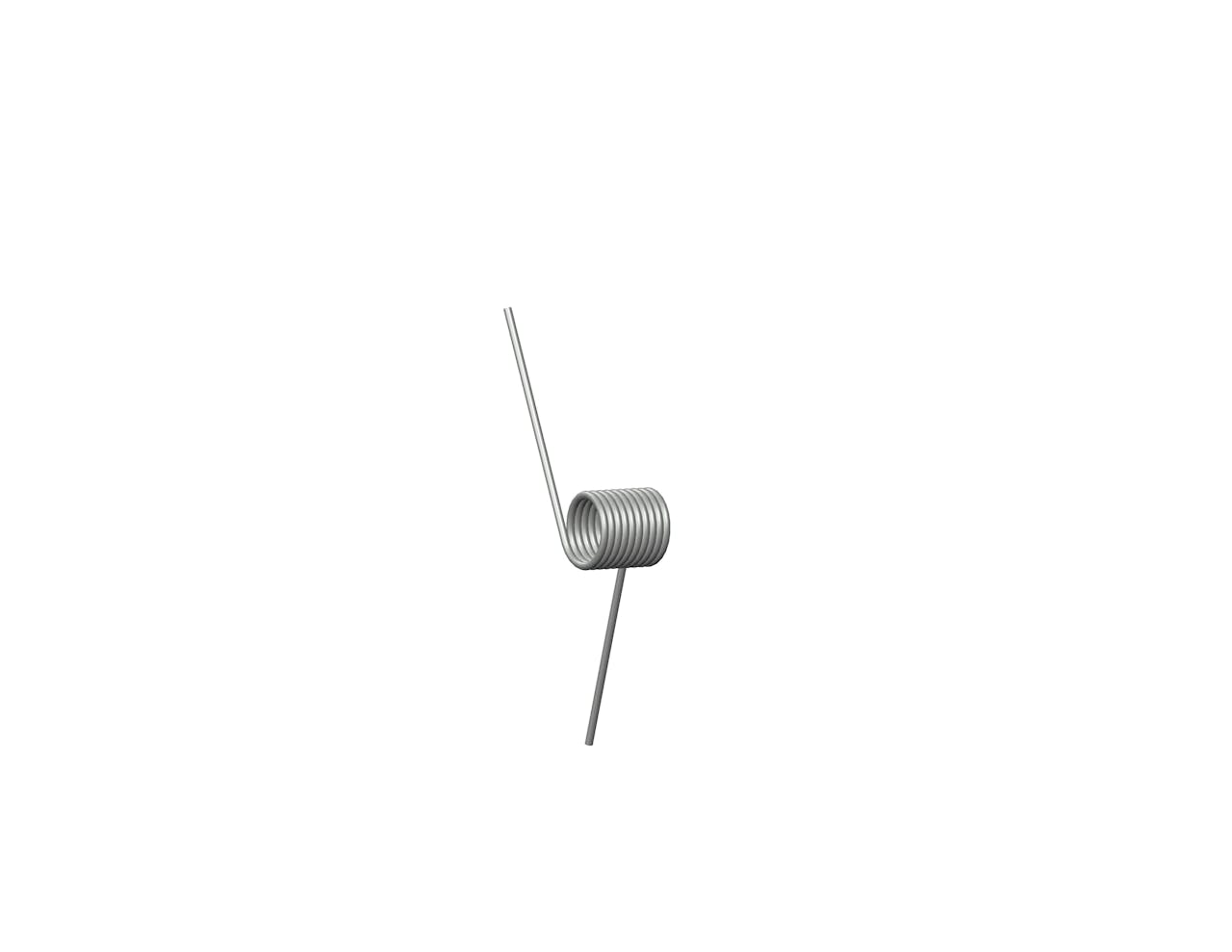

Torsion spring in Music Wire with 9.875 total coils and 3 Inch legs. This spring features an O.D. of 0.944 Inch, an I.D. of 0.752 Inch, and a spring rate of 0.0793 Inch-Pounds per Degree.
| Label | Value |
|---|---|
| Angle Between Legs | 225 deg |
| Body Length | 1.15 in |
| Brand | Century Spring |
| Display Name | TO-5211L |
| Finish | None |
| Inside Diameter | 0.752 in |
| Leg Length | 3 in |
| Mandrel Diameter | 0.6 in |
| Material | Music Wire |
| Max Deflection (deg) (suggested) | 204 |
| Max Torque (suggested) | 16 lbs/in |
| Measurement Units | Standard |
| Outside Diameter | 0.944 in |
| Rate | 0.0793 lbf-in/deg |
| SKU | TO-5211LCS |
| Total Coils | 9.875 |
| Wind Direction | Left |
| Wire Diameter | 0.096 in |
| Label | Value |
|---|---|
| Angle Between Legs | 225 deg |
| Body Length | 29.21 mm |
| Brand | Century Spring |
| Display Name | TO-5211L |
| Finish | None |
| Inside Diameter | 19.1 mm |
| Leg Length | 76.2 mm |
| Mandrel Diameter | 15.24 mm |
| Material | Music Wire |
| Max Deflection (deg) (suggested) | 204 |
| Max Torque (suggested) | 2.8 N-mm |
| Measurement Units | Standard |
| Outside Diameter | 23.98 mm |
| Rate | 8.96 N-mm/deg |
| SKU | TO-5211LCS |
| Total Coils | 9.88 |
| Wind Direction | Left |
| Wire Diameter | 2.44 mm |
