Shop Online > Springs > Die > Standard

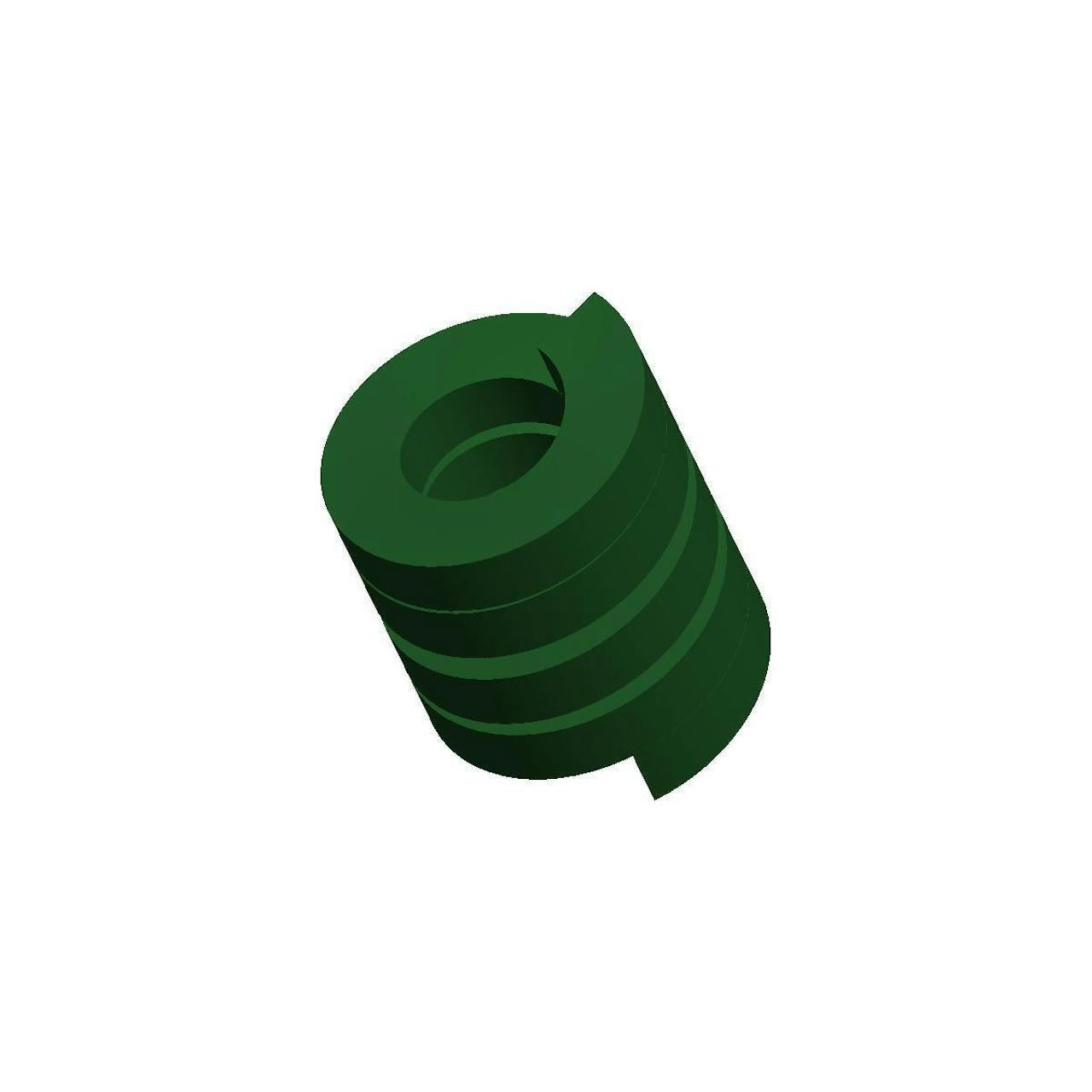

D-1463CS - 2 Inch Chrome Alloy Die Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |
2 Inch Chrome Alloy die spring
| Label | Value |
|---|---|
| Average Life Deflection Force | 1128 lb |
| Brand | Century Spring |
| Deflection For Average Life | 0.3 in |
| Deflection For Long Life | 0.4 in |
| Display Name | D-1463 |
| Duty Load | Extra Heavy |
| Finish | None |
| Finish Color | Green |
| Free Length | 2 in |
| Hole Size | 1.5 in |
| Long Life Deflection Force | 1504 lb |
| Material | Chrome Alloy |
| Maximum Deflection | 0.5 in |
| Maximum Deflection Force | 1880 lb |
| Measurement Units | Standard |
| Rate | 3760 lbs/in |
| Rod Size | 0.75 in |
| SKU | D-1463CS |
| Wire Diameter | 0.35 in x 0.3 in |
| Label | Value |
|---|---|
| Average Life Deflection Force | 511.56 kg |
| Brand | Century Spring |
| Deflection For Average Life | 7.62 mm |
| Deflection For Long Life | 10.16 mm |
| Display Name | D-1463 |
| Duty Load | Extra Heavy |
| Finish | None |
| Finish Color | Green |
| Free Length | 50.8 mm |
| Hole Size | 38.1 mm |
| Long Life Deflection Force | 682.09 kg |
| Material | Chrome Alloy |
| Maximum Deflection | 12.7 mm |
| Maximum Deflection Force | 852.61 kg |
| Measurement Units | Standard |
| Rate | 658.38 N/mm |
| Rod Size | 19.05 mm |
| SKU | D-1463CS |
| Wire Diameter | 8.89 mm x 7.62 mm |
