Century Spring

TO-5141LCS - 225 Degree, 0.0112 Inch-Pounds per Degree Rate Music Wire Torsion Spring

Inventory Status
Estimated Lead Time

Torsion spring in Music Wire with 7.875 total coils and 2 Inch legs. This spring features an O.D. of 0.556 Inch, an I.D. of 0.458 Inch, and a spring rate of 0.0112 Inch-Pounds per Degree.

Download CAD
Unit System
Specs (in standard)

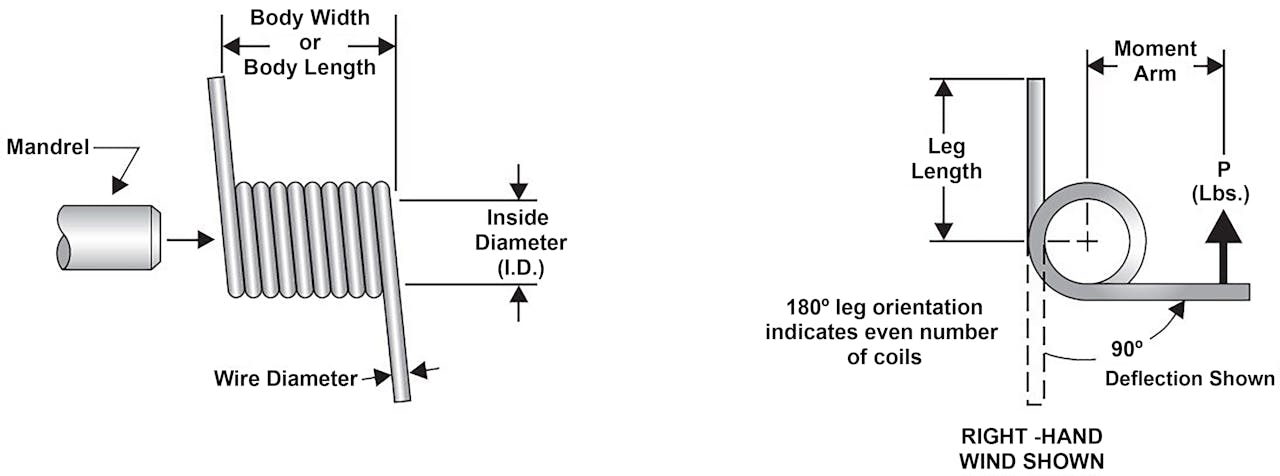

Label Value
Angle Between Legs 225 deg
Body Length 0.48 in
Brand Century Spring
Display Name TO-5141L
Finish None
Inside Diameter 0.458 in
Leg Length 2 in
Mandrel Diameter 0.36 in
Material Music Wire
Max Deflection (deg) (suggested) 225
Max Torque (suggested) 2.5 lbs/in
Measurement Units Standard
Outside Diameter 0.556 in
Rate 0.0112 lbf-in/deg
SKU TO-5141LCS
Total Coils 7.875
Wind Direction Left
Wire Diameter 0.049 in
Specs (in metric)
Label Value
Angle Between Legs 225 deg
Body Length 12.19 mm
Brand Century Spring
Display Name TO-5141L
Finish None
Inside Diameter 11.63 mm
Leg Length 50.8 mm
Mandrel Diameter 9.14 mm
Material Music Wire
Max Deflection (deg) (suggested) 225
Max Torque (suggested) 0.44 N-mm
Measurement Units Standard
Outside Diameter 14.12 mm
Rate 1.27 N-mm/deg
SKU TO-5141LCS
Total Coils 7.88
Wind Direction Left
Wire Diameter 1.24 mm
