Century Spring

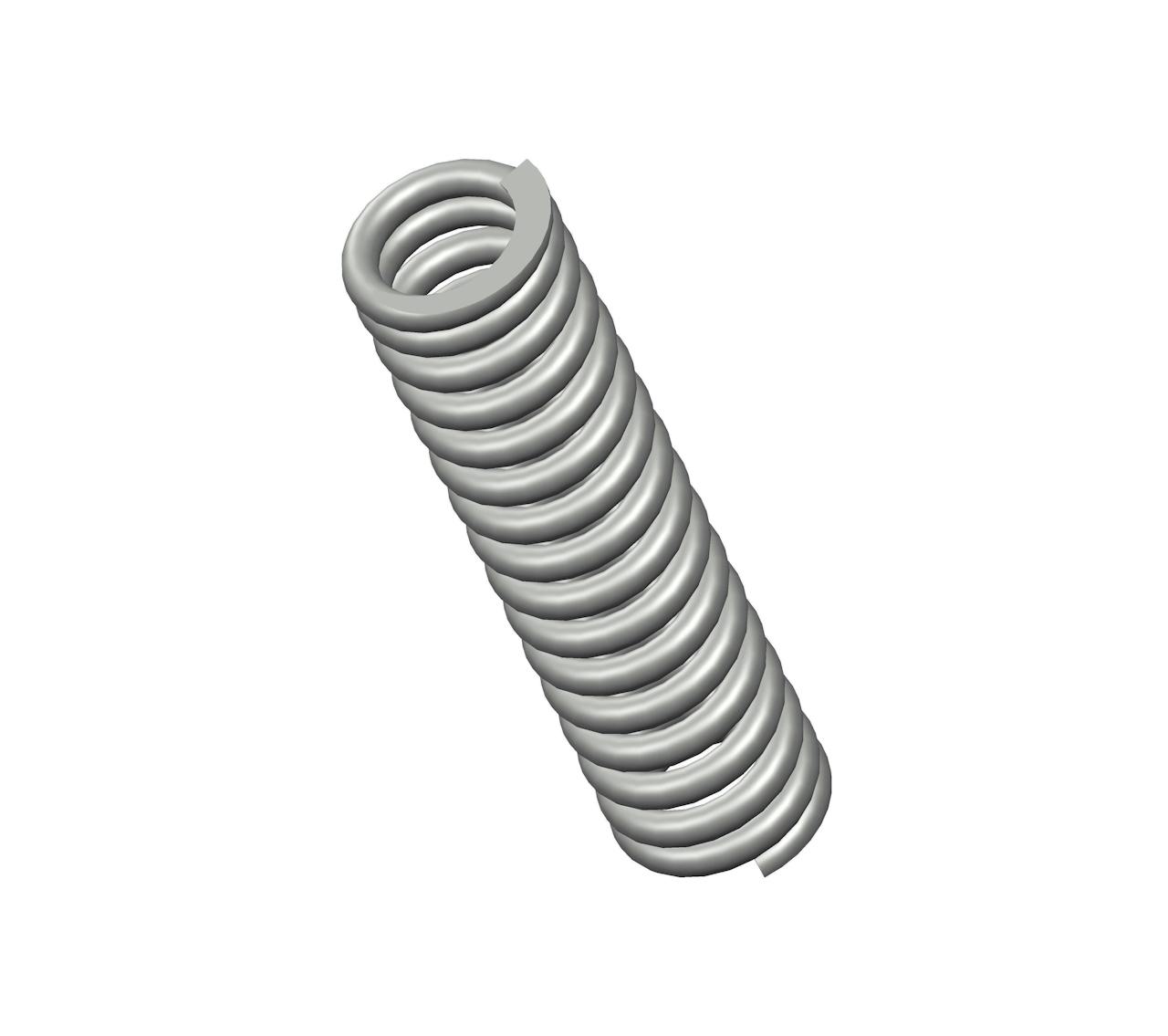

J-35CS - 2.22" Spring Steel Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from spring steel with 16.3 coils and closed & ground ends. This spring features an O.D. of 0.546", and an I.D. of 0.364".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name J-35
Ends Closed & Ground
Finish None
Free Length 2.22 in
Inside Diameter 0.364 in
Material Spring Steel
Outside Diameter 0.546 in
Part Type Standard
Rate 73 lbs/in
SKU J-35CS
Solid Length 1.48 in
Suggested Max Deflection 0.59 in
Suggested Max Load 43 lbf
Total Coils 16.3
Wire Diameter 0.091 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name J-35
Ends Closed & Ground
Finish None
Free Length 56.39 mm
Inside Diameter 9.25 mm
Material Spring Steel
Outside Diameter 13.87 mm
Part Type Standard
Rate 12.78 N/mm
SKU J-35CS
Solid Length 37.59 mm
Suggested Max Deflection 14.99 mm
Suggested Max Load 191.26 N
Total Coils 16.3
Wire Diameter 2.31 mm
The J-35CS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.091" diameter spring steel, the J-35 spring design exhibits reliable strength across its 16.3 active coils, withstanding repeated compression cycles with a maximum load of 43 lbf without succumbing to fatigue.

We manufacture the J-35 design to provide a compression spring that is 2.22" long at rest and provides a consistent rate of 73 lbs/in along its recommended maximum of 0.59" deflection. For best results, your application should fully accommodate the inner (0.364") and outer (0.546") diameters of this spring and be designed for its closed & ground end configuration.
