TO-5107LCS - 90 Degree, 0.0344 Inch-Pounds per Degree Rate Music Wire Torsion Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |

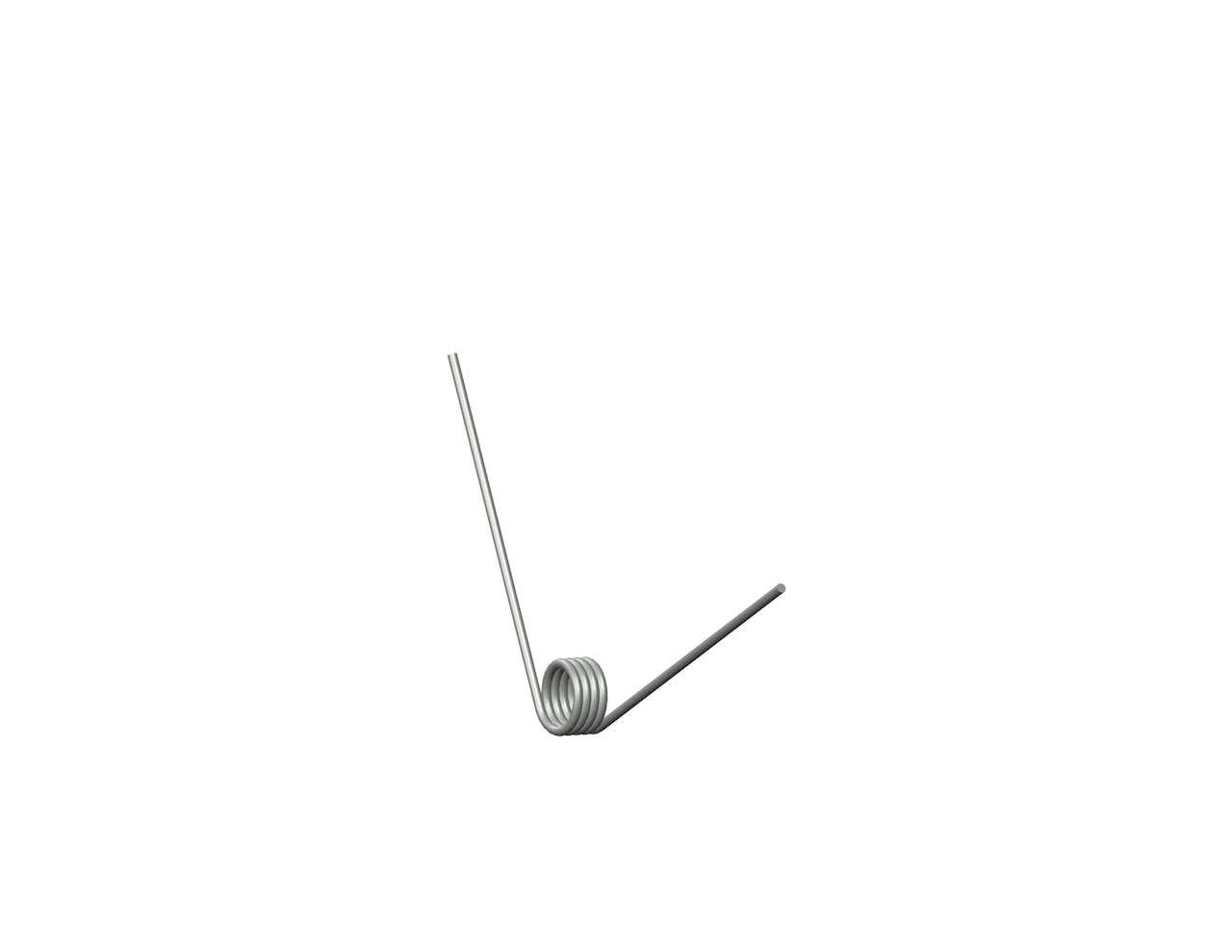

Torsion spring in Music Wire with 4.25 total coils and 2 Inch legs. This spring features an O.D. of 0.408 Inch, an I.D. of 0.306 Inch, and a spring rate of 0.0344 Inch-Pounds per Degree.
| Label | Value |
|---|---|
| Angle Between Legs | 90 deg |
| Body Length | 0.29 in |
| Brand | Century Spring |
| Display Name | TO-5107L |
| Finish | None |
| Inside Diameter | 0.306 in |
| Leg Length | 2 in |
| Mandrel Diameter | 0.25 in |
| Material | Music Wire |
| Max Deflection (deg) (suggested) | 75 |
| Max Torque (suggested) | 2.6 lbs/in |
| Measurement Units | Standard |
| Outside Diameter | 0.408 in |
| Rate | 0.0344 lbf-in/deg |
| SKU | TO-5107LCS |
| Total Coils | 4.25 |
| Wind Direction | Left |
| Wire Diameter | 0.051 in |
| Label | Value |
|---|---|
| Angle Between Legs | 90 deg |
| Body Length | 7.37 mm |
| Brand | Century Spring |
| Display Name | TO-5107L |
| Finish | None |
| Inside Diameter | 7.77 mm |
| Leg Length | 50.8 mm |
| Mandrel Diameter | 6.35 mm |
| Material | Music Wire |
| Max Deflection (deg) (suggested) | 75 |
| Max Torque (suggested) | 0.46 N-mm |
| Measurement Units | Standard |
| Outside Diameter | 10.36 mm |
| Rate | 3.89 N-mm/deg |
| SKU | TO-5107LCS |
| Total Coils | 4.25 |
| Wind Direction | Left |
| Wire Diameter | 1.3 mm |
