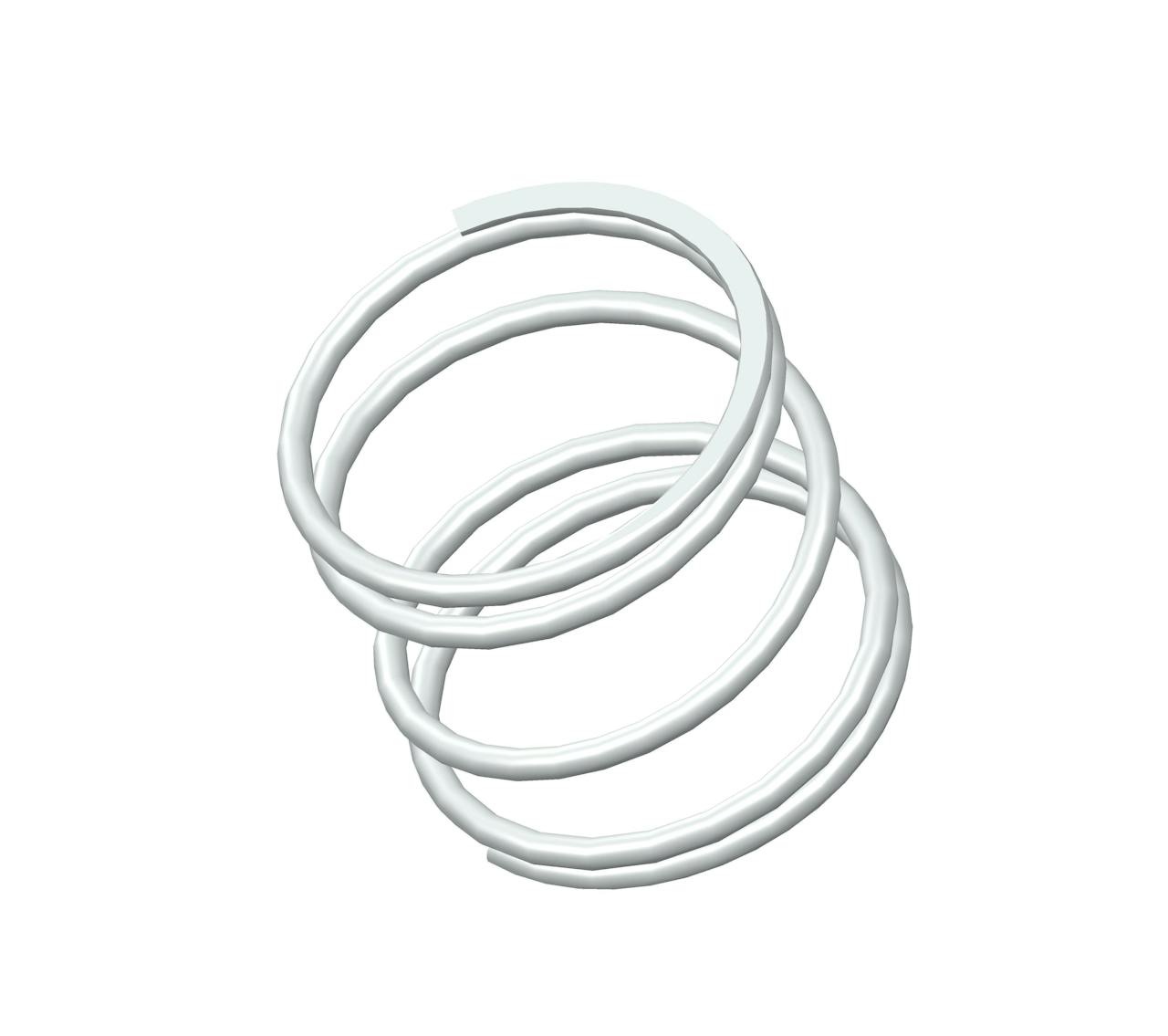

S-239CS - 2.13" 302/304 Stainless Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |
Compression spring manufactured from 302/304 stainless steel with 4.67 coils and closed ends. This spring features an O.D. of 2.343", and an I.D. of 2.047".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | S-239 |
| Ends | Closed |
| Finish | None |
| Free Length | 2.13 in |
| Inside Diameter | 2.047 in |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 2.343 in |
| Part Type | Standard |
| Rate | 22 lbs/in |
| SKU | S-239CS |
| Solid Length | 0.83 in |
| Suggested Max Deflection | 1.3 in |
| Suggested Max Load | 28 lbf |
| Total Coils | 4.67 |
| Wire Diameter | 0.148 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | S-239 |
| Ends | Closed |
| Finish | None |
| Free Length | 54.1 mm |
| Inside Diameter | 51.99 mm |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 59.51 mm |
| Part Type | Standard |
| Rate | 3.85 N/mm |
| SKU | S-239CS |
| Solid Length | 21.08 mm |
| Suggested Max Deflection | 33.02 mm |
| Suggested Max Load | 124.54 N |
| Total Coils | 4.67 |
| Wire Diameter | 3.76 mm |
The compression spring S-239CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality 302/304 stainless steel, the S-239 compression spring design exhibits exceptional tensile strength and resilience.
The S-239 design is manufactured with a free length of 2.13", with an outer diameter of 2.343", an inner diameter of 2.047", and a total of 4.67 coils, expertly designed to deliver consistent compression characteristics including a rate of 22 lbs/in.
The S-239CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring S-239 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
The S-239 design is manufactured with a free length of 2.13", with an outer diameter of 2.343", an inner diameter of 2.047", and a total of 4.67 coils, expertly designed to deliver consistent compression characteristics including a rate of 22 lbs/in.
The S-239CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring S-239 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
