TO-5038RSCS - 180 Degree, 0.0021 Inch-Pounds per Degree Rate 302/304 Stainless Steel Torsion Spring

Inventory:
Estimated Lead Time

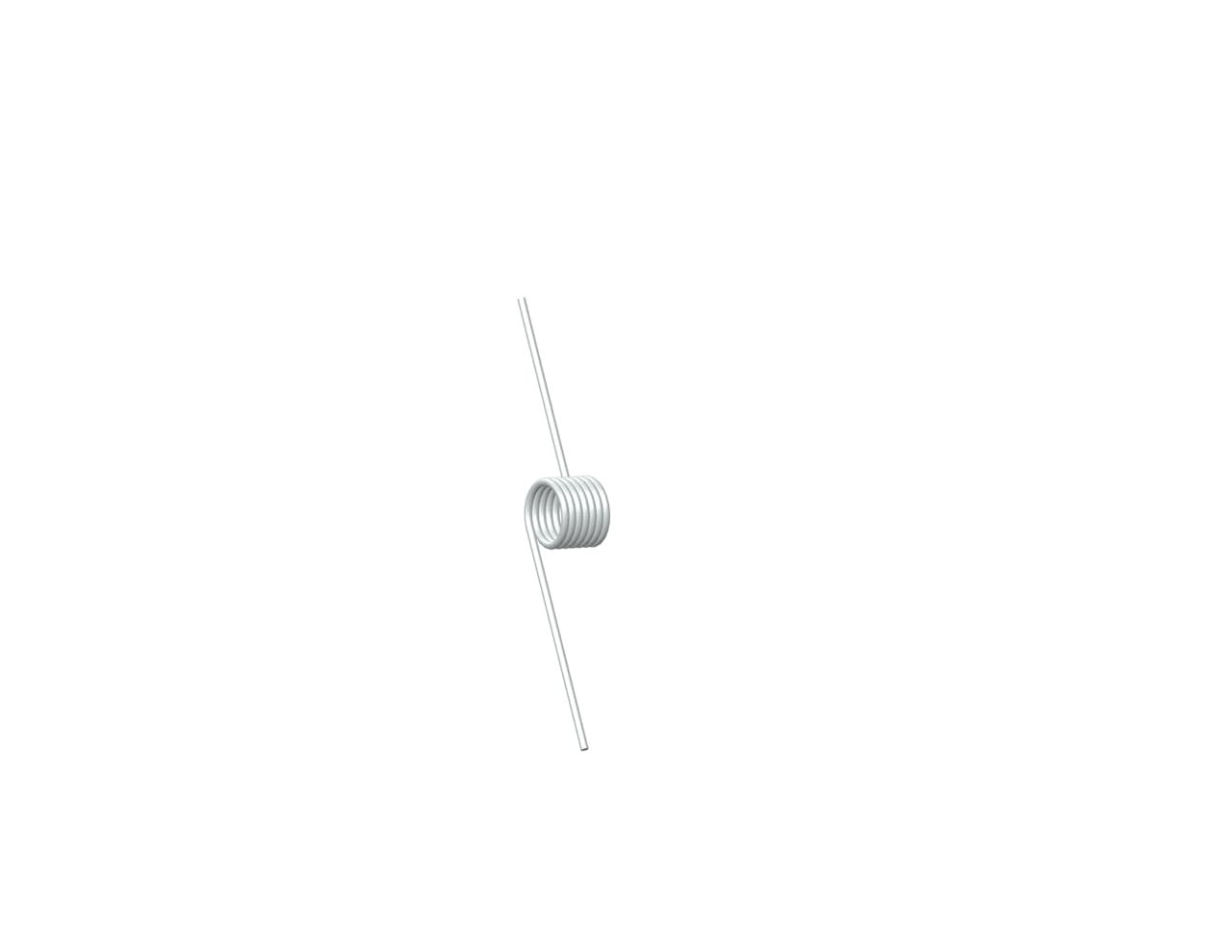

Torsion spring in 302/304 Stainless Steel with 7 total coils and 0.75 Inch legs. This spring features an O.D. of 0.225 Inch, an I.D. of 0.175 Inch, and a spring rate of 0.0021 Inch-Pounds per Degree.

Download CAD
Unit System
Specs (in standard)
Label Value
Angle Between Legs 180 deg
Body Length 0.22 in
Brand Century Spring
Display Name TO-5038RS
Finish None
Inside Diameter 0.175 in
Leg Length 0.75 in
Mandrel Diameter 0.14 in
Material 302/304 Stainless Steel
Max Deflection (deg) (suggested) 140
Max Torque (suggested) 0.3 lbs/in
Measurement Units Standard
Outside Diameter 0.225 in
Rate 0.0021 lbf-in/deg
SKU TO-5038RSCS
Total Coils 7
Wind Direction Right
Wire Diameter 0.025 in
Specs (in metric)
Label Value
Angle Between Legs 180 deg
Body Length 5.59 mm
Brand Century Spring
Display Name TO-5038RS
Finish None
Inside Diameter 4.45 mm
Leg Length 19.05 mm
Mandrel Diameter 3.56 mm
Material 302/304 Stainless Steel
Max Deflection (deg) (suggested) 140
Max Torque (suggested) 0.05 N-mm
Measurement Units Standard
Outside Diameter 5.72 mm
Rate 0.24 N-mm/deg
SKU TO-5038RSCS
Total Coils 7
Wind Direction Right
Wire Diameter 0.64 mm
