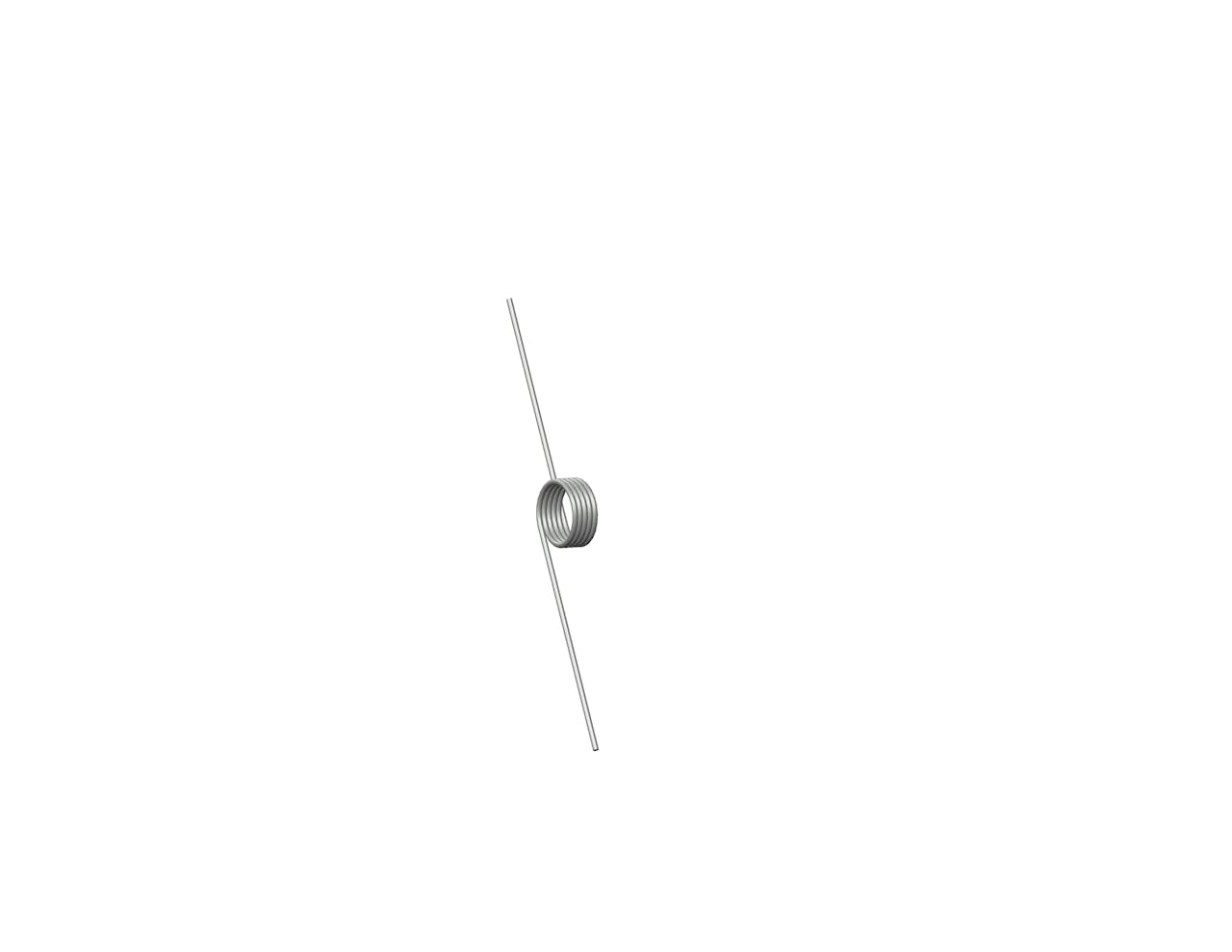

TO-5036RCS - 180 Degree, 0.0008 Inch-Pounds per Degree Rate Music Wire Torsion Spring

Inventory:
Estimated Lead Time

Torsion spring in Music Wire with 5 total coils and 0.75 Inch legs. This spring features an O.D. of 0.217 Inch, an I.D. of 0.181 Inch, and a spring rate of 0.0008 Inch-Pounds per Degree.

Download CAD
Unit System
Specs (in standard)
Label Value
Angle Between Legs 180 deg
Body Length 0.12 in
Brand Century Spring
Display Name TO-5036R
Finish None
Inside Diameter 0.181 in
Leg Length 0.75 in
Mandrel Diameter 0.14 in
Material Music Wire
Max Deflection (deg) (suggested) 166
Max Torque (suggested) 0.14 lbs-in
Measurement Units Standard
Outside Diameter 0.217 in
Rate 0.0008 lbf-in/deg
SKU TO-5036RCS
Total Coils 5
Wind Direction Right
Wire Diameter 0.018 in
Specs (in metric)
Label Value
Angle Between Legs 180 deg
Body Length 3.05 mm
Brand Century Spring
Display Name TO-5036R
Finish None
Inside Diameter 4.6 mm
Leg Length 19.05 mm
Mandrel Diameter 3.56 mm
Material Music Wire
Max Deflection (deg) (suggested) 166
Max Torque (suggested) 0.02 N-mm
Measurement Units Standard
Outside Diameter 5.51 mm
Rate 0.09 N-mm/deg
SKU TO-5036RCS
Total Coils 5
Wind Direction Right
Wire Diameter 0.46 mm
