50344SCS - 0.827" 316 Stainless Steel Compression Spring

Inventory Status
Estimated Lead Time

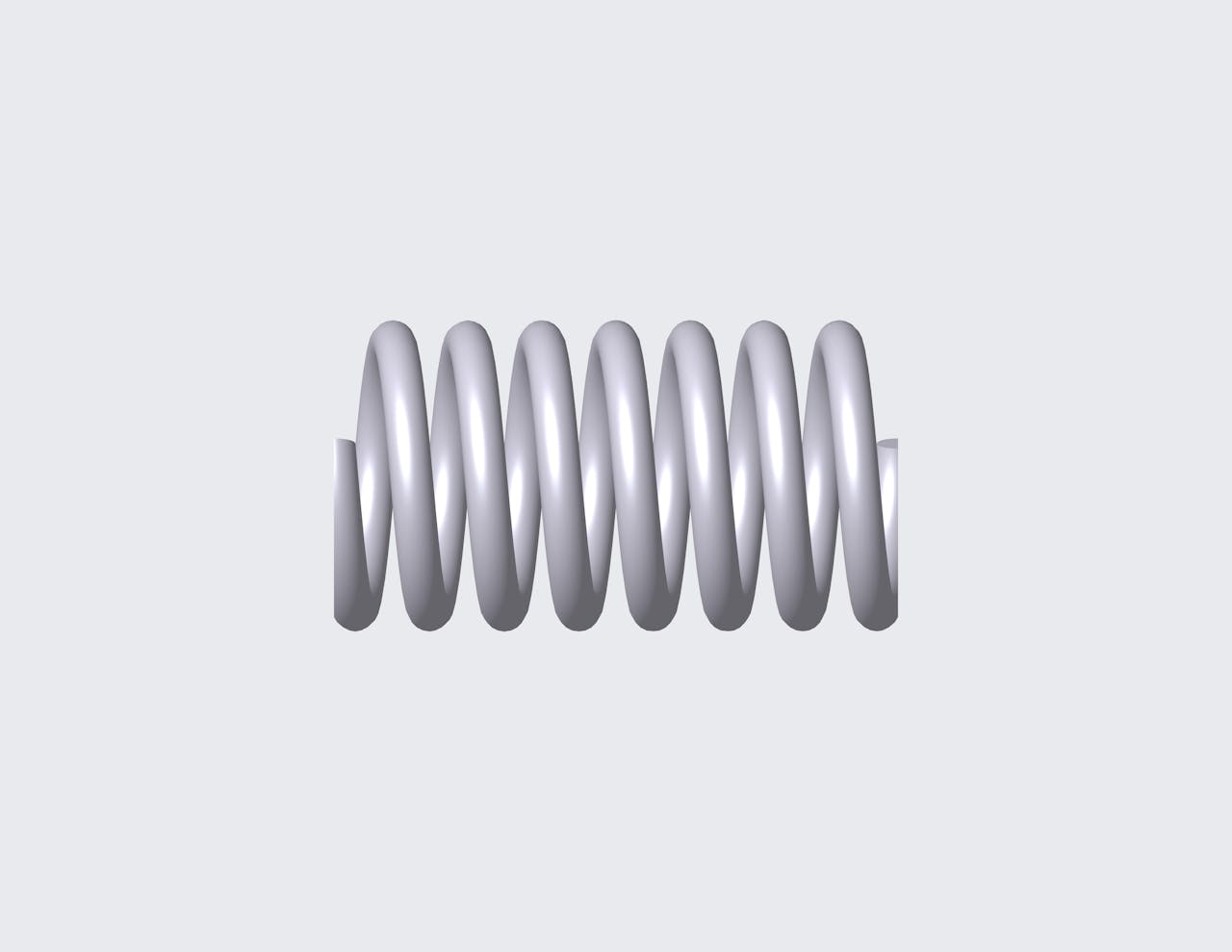

Compression spring manufactured from 316 stainless steel with 7 coils and closed & ground ends. This spring features an O.D. of 0.457", and an I.D. of 0.332".

Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 50344S
Ends Closed & Ground
Finish Passivated
Free Length 0.827 in
Inside Diameter 0.332 in
Material 316 Stainless Steel
Outside Diameter 0.457 in
Rate 64.504 lbs/in
SKU 50344SCS
Solid Length 0.441 in
Suggested Max Deflection 0.234 in
Suggested Max Load 15.09 lbf
Total Coils 7
Wire Diameter 0.0625 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 50344S
Ends Closed & Ground
Finish Passivated
Free Length 21.01 mm
Inside Diameter 8.43 mm
Material 316 Stainless Steel
Outside Diameter 11.61 mm
Rate 11.29 N/mm
SKU 50344SCS
Solid Length 11.2 mm
Suggested Max Deflection 5.94 mm
Suggested Max Load 67.12 N
Total Coils 7
Wire Diameter 1.59 mm
The compression spring 50344SCS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality 316 stainless steel, the 50344S compression spring design exhibits exceptional tensile strength and resilience.

The 50344S design is manufactured with a free length of 0.827", with an outer diameter of 0.457", an inner diameter of 0.332", and a total of 7 coils, expertly designed to deliver consistent compression characteristics including a rate of 64.504 lbs/in.

The 50344SCS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.

In summary, the compression spring 50344S design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
