TO-5021LCS - 270 Degree, 0.0009 Inch-Pounds per Degree Rate Music Wire Torsion Spring

Inventory:
Estimated Lead Time

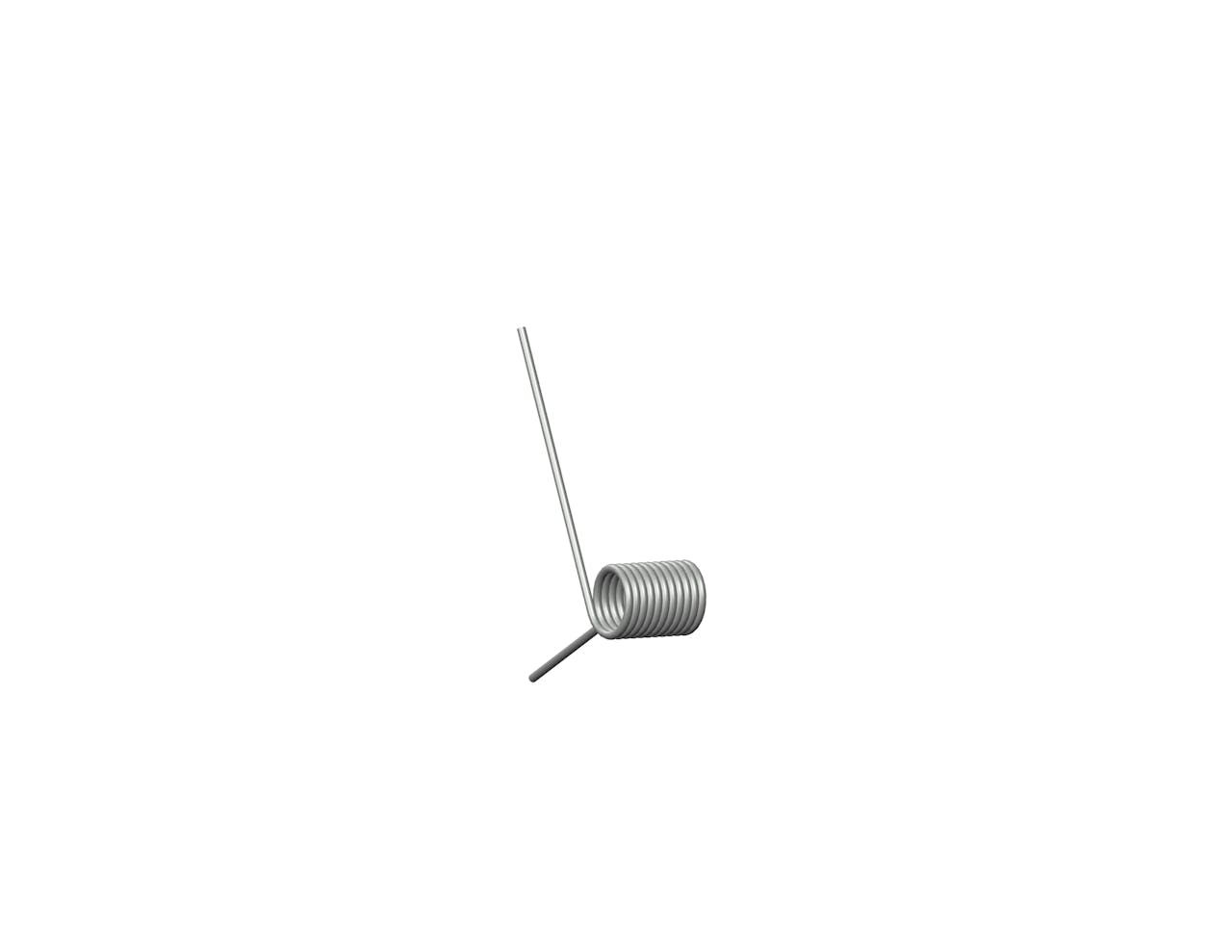

Torsion spring in Music Wire with 10.75 total coils and 0.75 Inch legs. This spring features an O.D. of 0.185 Inch, an I.D. of 0.143 Inch, and a spring rate of 0.0009 Inch-Pounds per Degree.

Download CAD
Unit System
Specs (in standard)
Label Value
Angle Between Legs 270 deg
Body Length 0.27 in
Brand Century Spring
Display Name TO-5021L
Finish None
Inside Diameter 0.143 in
Leg Length 0.75 in
Mandrel Diameter 0.11 in
Material Music Wire
Max Deflection (deg) (suggested) 232
Max Torque (suggested) 0.22 lbs-in
Measurement Units Standard
Outside Diameter 0.185 in
Rate 0.0009 lbf-in/deg
SKU TO-5021LCS
Total Coils 10.75
Wind Direction Left
Wire Diameter 0.021 in
Specs (in metric)
Label Value
Angle Between Legs 270 deg
Body Length 6.86 mm
Brand Century Spring
Display Name TO-5021L
Finish None
Inside Diameter 3.63 mm
Leg Length 19.05 mm
Mandrel Diameter 2.79 mm
Material Music Wire
Max Deflection (deg) (suggested) 232
Max Torque (suggested) 0.04 N-mm
Measurement Units Standard
Outside Diameter 4.7 mm
Rate 0.1 N-mm/deg
SKU TO-5021LCS
Total Coils 10.75
Wind Direction Left
Wire Diameter 0.53 mm
