Century Spring

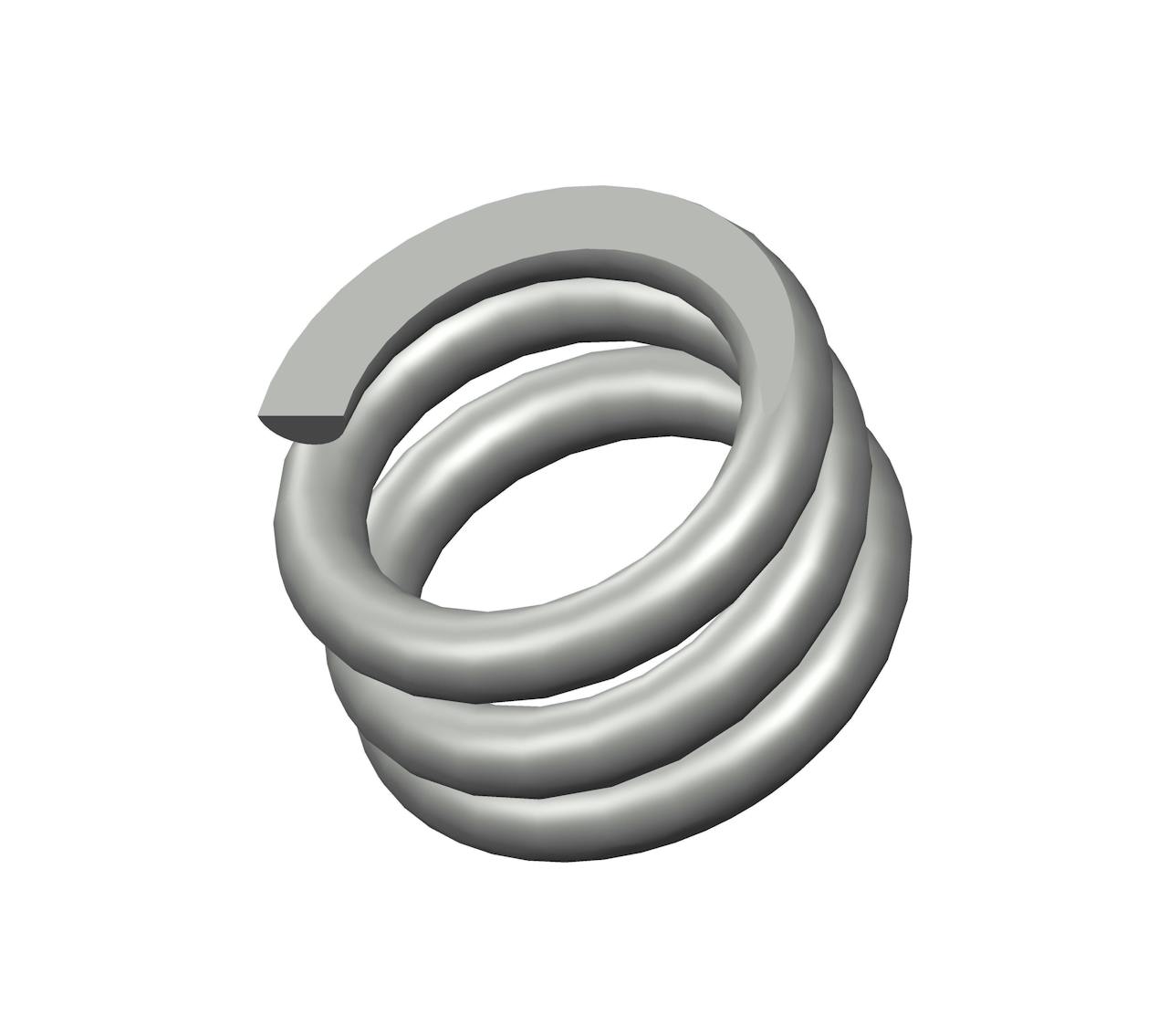

4328CS - 1.63" Spring Steel Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from spring steel with 3 coils and closed & ground ends. This spring features an O.D. of 2.812", and an I.D. of 1.938".

NOTE: The spring rate value for compression springs with 4 coils or less is a reference value.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 4328
Ends Closed & Ground
Finish Zinc
Free Length 1.63 in
Inside Diameter 1.938 in
Material Spring Steel
Outside Diameter 2.812 in
Part Type Standard
Rate 3913 lbs/in
SKU 4328CS
Solid Length 1.31 in
Suggested Max Deflection 0.18 in
Suggested Max Load 693 lbf
Total Coils 3
Wire Diameter 0.437 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 4328
Ends Closed & Ground
Finish Zinc
Free Length 41.4 mm
Inside Diameter 49.23 mm
Material Spring Steel
Outside Diameter 71.42 mm
Part Type Standard
Rate 685.17 N/mm
SKU 4328CS
Solid Length 33.27 mm
Suggested Max Deflection 4.57 mm
Suggested Max Load 3082.46 N
Total Coils 3
Wire Diameter 11.1 mm
The 4328CS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.437" diameter spring steel, the 4328 spring design exhibits reliable strength across its 3 active coils, withstanding repeated compression cycles with a maximum load of 693 lbf without succumbing to fatigue.

We manufacture the 4328 design to provide a compression spring that is 1.63" long at rest and provides a consistent rate of 3913 lbs/in along its recommended maximum of 0.18" deflection. For best results, your application should fully accommodate the inner (1.938") and outer (2.812") diameters of this spring and be designed for its closed & ground end configuration.
