TO-1055CS - 315 Degree, 0.0699 Inch-Pounds per Degree Rate Spring Steel Torsion Spring

Inventory:
Estimated Lead Time

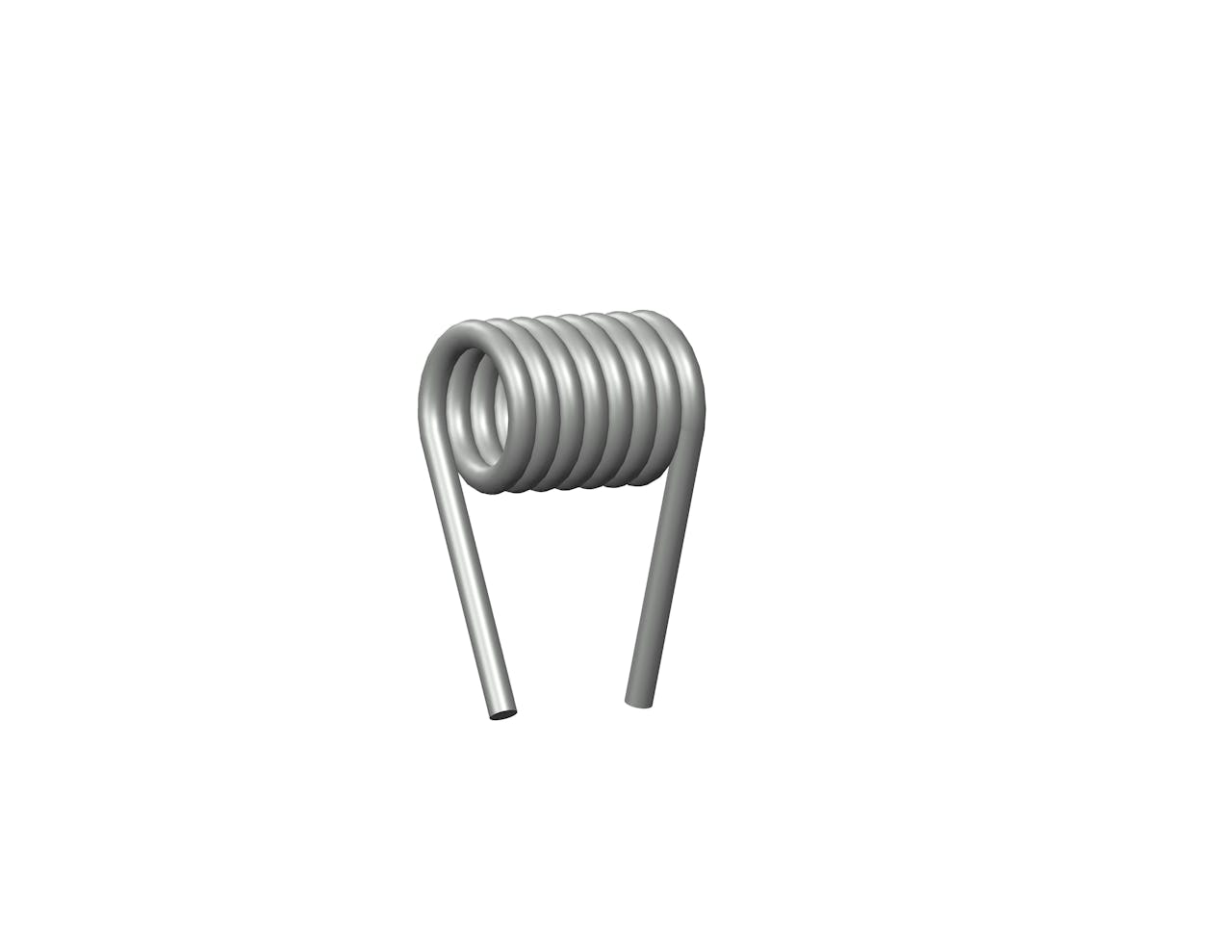

Torsion spring in Spring Steel with 7.625 total coils and 0.75 Inch legs. This spring features an O.D. of 0.439 Inch, an I.D. of 0.297 Inch, and a spring rate of 0.0699 Inch-Pounds per Degree.

Download CAD
Unit System
Specs (in standard)
Label Value
Angle Between Legs 315 deg
Body Length 0.67 in
Brand Century Spring
Display Name TO-1055
Finish Gold Iridite
Inside Diameter 0.297 in
Leg Length 0.75 in
Mandrel Diameter 0.25 in
Material Spring Steel
Max Deflection (deg) (suggested) 73
Max Torque (suggested) 5.1 lbs-in
Measurement Units Standard
Outside Diameter 0.439 in
Rate 0.0699 lbf-in/deg
SKU TO-1055CS
Total Coils 7.625
Wind Direction Right
Wire Diameter 0.071 in
Specs (in metric)
Label Value
Angle Between Legs 315 deg
Body Length 17.02 mm
Brand Century Spring
Display Name TO-1055
Finish Gold Iridite
Inside Diameter 7.54 mm
Leg Length 19.05 mm
Mandrel Diameter 6.35 mm
Material Spring Steel
Max Deflection (deg) (suggested) 73
Max Torque (suggested) 0.89 N-mm
Measurement Units Standard
Outside Diameter 11.15 mm
Rate 7.9 N-mm/deg
SKU TO-1055CS
Total Coils 7.63
Wind Direction Right
Wire Diameter 1.8 mm
