76492CS - 3.543" Music Wire Compression Spring

Inventory Status
Estimated Lead Time

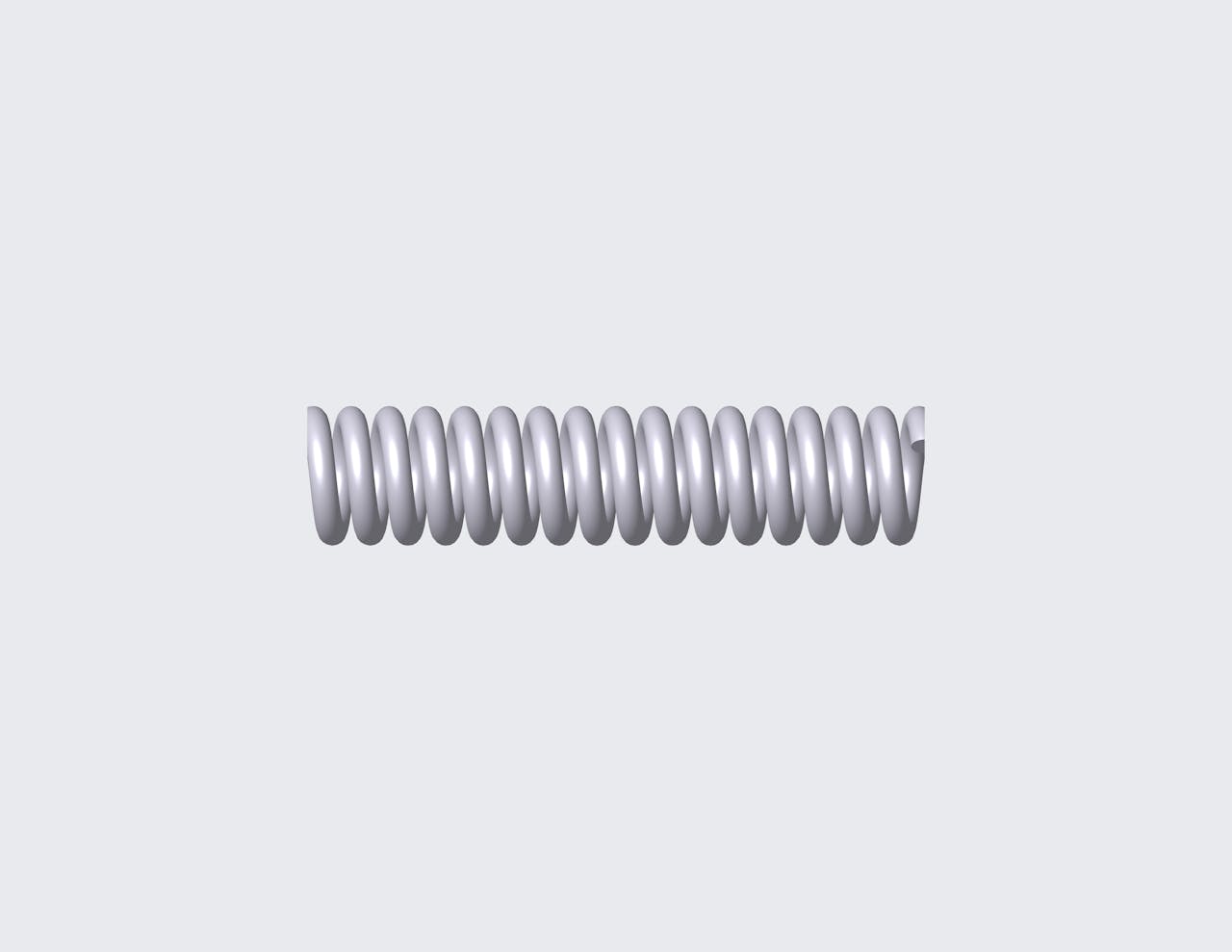

Compression spring manufactured from music wire with 15.6 coils and closed & ground ends. This spring features an O.D. of 0.803", and an I.D. of 0.488".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 76492
Ends Closed & Ground
Finish None
Free Length 3.543 in
Inside Diameter 0.488 in
Material Music Wire
Outside Diameter 0.803 in
Part Type Metric
Rate 241.516 lbs/in
SKU 76492CS
Solid Length 2.457 in
Suggested Max Deflection 0.798 in
Suggested Max Load 192.797 lbf
Total Coils 15.6
Wire Diameter 0.157 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 76492
Ends Closed & Ground
Finish None
Free Length 89.99 mm
Inside Diameter 12.4 mm
Material Music Wire
Outside Diameter 20.4 mm
Part Type Metric
Rate 42.29 N/mm
SKU 76492CS
Solid Length 62.41 mm
Suggested Max Deflection 20.27 mm
Suggested Max Load 857.56 N
Total Coils 15.6
Wire Diameter 3.99 mm
The 76492CS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.157" diameter music wire, the 76492 spring design exhibits reliable strength across its 15.6 active coils, withstanding repeated compression cycles with a maximum load of 192.797 lbf without succumbing to fatigue.

We manufacture the 76492 design to provide a compression spring that is 3.543" long at rest and provides a consistent rate of 241.516 lbs/in along its recommended maximum of 0.798" deflection. For best results, your application should fully accommodate the inner (0.488") and outer (0.803") diameters of this spring and be designed for its closed & ground end configuration.
