Maryland Precision Spring

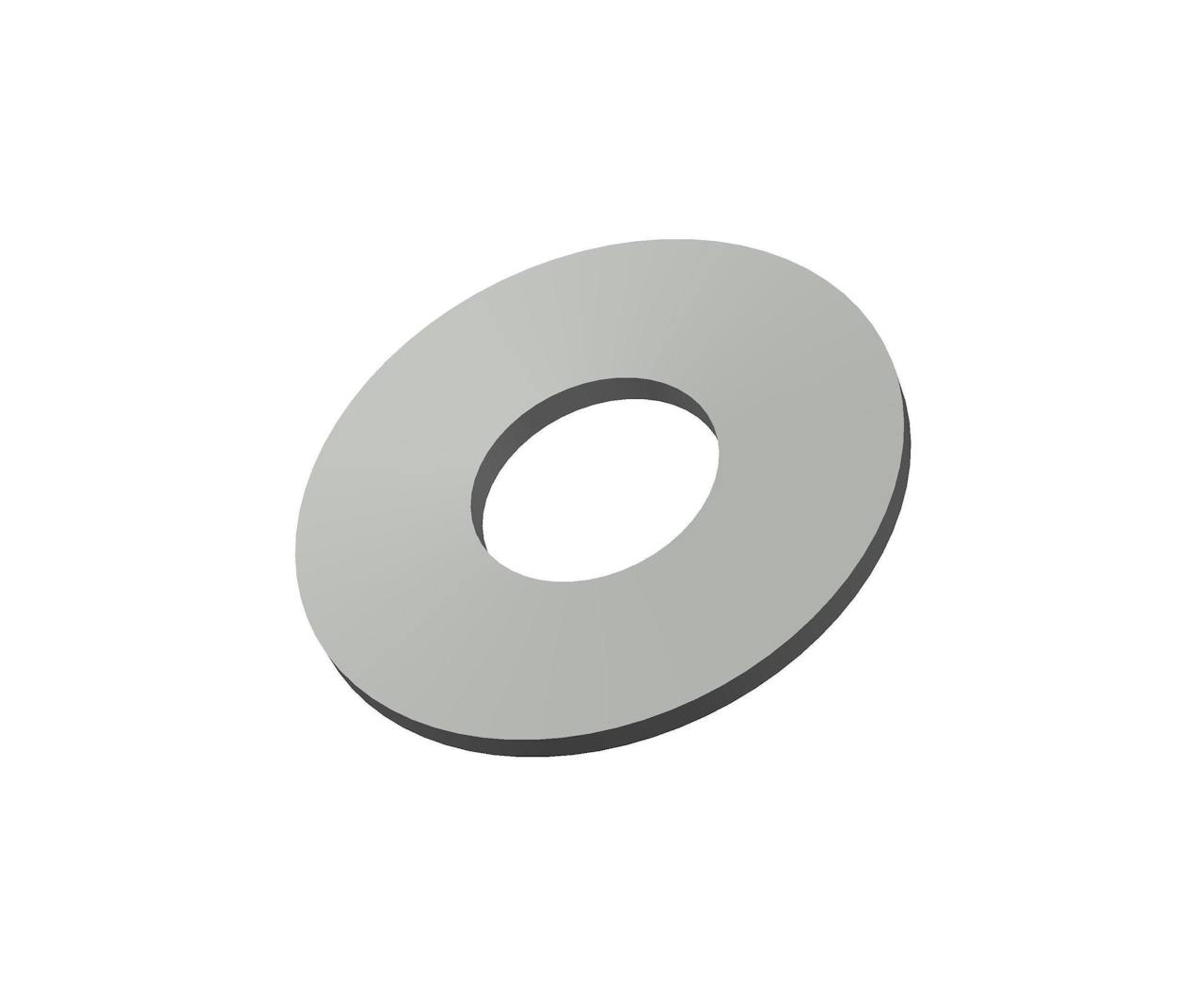

AI-953847 - 0.38 Inch ID 0.95 Inch OD 1075 High Carbon Steel Disc Spring Washer

Inventory:
Estimated Lead Time

Disc spring manufactured from 1075 High Carbon Steel with an inside diameter of 0.38 Inch and an outside diameter of 0.95 Inch.

Unit System
Specs (in standard)
Label Value
Bolt Size 0.375
Brand Maryland Precision Spring
Display Name AI-953847
Finish Plain
H 0.023 in
Inside Diameter 0.38 in
Material 1075 High Carbon Steel
Maximum Deflection at 100% Height 0.023 in
Maximum Force at 100% Height 484 lb
Measurement Units Standard
Outside Diameter 0.95 in
Outside Height 0.07 in
SKU AI-953847
T 0.047 in
Specs (in metric)
Label Value
Bolt Size 0.38
Brand Maryland Precision Spring
Display Name AI-953847
Finish Plain
H 0.58 mm
Inside Diameter 9.65 mm
Material 1075 High Carbon Steel
Maximum Deflection at 100% Height 0.58 mm
Maximum Force at 100% Height 219.5 kg
Measurement Units Standard
Outside Diameter 24.13 mm
Outside Height 1.78 mm
SKU AI-953847
T 1.19 mm
