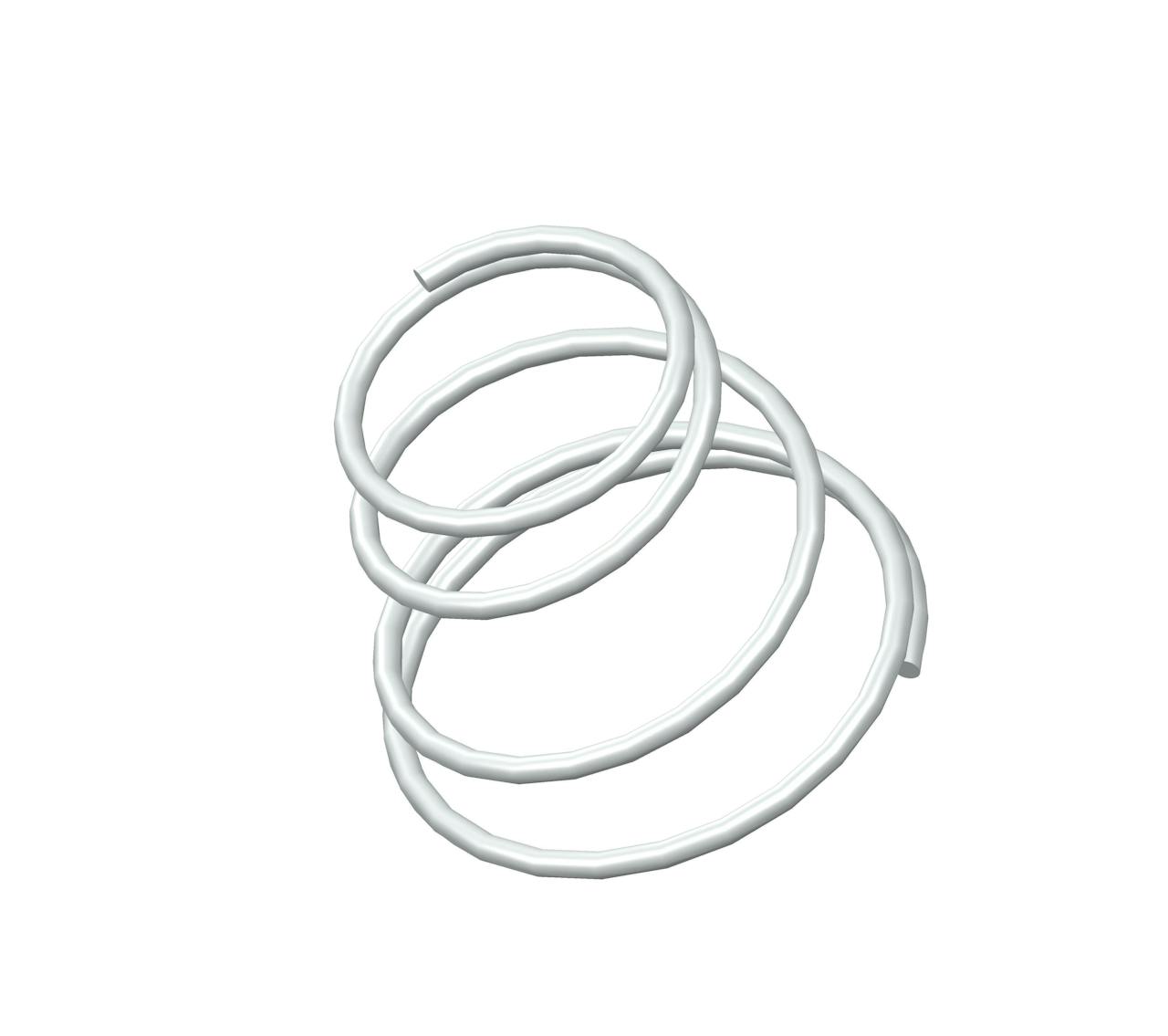

TA-7066SCS - 0.56 Inch-0.85 Inch O.D., 0.042 Inch Wire 302/304 Stainless Steel Constant Force Tapered Spring

Inventory:
Estimated Lead Time

Constant force tapered compression spring in 302/304 Stainless Steel with 0.75 Inch approximate free length. The OD of this spring tapers from 0.56 Inch to 0.85 Inch.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name TA-7066S
Ends Closed
Finish None
Free Length 0.75 in
Large Outside Diameter 0.85 in
Material 302/304 Stainless Steel
Measurement Units Standard
Rate 6.28 lbs/in
SKU TA-7066SCS
Small Outside Diameter 0.56 in
Wire Diameter 0.042 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name TA-7066S
Ends Closed
Finish None
Free Length 19.05 mm
Large Outside Diameter 21.59 mm
Material 302/304 Stainless Steel
Measurement Units Standard
Rate 1.1 N/mm
SKU TA-7066SCS
Small Outside Diameter 14.22 mm
Wire Diameter 1.07 mm
