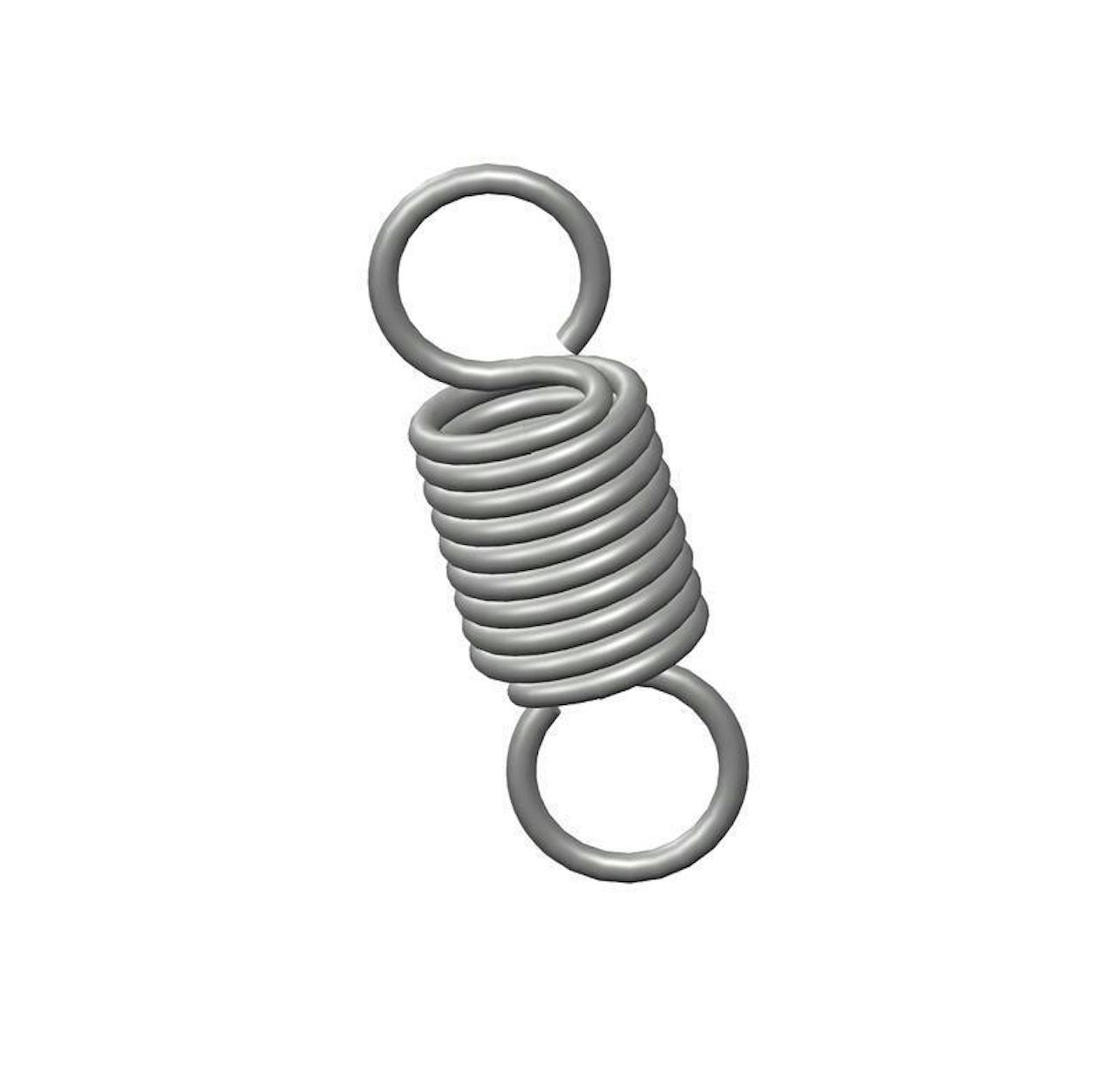

81016CS - 3 Inch Music Wire Extension Spring

Inventory:
Estimated Lead Time

Regular extension spring in Music Wire. This spring features an O.D. of 1 Inch and an initial tension of 6 Pound.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 81016
Ends Full Loop
Finish None
Initial Tension 6 lb
Length 3 in
Material Music Wire
Outside Diameter 1 in
Part Type Standard
Rate 52 lbs/in
SKU 81016CS
Sugg Max Deflection 1.3 in
Sugg Max Load 73 lbf
Wire Diameter 0.125 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 81016
Ends Full Loop
Finish None
Initial Tension 2.72 kg
Length 76.2 mm
Material Music Wire
Outside Diameter 25.4 mm
Part Type Standard
Rate 9.11 N/mm
SKU 81016CS
Sugg Max Deflection 33.02 mm
Sugg Max Load 324.7 N
Wire Diameter 3.18 mm
