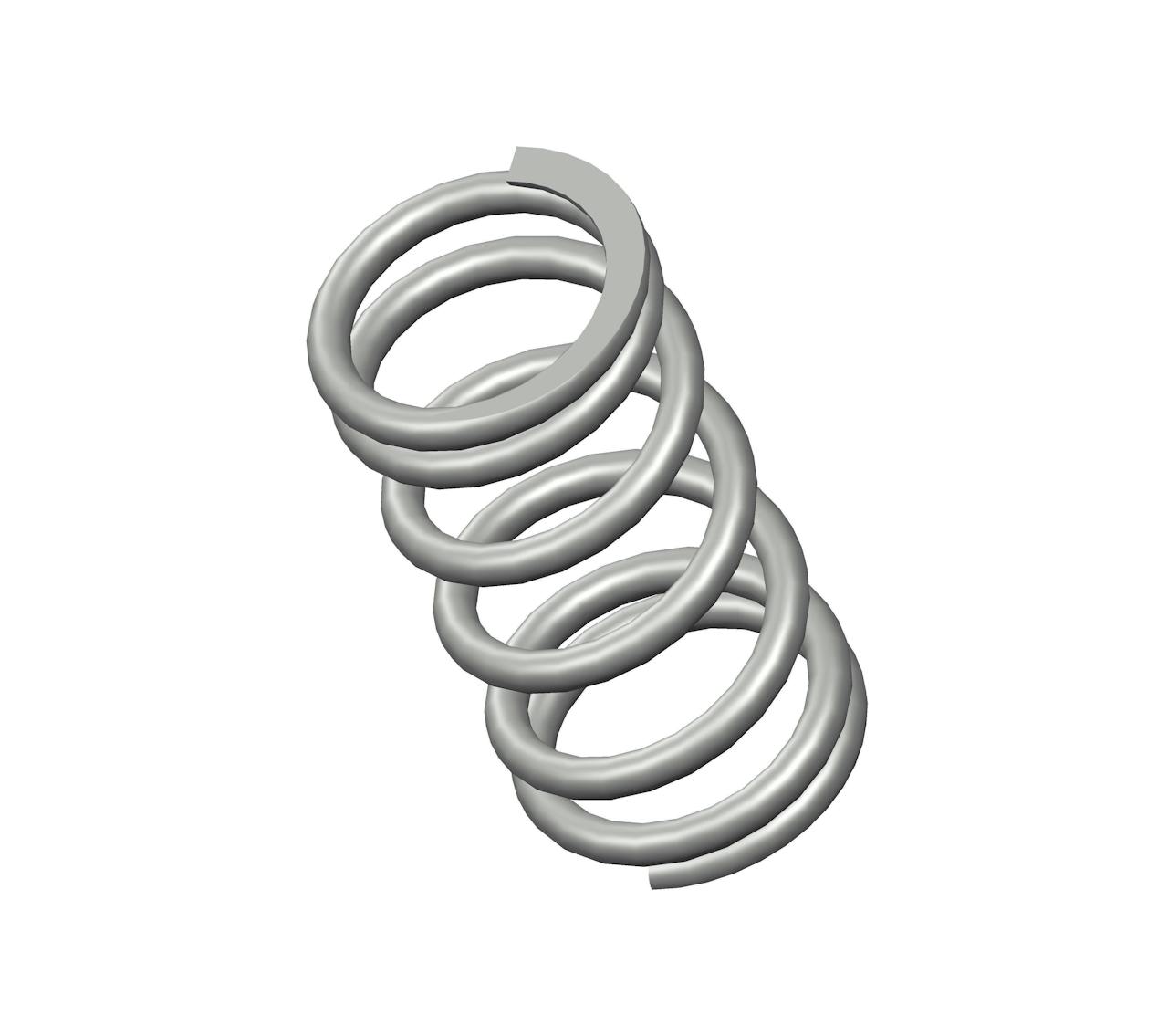

B1-25CS - 0.25" Music Wire Compression Spring
|
Inventory:
|
|
| Estimated Lead Time | |
|---|---|
Compression spring manufactured from music wire with 6.5 coils and closed & ground ends. This spring features an O.D. of 0.125", and an I.D. of 0.095".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | B1-25 |
| Ends | Closed & Ground |
| Finish | Gold Iridite |
| Free Length | 0.25 in |
| Inside Diameter | 0.095 in |
| Material | Music Wire |
| Outside Diameter | 0.125 in |
| Part Type | Standard |
| Rate | 12 lbs/in |
| SKU | B1-25CS |
| Solid Length | 0.1 in |
| Suggested Max Deflection | 0.13 in |
| Suggested Max Load | 1.6 lbf |
| Total Coils | 6.5 |
| Wire Diameter | 0.015 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | B1-25 |
| Ends | Closed & Ground |
| Finish | Gold Iridite |
| Free Length | 6.35 mm |
| Inside Diameter | 2.41 mm |
| Material | Music Wire |
| Outside Diameter | 3.18 mm |
| Part Type | Standard |
| Rate | 2.1 N/mm |
| SKU | B1-25CS |
| Solid Length | 2.54 mm |
| Suggested Max Deflection | 3.3 mm |
| Suggested Max Load | 7.12 N |
| Total Coils | 6.5 |
| Wire Diameter | 0.38 mm |
The B1-25 compression spring is engineered for optimal performance in demanding applications. Constructed from high-quality music wire and designed with precision and durability in mind, this spring is an essential component for a variety of mechanical systems where reliable force and resilience are paramount.
The B1-25CS compression spring is designed with a free length of 0.44" total of 4.5 coils, and a rate of 9.9 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.
The B1-25 spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
The B1-25CS compression spring is designed with a free length of 0.44" total of 4.5 coils, and a rate of 9.9 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.
The B1-25 spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
