Century Spring

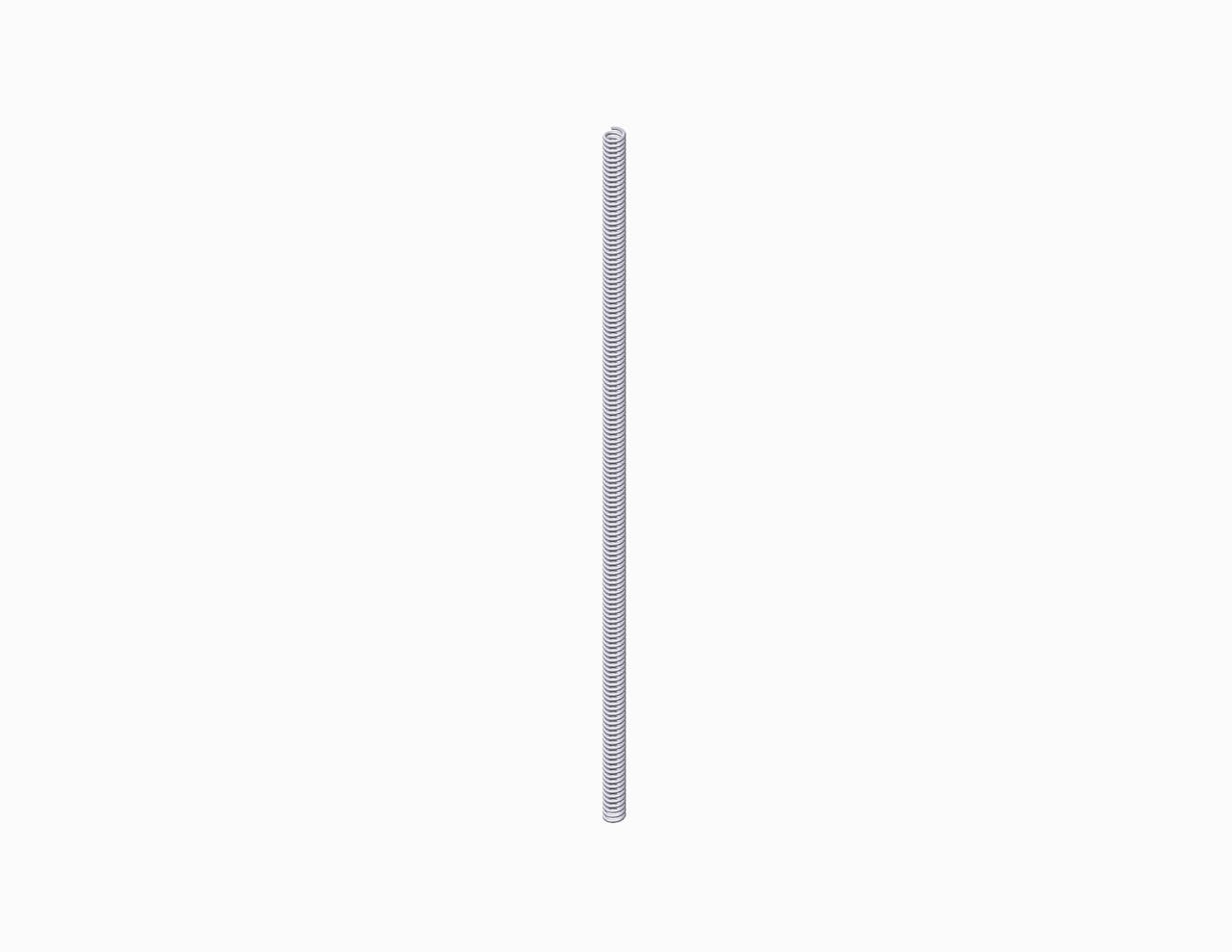

ST9-91CS - 0.562 Inch O.D. Long Compression Spring

Inventory Status
Estimated Lead Time

Long-length compression spring in 302/304 Stainless Steel. This spring features an O.D. of 0.562 Inch, and an I.D. of 0.38 Inch.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name ST9-91
Finish None
Inside Diameter 0.38 in
Length 20 in
Material 302/304 Stainless Steel
Measurement Units Standard
Outside Diameter 0.562 in
Pitch 0.142 in
Product Image ST9_91CS
Rate 128.0004 lbs/in
Rate Constant 10.6667 lbf
SKU ST9-91CS
Solid Length Constant 0.67 in
Solid Length Per 0.67 lb
Suggested Max Load 46 lbf
Wire Diameter 0.091 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name ST9-91
Finish None
Inside Diameter 9.65 mm
Length 508 mm
Material 302/304 Stainless Steel
Measurement Units Standard
Outside Diameter 14.27 mm
Pitch 3.61 mm
Product Image ST9_91CS
Rate 22.41 N-mm
Rate Constant 1868.03 N
SKU ST9-91CS
Solid Length Constant 17.02 mm
Solid Length Per 0.3 kg
Suggested Max Load 204.61 N
Wire Diameter 2.31 mm
