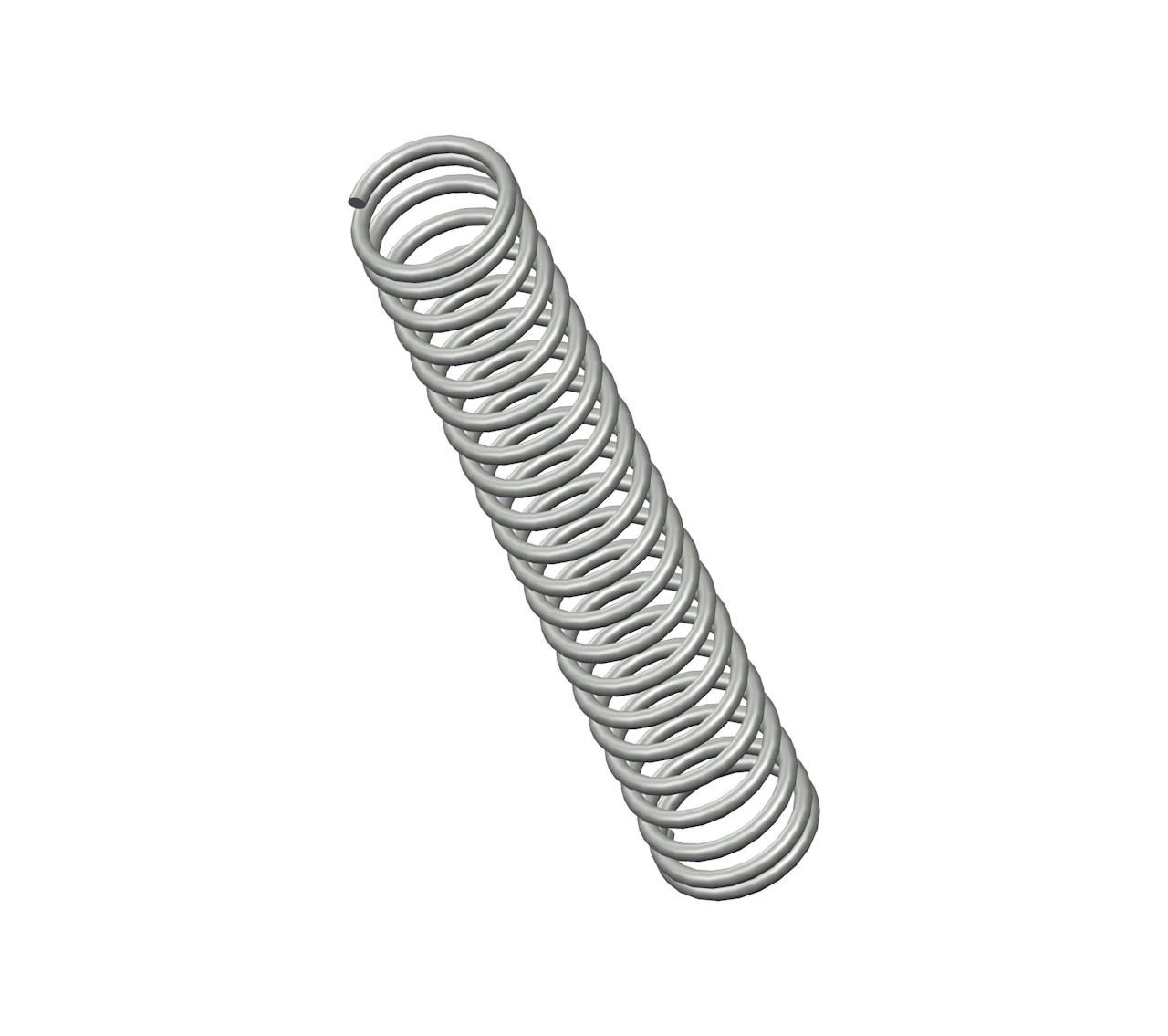

M-10CS - 2" Spring Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |
Compression spring manufactured from spring steel with 21 coils and closed ends. This spring features an O.D. of 0.343", and an I.D. of 0.271".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | M-10 |
| Ends | Closed |
| Finish | None |
| Free Length | 2 in |
| Inside Diameter | 0.271 in |
| Material | Spring Steel |
| Outside Diameter | 0.343 in |
| Part Type | Standard |
| Rate | 4.4 lbs/in |
| SKU | M-10CS |
| Solid Length | 0.79 in |
| Suggested Max Deflection | 1.2 in |
| Suggested Max Load | 5.2 lbf |
| Total Coils | 21 |
| Wire Diameter | 0.036 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | M-10 |
| Ends | Closed |
| Finish | None |
| Free Length | 50.8 mm |
| Inside Diameter | 6.88 mm |
| Material | Spring Steel |
| Outside Diameter | 8.71 mm |
| Part Type | Standard |
| Rate | 0.77 N/mm |
| SKU | M-10CS |
| Solid Length | 20.07 mm |
| Suggested Max Deflection | 30.48 mm |
| Suggested Max Load | 23.13 N |
| Total Coils | 21 |
| Wire Diameter | 0.91 mm |
The M-10 compression spring is engineered for optimal performance in demanding applications. Constructed from high-quality spring steel and designed with precision and durability in mind, this spring is an essential component for a variety of mechanical systems where reliable force and resilience are paramount.
The M-10CS compression spring is designed with a free length of 0.66" total of 6.5 coils, and a rate of 2.8 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.
The M-10 spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
The M-10CS compression spring is designed with a free length of 0.66" total of 6.5 coils, and a rate of 2.8 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.
The M-10 spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
