Servometer

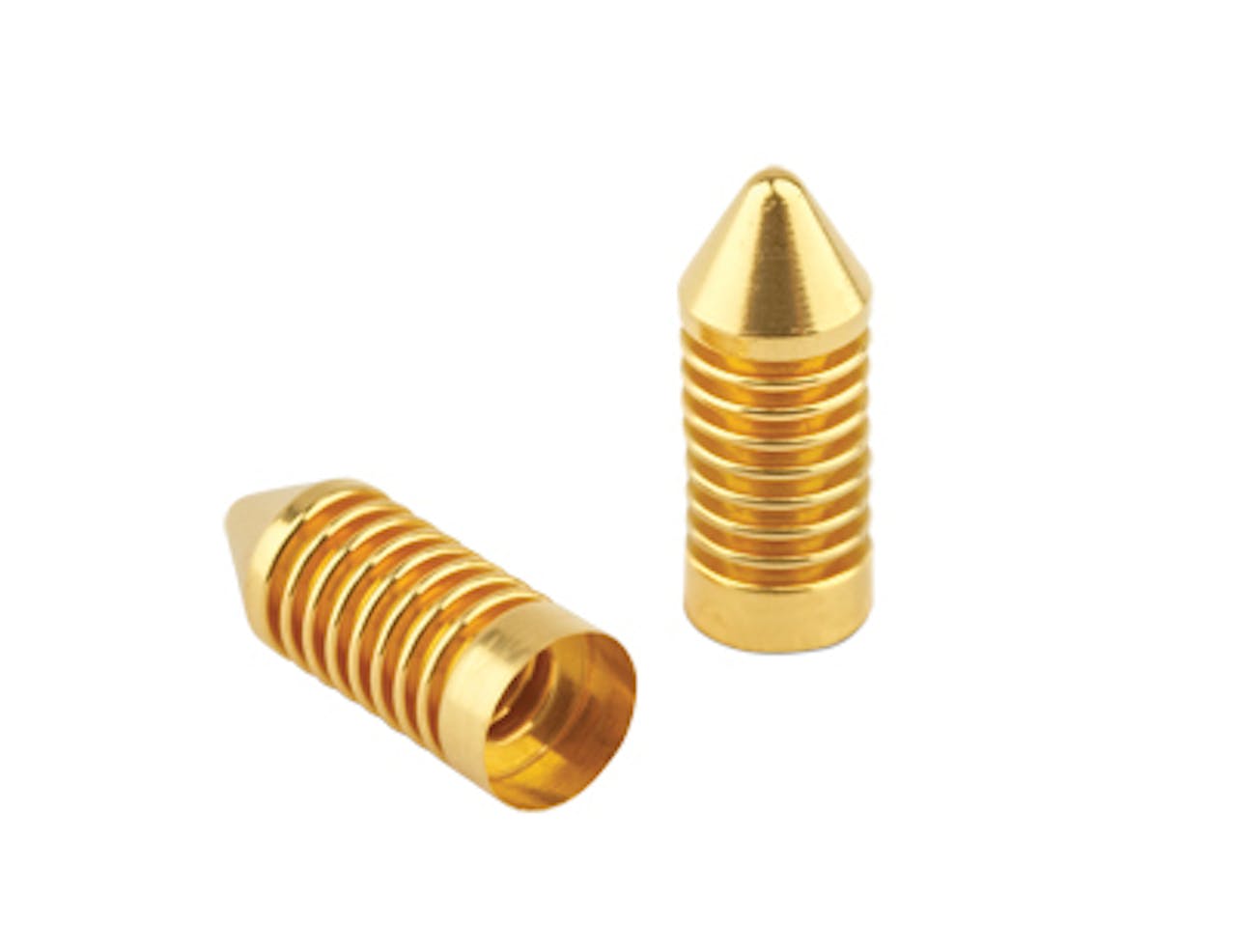

SK-18642 - 0.066 Inch OD Interconnecting Electrical Contact

Inventory:
Estimated Lead Time

Electrical contacts designed to interconnect and provide flexible connections, with an overall length of 0.17 Inch, allowing for a stroke of 0.02 Inch, and coated in .00005" Gold.

Download CAD
Unit System
Specs (in standard)
Label Value
Angular Misalignment 22 deg
Brand Servometer
C 0.092 in
Display Name SK-18642
End Type Male
Finish .00005" Gold
Length L 0.17 in
Metallic Resistance 0.019
Minimum Force 0.755 oz
Outside Diameter 0.066 in
Parallel Offset 0.007 in
SKU SK-18642
Stroke 0.02 in
Total Coils 8
Specs (in metric)
Label Value
Angular Misalignment 22 deg
Brand Servometer
C 2.34 mm
Display Name SK-18642
End Type Male
Finish .00005" Gold
Length L 4.32 mm
Metallic Resistance 0.02
Minimum Force 21.4 g
Outside Diameter 1.68 mm
Parallel Offset 0.18 mm
SKU SK-18642
Stroke 0.51 mm
Total Coils 8
