Servometer

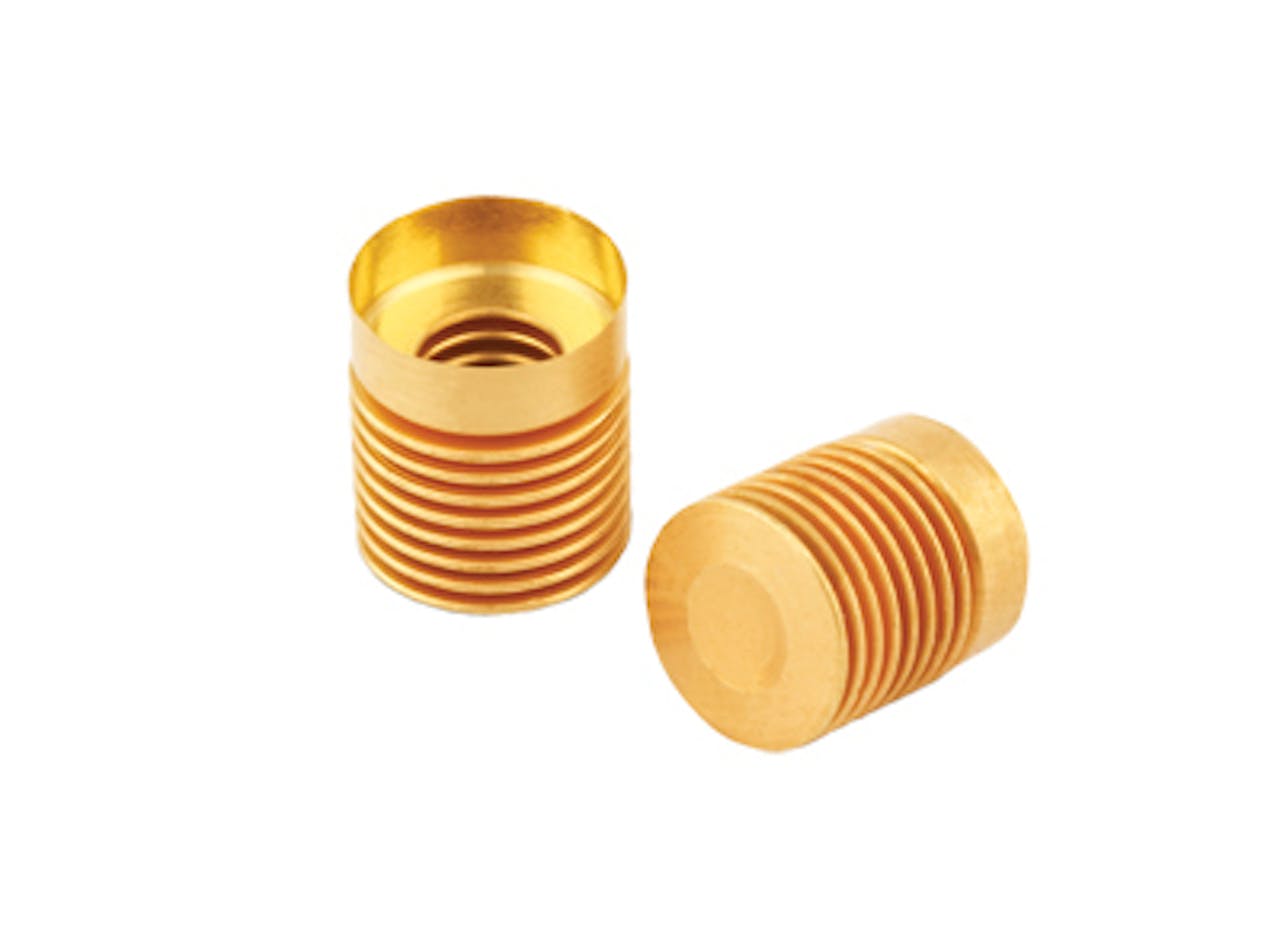

2156 - 0.114 Inch Bellows Electrical Contact

Inventory:
Estimated Lead Time

Bellows electrical contacts manufactured to provide flexible connections, with an overall length of 0.114 Inch, allowing for a stroke of 0.047 Inch, and coated in .00005" Gold.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Servometer
C 0.082 in
Display Name 2156
End Diameter 0.096 in
Finish .00005" Gold
Inside Diameter 0.047 in
Length L 0.114 in
Metallic Resistance 0.011
Minimum Force 2.4 oz
Outside Diameter 0.096 in
SKU 2156
Stroke 0.047 in
Total Coils 8
Specs (in metric)
Label Value
Brand Servometer
C 2.08 mm
Display Name 2156
End Diameter 2.44 mm
Finish .00005" Gold
Inside Diameter 1.19 mm
Length L 2.9 mm
Metallic Resistance 0.01
Minimum Force 68.04 g
Outside Diameter 2.44 mm
SKU 2156
Stroke 1.19 mm
Total Coils 8
