Servometer

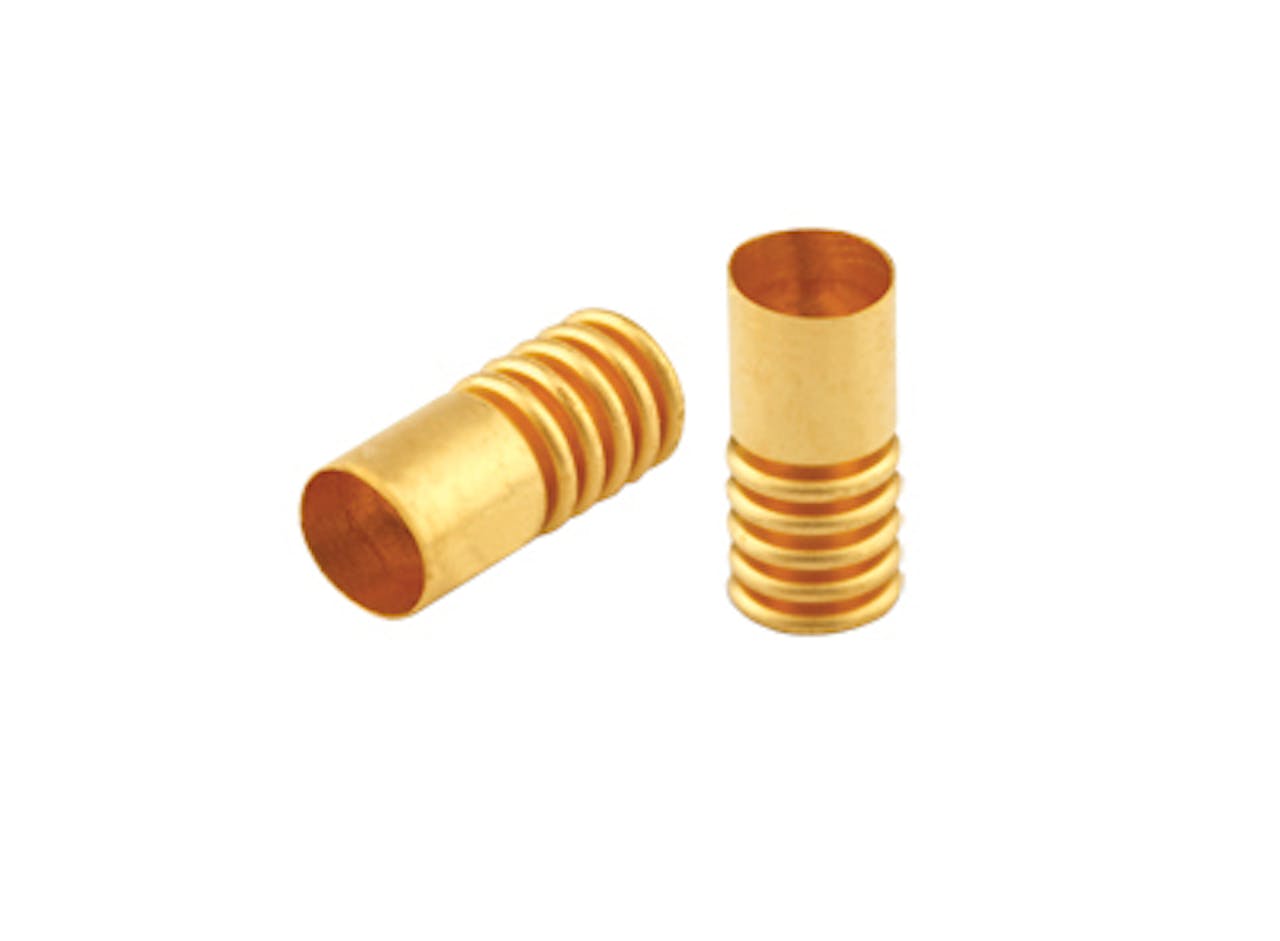

2510 - 0.08 Inch Bellows Electrical Contact

Inventory:
Estimated Lead Time

Bellows electrical contacts manufactured to provide flexible connections, with an overall length of 0.08 Inch, allowing for a stroke of 0.012 Inch, and coated in .00005" Gold.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Servometer
C 0.043 in
Display Name 2510
End Diameter 0.037 in
Finish .00005" Gold
Inside Diameter 0.02 in
Length L 0.08 in
Metallic Resistance 0.03
Minimum Force 0.22 oz
Outside Diameter 0.037 in
SKU 2510
Stroke 0.012 in
Total Coils 5
Specs (in metric)
Label Value
Brand Servometer
C 1.09 mm
Display Name 2510
End Diameter 0.94 mm
Finish .00005" Gold
Inside Diameter 0.51 mm
Length L 2.03 mm
Metallic Resistance 0.03
Minimum Force 6.24 g
Outside Diameter 0.94 mm
SKU 2510
Stroke 0.3 mm
Total Coils 5
