Servometer

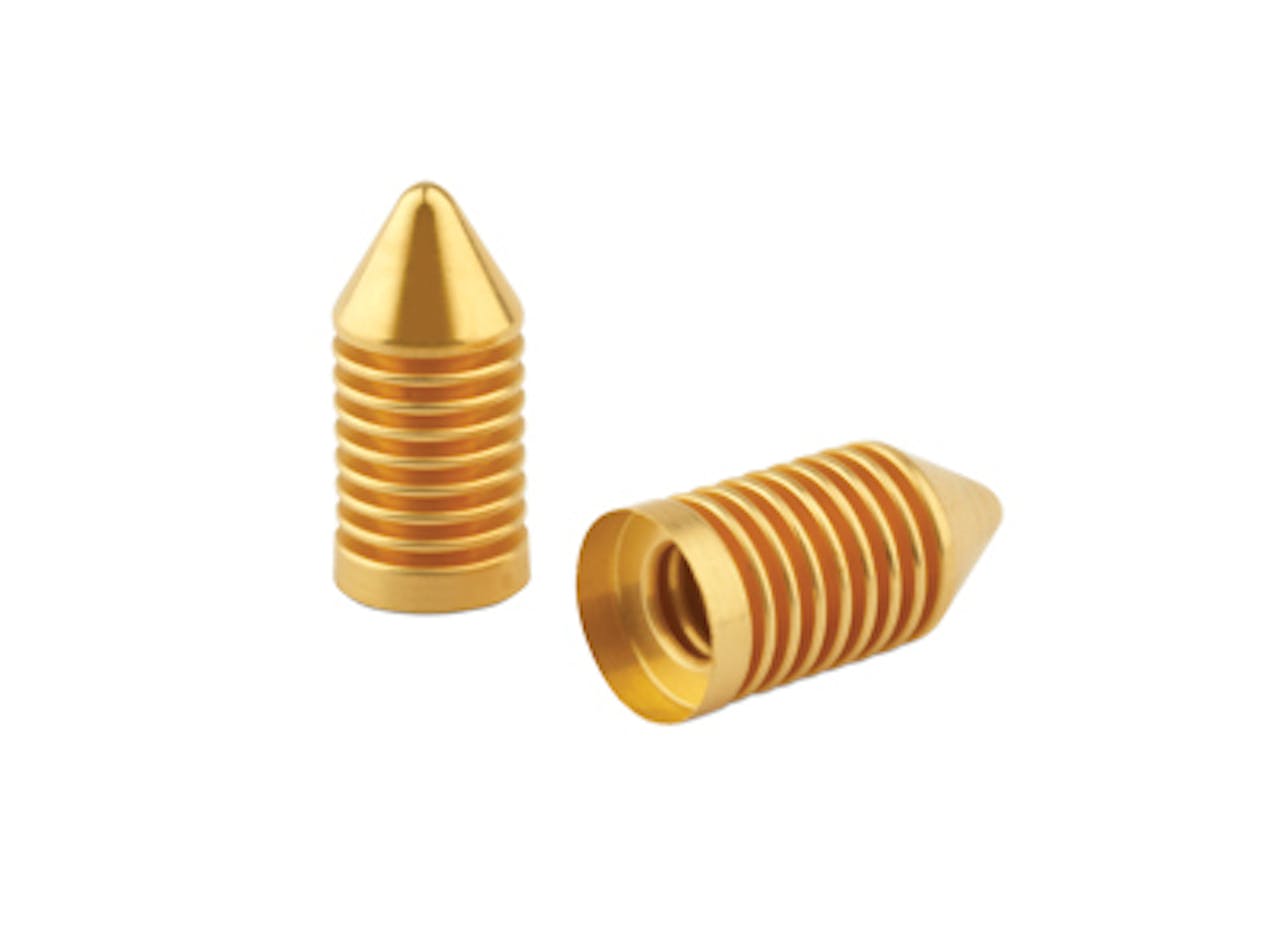

SK-18636 - 0.125 Inch OD Interconnecting Electrical Contact

Inventory:
Estimated Lead Time

Electrical contacts designed to interconnect and provide flexible connections, with an overall length of 0.271 Inch, allowing for a stroke of 0.037 Inch, and coated in .00005" Gold.

Download CAD
Unit System
Specs (in standard)
Label Value
Angular Misalignment 21 deg
Brand Servometer
C 0.144 in
Display Name SK-18636
End Type Male
Finish .00005" Gold
Length L 0.271 in
Metallic Resistance 0.02
Minimum Force 1.616 oz
Outside Diameter 0.125 in
Parallel Offset 0.01 in
SKU SK-18636
Stroke 0.037 in
Total Coils 8
Specs (in metric)
Label Value
Angular Misalignment 21 deg
Brand Servometer
C 3.66 mm
Display Name SK-18636
End Type Male
Finish .00005" Gold
Length L 6.88 mm
Metallic Resistance 0.02
Minimum Force 45.81 g
Outside Diameter 3.18 mm
Parallel Offset 0.25 mm
SKU SK-18636
Stroke 0.94 mm
Total Coils 8
